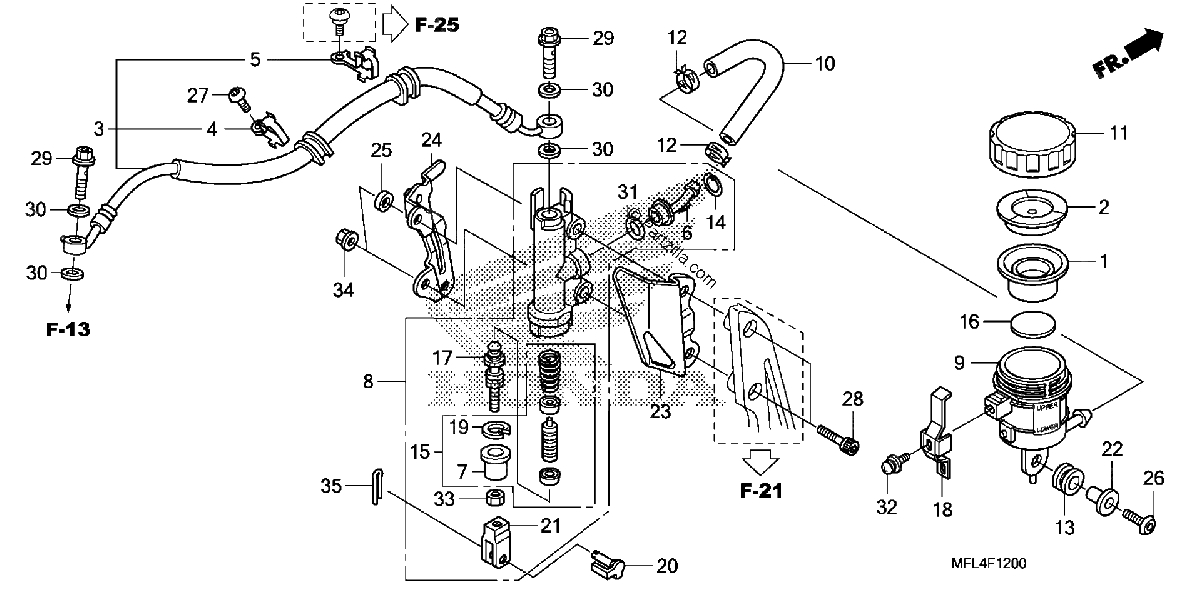

REAR BRAKE MASTER CYLINDER CBR1000RR
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
DIAPHRAGM
$16.21¢8 108
#2
PLATE, DIAPHRAGM
$12.54¢6 268
#3
HOSE, RR. BRAKE
$69.24¢34 621
#4
CLAMP, RR. BRAKE HOSE
$5.36¢2 680
#5
CLAMP, RR. BRAKE HOSE
$5.31¢2 657
#6
CONNECTOR, MASTER CYLINDER
$4.96¢2 478
#7
BOOT
$10.80¢5 399
#8
MASTER CYLINDER SUB-ASSY., RR. (COO) (NISSIN)
$219.21¢109 607
#8
MASTER CYLINDER SUB-ASSY., RR. (NISSIN)
$219.21¢109 607
#9
CUP, OIL
$24.92¢12 460
#10
HOSE, RR. MASTER CYLINDER
$13.12¢6 561
#11
CAP, OIL CUP
$47.13¢23 563
#12
CLAMP, MASTER CYLINDER OIL HOSE
$14.02¢7 009
#13
RUBBER, OIL CUP MOUNTING
$4.99¢2 496
#14
CIRCLIP, Rear MASTER CYLINDER
$4.25¢2 128
#15
PISTON SET, MASTER CYLINDER (NISSIN)
$49.67¢24 834
#16
FLOAT
$3.71¢1 857
#17
ROD, PUSH
$32.80¢16 399
#18
PLATE, STOP
$6.08¢3 042
#19
CIRCLIP
$2.30¢1 150
#20
PIN, BRAKE ROD
$15.71¢7 855
#21
JOINT, BRAKE ROD
$15.55¢7 774
#22
COLLAR (6.3X14)
$4.36¢2 179
#23
GUARD, R. STEP
$35.27¢17 635
#24
STAY, STEP HEAT GUARD
$13.63¢6 814
#25
COLLAR (6.5X11X3)
$3.36¢1 679
#26
BOLT, SPECIAL (6X25)
$2.64¢1 322
#27
SCREW, PAN (5X15)
$2.64¢1 322
#28
BOLT, SOCKET (6X32)
$2.51¢1 254
#29
BOLT, OIL (10X22)
$8.18¢4 088
#30
WASHER, OIL BOLT
$4.46¢2 231
#31
O-RING (14.8X2.4)
$3.04¢1 518
#32
SCREW-WASHER (4X12)
$1.59¢793
#32
SCREW-WASHER (4X12)
$1.59¢793
#33
NUT, HEX. (8MM)
$1.47¢736
#34
NUT, FLANGE (6MM)
$0.74¢368
#35
PIN, SPLIT (2.0X15)
$1.23¢615
