HANDLE LEVER SWITCH CABLE MIRROR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

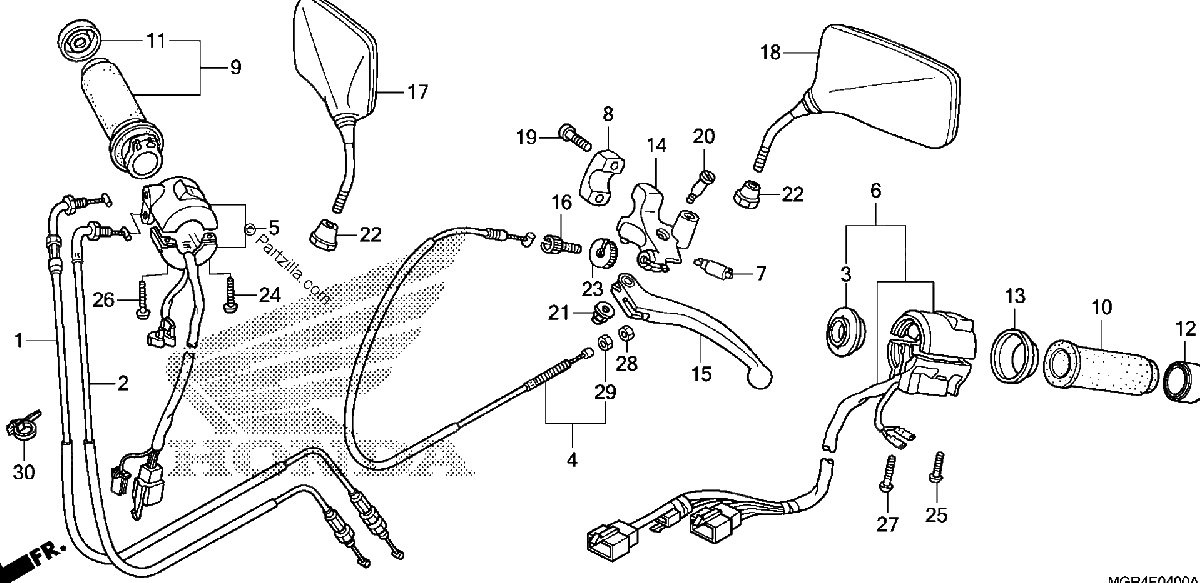

Diagrama de HANDLE LEVER SWITCH CABLE MIRROR

Repuestos

#1
17910-MGR-671
CABLE A, THROTTLE
$34.81¢17 406
1
#2
17920-MGR-671
CABLE B, THROTTLE
$40.94¢20 469
1
#3
17962-MR1-000
ADAPTER
$22.40¢11 200
1
#4
22870-MGR-671
CABLE, CLUTCH
$33.95¢16 975
1
#5
35130-MGR-671
SWITCH ASSY., STARTER ENGINE STOP
$160.71¢80 356
1
#6
35200-MGR-671
SWITCH ASSY., TURN SIGNAL
$182.21¢91 106
1
#7
35330-413-003
SWITCH, FR. LEVER (TOYO DENSO)
$25.44¢12 719
1
#8
45517-MEG-006
HOLDER, MASTER CYLINDER (NISSIN)
$13.38¢6 688
1
#9
53145-MCL-305
GRIP, R. HANDLE (COO)
$63.66¢31 831
1
#10
53166-MCL-305
GRIP, L. HANDLE (COO)
$34.24¢17 119
1
#11
53167-MCL-000
CAP, R. GRIP END
$10.00¢5 000
1
#12
53168-MCL-300
CAP, L. GRIP END
$10.00¢5 000
1
#13
53170-MCL-300
RING, GRIP
$8.95¢4 475
1
#14
53172-MEG-000
BRACKET, HANDLE LEVER
$36.85¢18 425
1
#15
53178-MFR-305
LEVER, L. HANDLEBAR (COO)
$22.65¢11 325
1
#16
53192-268-000
BOLT, WIRE ADJUSTING
$7.92¢3 963
1
#17
88210-MFY-305
MIRROR ASSY., R. BACK (COO)
No Disponible
1
#18
88220-MFY-305
MIRROR ASSY., L. BACK (COO)
No Disponible
1
#19
90101-MCL-000
BOLT, SOCKET (6X22)
$1.86¢931
1
#20
90113-438-000
BOLT, L HANDLEBAR LEVER PIVOT
$9.20¢4 600
1
#21
90201-415-000
NUT, CAP (6MM)
$2.76¢1 381
1
#22
90314-375-000
NUT, LOCK
$14.56¢7 281
1
#23
90321-MA6-750
NUT, FIXING
$12.13¢6 063
1
#24
93500-05020-0A
SCREW, PAN (5X20)
$1.01¢506
1
#25
93500-05022-0A
SCREW, PAN (5X22)
$0.86¢431
1
#26
93500-05025-0A
SCREW, PAN (5X25)
$1.21¢606
1
#27
93500-05032-0A
SCREW, PAN (5X32)
$1.41¢706
1
#28
94002-08070-0S
NUT, HEX. (8MM)
$1.68¢838
1
#29
94030-08070
NUT, HEX. (8MM)
$0.61¢306
1
#30
32161-GFL-J41
BAND, WIRE HARNESS
$2.38¢1 188
1
