UPPER COWL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

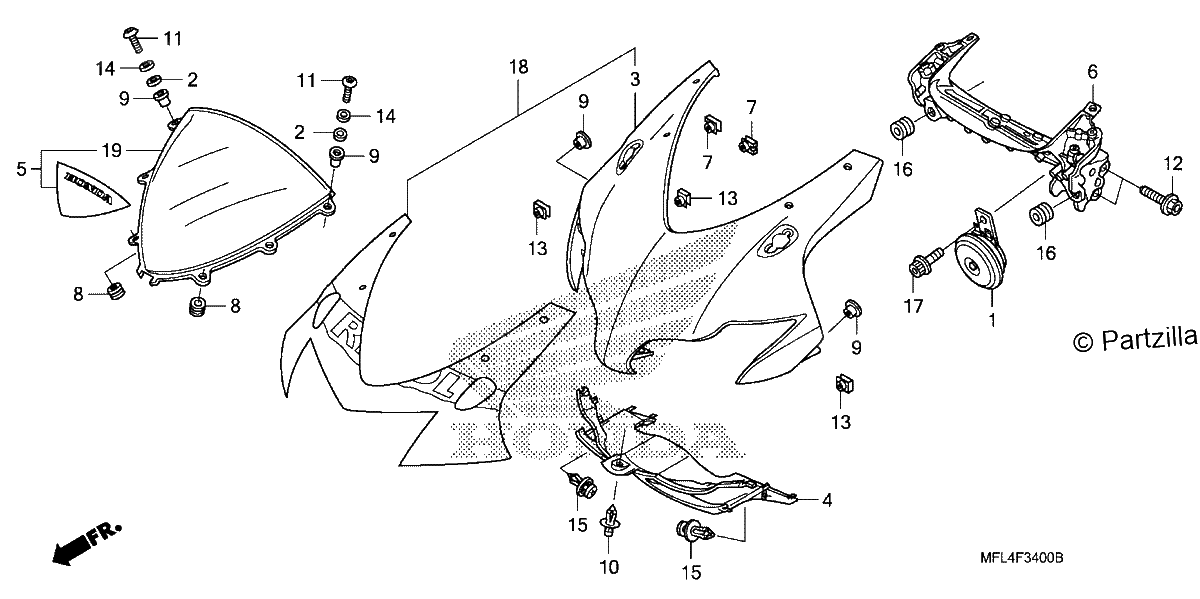

Diagrama de UPPER COWL

Repuestos

#001
38110-MFL-000
HORN (HIGH)
$71.28¢35 638
1
#001
38110-MFL-003
HORN (HIGH)
$71.28¢35 638
1
#002
64205-166-610
WASHER, SCREEN SETTING
$2.62¢1 311
1
#003
64211-MFL-010ZH
COWL (UPPER) R334 (VICTORY RED)
$500.96¢250 481
1
#004
64220-MFL-000
COVER, AIR IN.
$23.60¢11 799
1
#005
64250-MFL-305ZA
WINDSCREEN SET (TYPE1) (WL)(COO)
$243.62¢121 808
1
#006
64501-MFL-000
STAY A, COWL (UPPER)
$210.48¢105 242
1
#006
64501-MFL-010
STAY A, COWL (UPPER)
$210.48¢105 242
1
#006
64501-MFL-020
STAY A, COWL (UPPER)
$210.48¢105 242
1
#007
64521-MN5-000
NUT, CLIP (4MM)
$3.36¢1 679
1
#008
64535-MCJ-000
RUBBER, COWL (LOWER)
$3.09¢1 547
1
#009
90111-KW3-003
NUT, COWL SETTING (5MM)
$5.04¢2 519
1
#010
90116-MCS-G00
RIVET, PUSH
$1.64¢822
1
#011
90119-MFL-D20
BOLT, SPECIAL (5X16)
$2.74¢1 368
1
#012
90120-MEE-000
BOLT, FLANGE (8X28)
$2.75¢1 374
1
#013
90312-MT3-000
NUT, CLIP (5MM)
$5.11¢2 553
1
#014
90504-964-000
WASHER, THRUST (5MM)
$2.24¢1 121
1
#015
90683-GR1-003
CLIP, BODY COVER
$3.36¢1 679
1
#016
90852-898-000
RUBBER, CONTROL BOX
$4.50¢2 248
1
#017
92101-08014-0G
BOLT, HEX. (8X14)
$0.79¢397
1
