PEDAL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

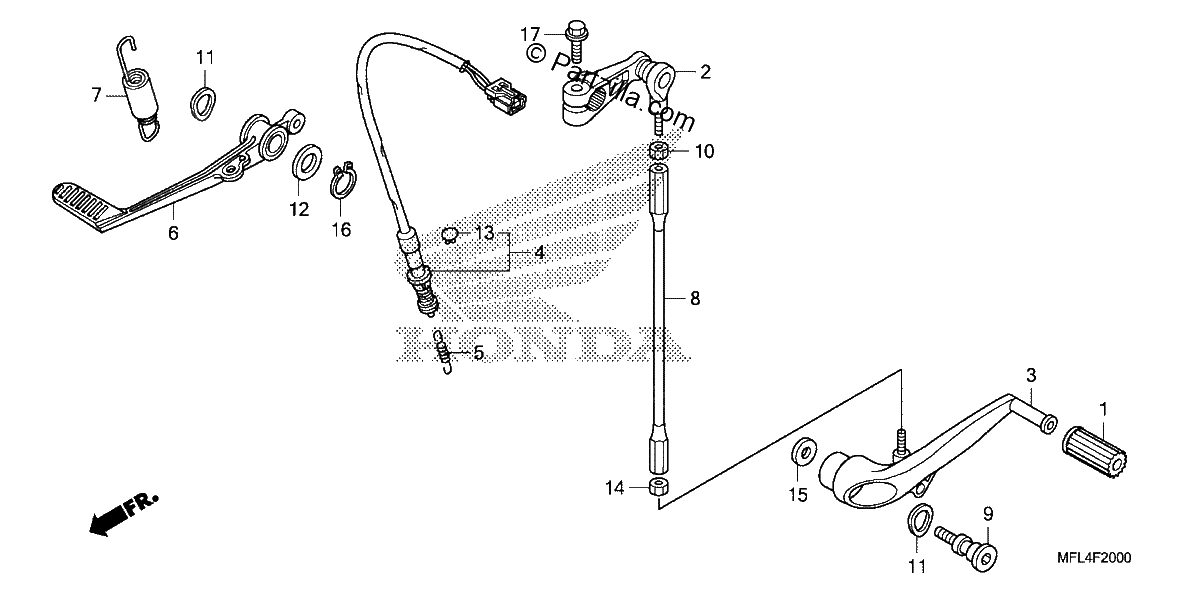

Diagrama de PEDAL

Repuestos

#001
24705-MR7-000
RUBBER, GEARSHIFT PEDAL
$4.56¢2 281
1
#002
24710-MFL-D20
ARM, GEARSHIFT
$86.13¢43 063
1
#003
24720-MFL-305
PEDAL, GEARSHIFT (COO)
$105.91¢52 956
1
#003
24720-MFL-D20
PEDAL, GEARSHIFT
$105.91¢52 956
1
#004
35350-MFL-000
SWITCH ASSY., RR. STOP
$50.54¢25 269
1
#004
35350-MFL-003
SWITCH ASSY., RR. STOP (TOYO)
$50.54¢25 269
1
#004
35350-MFL-D00
SWITCH Assembly., Rear STOP
$42.46¢21 231
1
#005
35357-MBR-000
SPRING, STOP SWITCH
$3.08¢1 538
1
#006
46500-MFL-305
PEDAL, RR. BRAKE (COO)
$150.64¢75 319
1
#006
46500-MFL-D20
PEDAL, Rear BRAKE
$150.64¢75 319
1
#007
46515-MBW-000
SPRING ASSY., BRAKE PEDAL
$8.51¢4 256
1
#008
90165-MFL-D20
BAR, CHANGE
$25.99¢12 994
1
#009
90113-MCF-000
BOLT, CHANGE PIVOT
$9.65¢4 825
1
#010
90201-700-000
NUT, GOVERNOR ARM FIXING (LEFT HAND THREAD)
$0.99¢494
1
#011
90505-MBW-000
WASHER, CHANGE PEDAL WAVE
$4.88¢2 438
1
#012
90557-230-000
WASHER (15.2X25)
$3.08¢1 538
1
#013
90601-KAF-003
CLIP, SWITCH COVER
$3.44¢1 719
1
#014
94001-06020-0S
NUT, HEX. (6MM)
$1.76¢881
1
#015
94103-08700
WASHER, PLAIN (8MM)
$1.21¢606
1
#016
94511-15000
CIRCLIP, OUTER (15MM)
$0.88¢438
1
#017
90112-MFL-D20
BOLT, FLANGE (6X20)
$3.14¢1 569
1
