FRONT FORK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

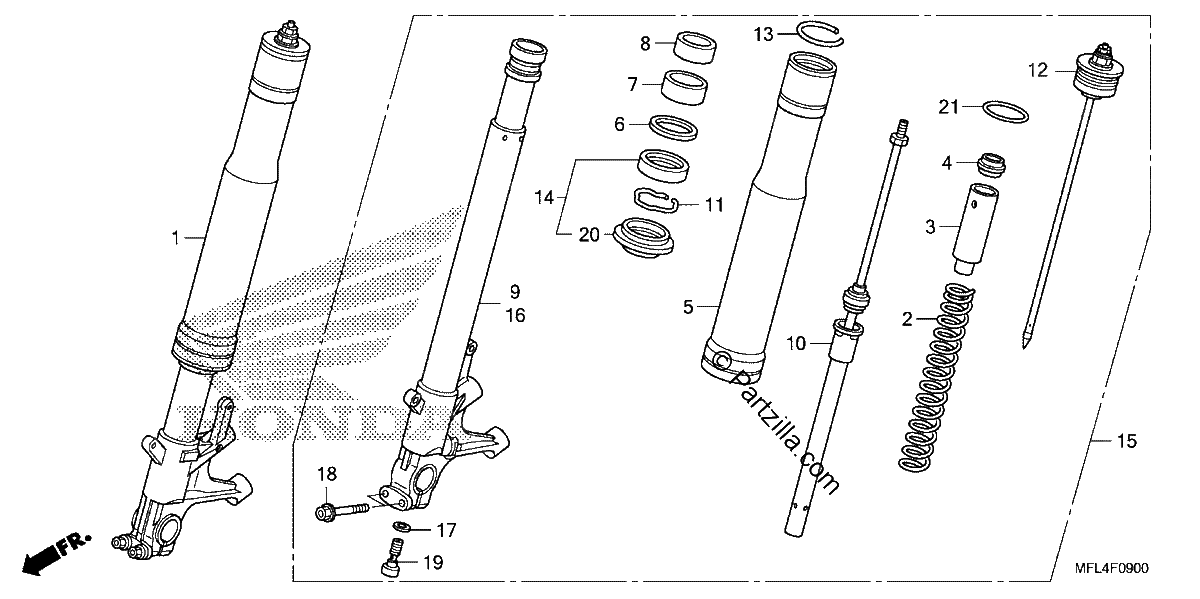

Diagrama de FRONT FORK

Repuestos

#001
51400-MFL-305
FORK ASSY., R. FR. (COO)
No Disponible
1
#001
51400-MFL-306
FORK Assembly., Right Front. (COO)
$1245.89¢622 944
1
#002
51401-MFL-003
SPRING, FR. FORK
$93.15¢46 575
1
#003
51403-MFJ-D01
COLLAR, SPRING
$12.22¢6 112
1
#004
51406-MW4-003
STOPPER, SPRING SEAT
$8.82¢4 410
1
#005
51410-MFL-003
TUBE (OUTER)
No Disponible
1
#006
51412-MEL-003
RING, BACK-UP
$6.24¢3 122
1
#007
51414-MFL-D21
BUSH, GUIDE
$8.96¢4 479
1
#008
51415-MFN-D01
BUSH, SLIDER
$32.92¢16 462
1
#009
51425-MFL-003
PIPE, R. SLIDE
$433.43¢216 717
1
#009
51425-MFL-D01
PIPE, Right SLIDE (NOT AVAILABLE)
No Disponible
1
#010
51430-MFL-D21
DAMPER, FR.
No Disponible
1
#010
51430-MFL-D31
DAMPER, Front.
$535.10¢267 548
1
#011
51447-KA4-711
RING, OIL SEAL STOPPER (SHOWA)
$5.04¢2 519
1
#012
51450-MFL-003
BOLT, FR. FORK
$98.35¢49 174
1
#013
51455-MW4-003
RING, STOPPER
$13.12¢6 561
1
#014
51490-MFL-003
SEAL SET, FR. FORK
$21.36¢10 678
1
#015
51500-MFL-305
FORK ASSY., L. FR. (COO)
No Disponible
1
#015
51500-MFL-306
FORK Assembly., L Front. (COO)
$1245.89¢622 944
1
#016
51525-MFL-003
PIPE, L. SLIDE
No Disponible
1
#016
51525-MFL-701
PIPE, L SLIDE (NOT AVAILABLE)
No Disponible
1
#017
52442-KA3-711
WASHER, SPECIAL (10MM)
$2.85¢1 426
1
#018
90109-MR7-000
BOLT, FLANGE (8X45)
$5.51¢2 754
1
#019
90126-MR7-003
BOLT, SOCKET (10X35)
$17.50¢8 752
1
#020
91254-MEJ-003
DUST SEAL
$13.80¢6 900
1
#020
91254-MEJ-013
DUST SEAL
$13.80¢6 900
1
#021
91258-GF4-003
O-RING (42.2X2.4)
$6.59¢3 295
1
