HANDLE LEVER SWITCH CABLE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

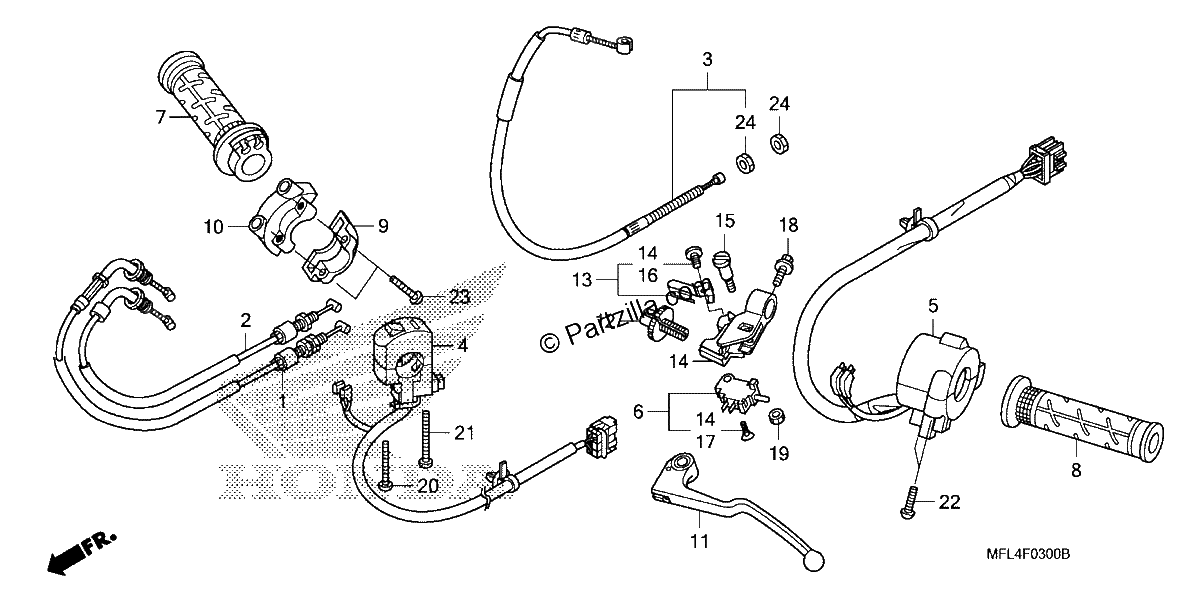

Diagrama de HANDLE LEVER SWITCH CABLE

Repuestos

#001
17910-MFL-000
CABLE A, THROTTLE
$27.67¢13 834
1
#002
17920-MFL-000
CABLE B, THROTTLE
$27.67¢13 834
1
#003
22870-MFL-000
CABLE, CLUTCH
$24.48¢12 242
1
#004
35130-MFL-000
SWITCH ASSY., ENGINE STOP
$61.03¢30 515
1
#005
35200-MFL-670
SWITCH ASSY., TURN SIGNAL
$127.79¢63 894
1
#005
35200-MFL-671
SWITCH ASSY., TURN SIGNAL
$127.79¢63 894
1
#006
35335-MCJ-751
SWITCH SET, CLUTCH
$15.24¢7 619
1
#007
53140-MCF-000
GRIP Assembly., THROTTLE
$36.95¢18 475
1
#007
53140-MCF-305
GRIP ASSY., THROTTLE (COO)
$36.95¢18 475
1
#008
53166-MGF-305
GRIP, L. HANDLE (COO)
$22.85¢11 425
1
#008
53166-MY9-305
GRIP, L. HANDLE (COO)
$19.43¢9 717
1
#008
53166-MY9-890
GRIP, L. HANDLE
$19.43¢9 717
1
#009
53167-MV4-000
HOUSING, THROTTLE (UPPER)
$40.03¢20 016
1
#010
53168-MV4-000
HOUSING, THROTTLE (LOWER)
$43.78¢21 890
1
#011
53182-MCJ-305
LEVER, L. HANDLE (COO)
$25.60¢12 800
1
#011
53182-MCJ-750
LEVER, L HANDLE
$25.60¢12 800
1
#012
53183-MCJ-750
BOLT, CABLE ADJUSTING
$9.14¢4 571
1
#013
53190-MCJ-751
SPRING SET, CLUTCH LEVER
$4.92¢2 461
1
#014
53195-MCJ-751
BRACKET SET, CLUTCH LEVER
$27.45¢13 725
1
#015
90122-MCJ-750
BOLT, LEVER PIVOT
$5.36¢2 680
1
#016
90123-MCJ-751
SCREW, PAN (4X10)
$1.09¢546
1
#017
90124-MCJ-752
SCREW, FLAT (3X16)
$0.74¢368
1
#018
90126-MCJ-750
BOLT, FLANGE (6X20)
$2.22¢1 110
1
#019
90301-MCJ-750
NUT, U (6MM)
$2.68¢1 340
1
#020
93500-04032-0G
SCREW, PAN (4X32)
$0.56¢282
1
#021
93500-04045-0G
SCREW, PAN (4X45)
$1.02¢512
1
#022
93500-05020-0G
SCREW, PAN (5X20)
$0.93¢466
1
#023
93500-05022-0G
SCREW, PAN (5X22)
$1.09¢546
1
#024
94002-08000-0S
NUT, HEX. (8MM)
$1.47¢736
1
