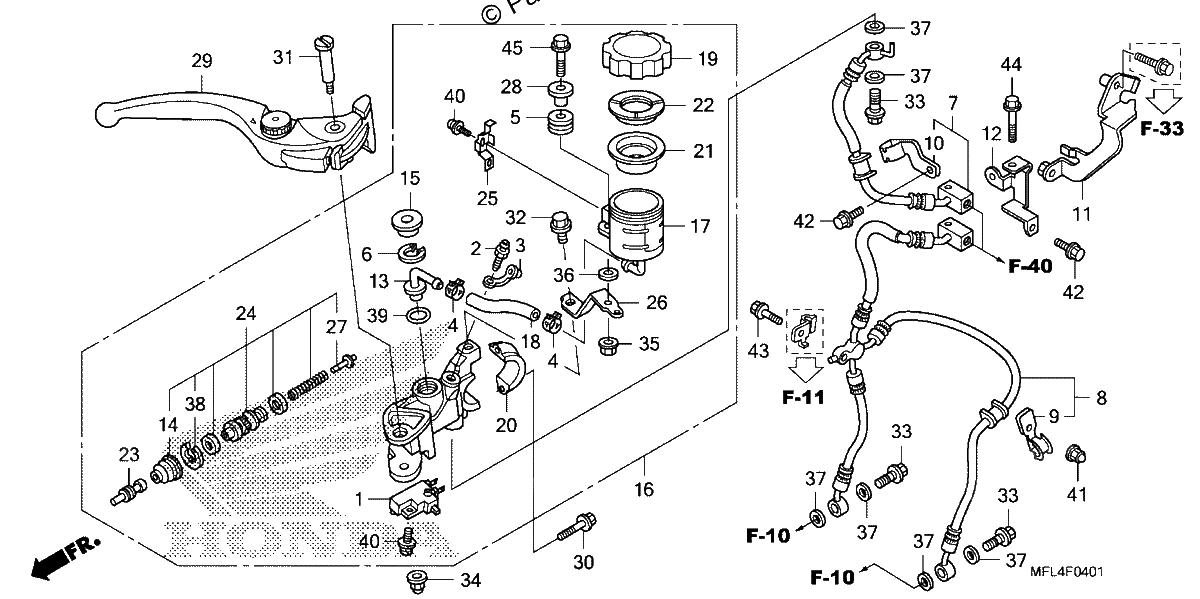

FRONT BRAKE MASTER CYLINDER CBR1000RA
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
SWITCH ASSY., FR. STOP
$16.25¢8 125
#002
SCREW, BLEEDER (NISSIN)
$8.85¢4 427
#003
CAP, BLEEDER
$5.63¢2 818
#004
CLAMP, MASTER CYLINDER OIL HOSE
$14.02¢7 009
#005
RUBBER, OIL CUP
$5.51¢2 754
#006
CIRCLIP, Rear MASTER CYLINDER
$4.25¢2 128
#007
HOSE A, Front BRAKE
$63.16¢31 579
#008
HOSE B, FR. BRAKE
$153.33¢76 665
#009
CLAMP A, FR. BRAKE HOSE
$4.31¢2 156
#010
CLAMP B, FR. BRAKE HOSE
$6.67¢3 335
#011
STAY A, FR. BRAKE HOSE
$18.48¢9 240
#012
STAY B, FR. BRAKE HOSE
$9.54¢4 773
#013
CONNECTOR, MASTER CYLINDER
$10.11¢5 054
#014
BOOT
$14.06¢7 032
#015
COVER, DUST
$4.63¢2 317
#016
MASTER CYLINDER SUB-ASSY., FR. BRAKE (NISSIN)
$318.79¢159 396
#017
CUP, OIL
$10.58¢5 290
#018
HOSE, MASTER CYLINDER OIL
$6.00¢3 001
#019
CAP, OIL CUP
$19.68¢9 838
#020
HOLDER, MASTER CYLINDER
$12.68¢6 342
#021
DIAPHRAGM
$9.74¢4 870
#022
PLATE, DIAPHRAGM
$4.52¢2 260
#023
ROD, PUSH
$15.69¢7 843
#024
MASTER CYLINDER SET
$57.42¢28 710
#025
PLATE, STOP
$6.08¢3 042
#026
STAY, FR. MASTER CYLINDER
$7.41¢3 703
#027
GUIDE, SPRING
$5.26¢2 628
#028
COLLAR (6.3X13)
$5.40¢2 702
#029
LEVER ASSY., R. HANDLE
$54.39¢27 197
#030
BOLT, FLANGE (6X22)
$1.70¢851
#031
BOLT, HANDLE LEVER
$6.49¢3 243
#032
BOLT, FLANGE (6X12)
$3.53¢1 765
#033
BOLT, OIL (10X22)
$8.18¢4 088
#034
NUT, CAP (6MM)
$2.54¢1 271
#035
NUT, U (6MM)
$7.72¢3 858
#036
WASHER (6X16)
$1.56¢782
#037
WASHER, OIL BOLT
$4.46¢2 231
#038
CIRCLIP
$2.68¢1 340
#039
O-RING (14.8X2.4)
$3.04¢1 518
#040
SCREW-WASHER (4X12)
$1.59¢793
#040
SCREW-WASHER (4X12)
$1.59¢793
#041
NUT, CAP (6MM)
$1.83¢914
#042
BOLT, FLANGE (6X12)
$2.13¢1 064
#043
BOLT, FLANGE (6X18)
$1.49¢747
#044
BOLT, FLANGE (6X35)
$2.56¢1 282
#045
BOLT, FLANGE (6X28)
$2.13¢1 064
