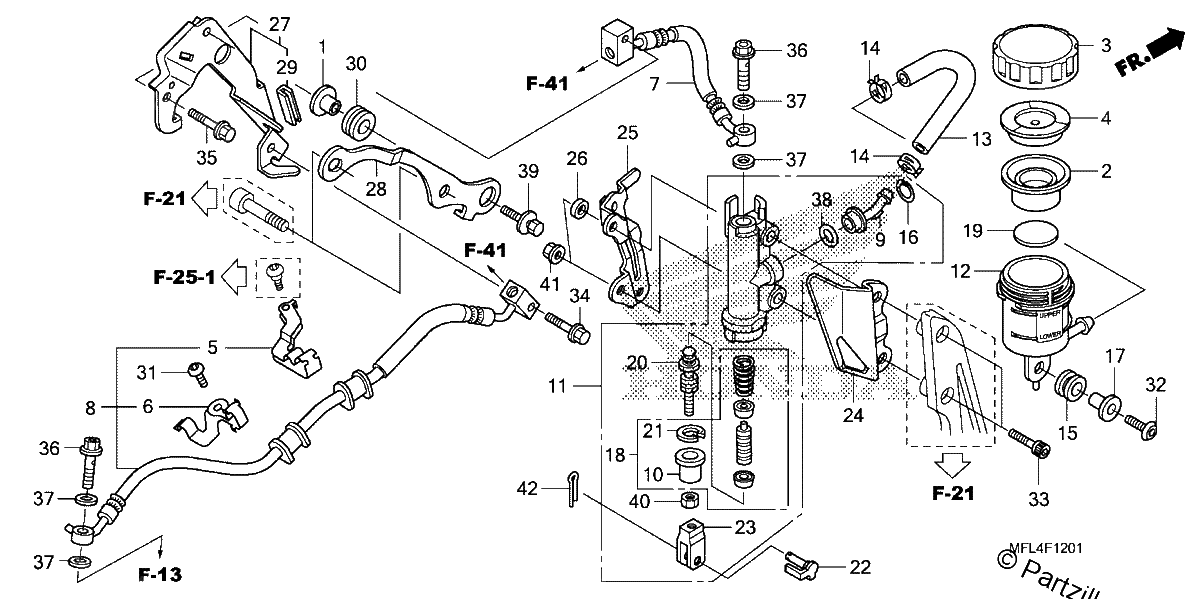

REAR BRAKE MASTER CYLINDER CBR1000RA
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
COLLAR, FUEL TANK SETTING
$8.14¢4 069
#002
DIAPHRAGM
$17.63¢8 813
#003
CAP, OIL CUP
$51.22¢25 612
#004
PLATE, DIAPHRAGM
$13.63¢6 813
#005
CLAMP, RR. BRAKE HOSE
$11.38¢5 688
#006
CLAMP B, RR. BRAKE HOSE
$4.97¢2 488
#007
HOSE A, RR. BRAKE
$50.65¢25 325
#008
HOSE B, RR. BRAKE
$78.61¢39 306
#009
CONNECTOR, MASTER CYLINDER
$5.39¢2 694
#010
BOOT
$11.74¢5 869
#011
MASTER CYLINDER SUB-ASSY., RR. (NISSIN)
$238.28¢119 138
#012
CUP, OIL
$26.92¢13 462
#013
HOSE, RR. MASTER CYLINDER
$14.26¢7 131
#014
CLAMP, MASTER CYLINDER OIL HOSE
$15.24¢7 619
#015
RUBBER, OIL CUP MOUNTING
$5.42¢2 713
#016
CIRCLIP, Rear MASTER CYLINDER
$4.63¢2 313
#017
COLLAR (6.3X14)
$4.74¢2 369
#018
PISTON SET, MASTER CYLINDER (NISSIN)
$53.99¢26 994
#019
FLOAT
$4.04¢2 019
#020
ROD, PUSH
$35.65¢17 825
#021
CIRCLIP
$2.50¢1 250
#022
PIN, BRAKE ROD
$17.07¢8 538
#023
JOINT, BRAKE ROD
$16.90¢8 450
#024
GUARD, R. STEP
$38.34¢19 169
#025
STAY, STEP HEAT GUARD
$14.81¢7 406
#026
COLLAR (6.5X11X3)
$3.65¢1 825
#027
STAY A, RR. BRAKE PIPE
$18.95¢9 475
#028
STAY B, RR. BRAKE PIPE
$6.03¢3 013
#029
RUBBER, PROTECTOR
$2.24¢1 119
#030
RUBBER, RR. FENDER CUSHION
$2.63¢1 313
#031
SCREW, PAN (5X15)
$2.88¢1 438
#032
BOLT, SPECIAL (6X25)
$2.88¢1 438
#033
BOLT, SOCKET (6X32)
$2.73¢1 363
#034
BOLT, FLANGE (6X25)
$3.21¢1 606
#035
BOLT, FLANGE (6X20)
$2.99¢1 494
#036
BOLT, OIL (10X22)
$8.89¢4 444
#037
WASHER, OIL BOLT
$4.85¢2 425
#038
O-RING (14.8X2.4)
$3.30¢1 650
#039
BOLT-WASHER (6X20)
$2.09¢1 044
#040
NUT, HEX. (8MM)
$1.60¢800
#041
NUT, FLANGE (6MM)
$0.80¢400
#042
PIN, SPLIT (2.0X15)
$1.34¢669
