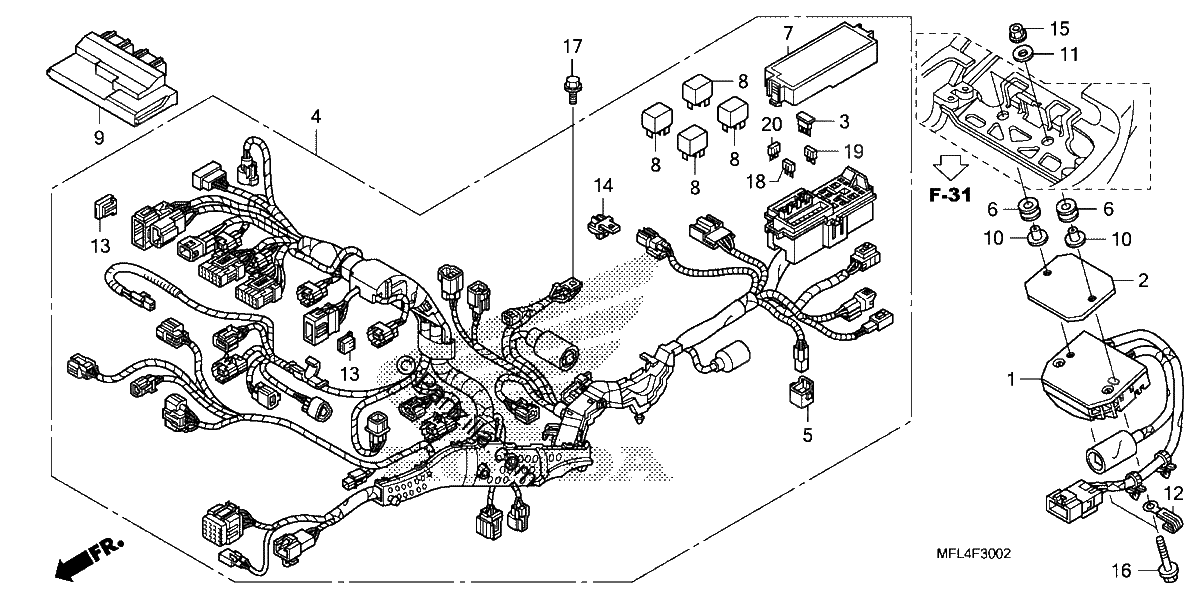

WIRE HARNESS CBR1000RA
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
RECTIFIER ASSY., REGULATOR
$438.54¢219 270
#002
SPACER, REGULATOR RECTIFIER
$12.80¢6 400
#003
DIODE ASSY., THREE WAY (SUMITOMO)
$11.63¢5 813
#004
WIRE HARNESS
$1346.29¢673 147
#005
CAP, DUMMY (4P) (RED)
$5.36¢2 680
#006
GROMMET A, TUBE
$6.87¢3 433
#007
COVER (UPPER)
$11.99¢5 997
#008
RELAY ASSY., POWER (MICRO ISO 4P)
$5.19¢2 593
#008
RELAY, POWER (MICRO ISO 4P)
$5.19¢2 593
#009
PGM-FI UNIT
No Disponible
#010
COLLAR, RR. EX. PROTECTOR
$5.69¢2 846
#011
WASHER (18MM)
$2.21¢1 104
#011
WASHER, SPECIAL (6MM)
$2.21¢1 104
#011
WASHER (18MM)
$2.21¢1 104
#012
CLIP (2X70)
$9.95¢4 974
#013
HOLDER, BRACKET (RED)
$9.26¢4 629
#014
CLIP, CONNECTOR (DARK GREEN)
$4.30¢2 151
#015
NUT, FLANGE (6MM)
$0.74¢368
#016
BOLT, FLANGE (6X35)
$2.22¢1 110
#017
BOLT, FLANGE (6X12)
$1.12¢558
#018
FUSE, MINI (10A)
$1.56¢782
#019
FUSE, MINI (20A)
$1.37¢684
#020
FUSE, MINI (30A)
$1.98¢989
