RIGHT CRANKCASE COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

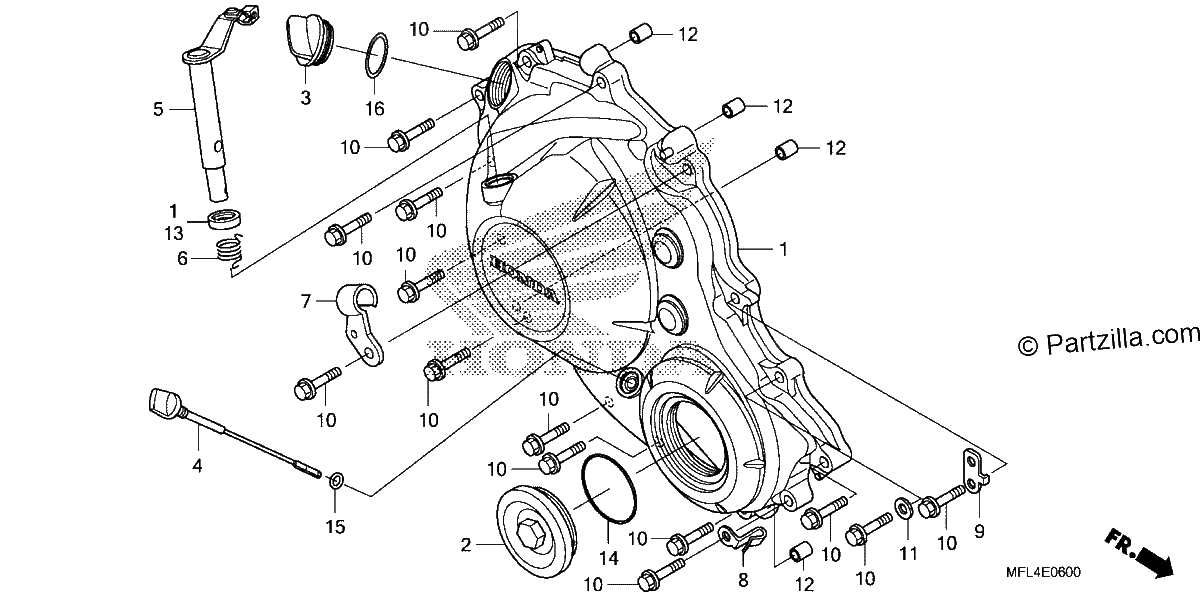

Diagrama de RIGHT CRANKCASE COVER

Repuestos

#001
11330-MFL-670
COVER, R. CRANKCASE
$301.82¢150 913
1
#002
11332-MFL-670
CAP (45MM)
$26.64¢13 319
1
#003
15611-KA4-710
CAP, OIL FILLER
$16.71¢8 356
1
#004
15650-MFL-000
DIPSTICK, OIL
$23.01¢11 506
1
#005
22810-MFL-000
LEVER, CLUTCH
$71.35¢35 675
1
#005
22810-MFL-950
LEVER, CLUTCH
$74.78¢37 388
1
#006
22815-MFL-000
SPRING, CLUTCH LEVER
$3.65¢1 825
1
#007
22821-MFL-000
RECEIVER, CLUTCH CABLE
$6.25¢3 125
1
#007
22821-MFL-950
RECEIVER, CLUTCH CABLE
$6.74¢3 369
1
#008
32114-MFG-D00
GUIDE, OIL PRESSURE SWITCH WIRE
$8.44¢4 219
1
#009
32157-MFJ-D00
STAY, HARNESS CLIP
$4.01¢2 006
1
#010
90006-GHB-680
BOLT, FLANGE (6X28) (NSHF)
$2.63¢1 313
1
#011
90442-035-000
WASHER, SEALING (6MM)
$2.85¢1 425
1
#012
90701-MV9-670
PIN, DOWEL (10X16)
$5.21¢2 606
1
#013
91204-KK0-003
OIL SEAL (12X18X5) (ARAI)
$6.13¢3 063
1
#014
91301-ML7-003
O-RING (48.1X3.6) (ARAI)
$4.76¢2 381
1
#015
91303-MJ0-003
O-RING (6.3X2.3) (ARAI)
$4.91¢2 456
1
#016
91307-KF0-003
O-RING (18X3) (ARAI)
$3.65¢1 825
1
