GEAR CHANGE MECHANISM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

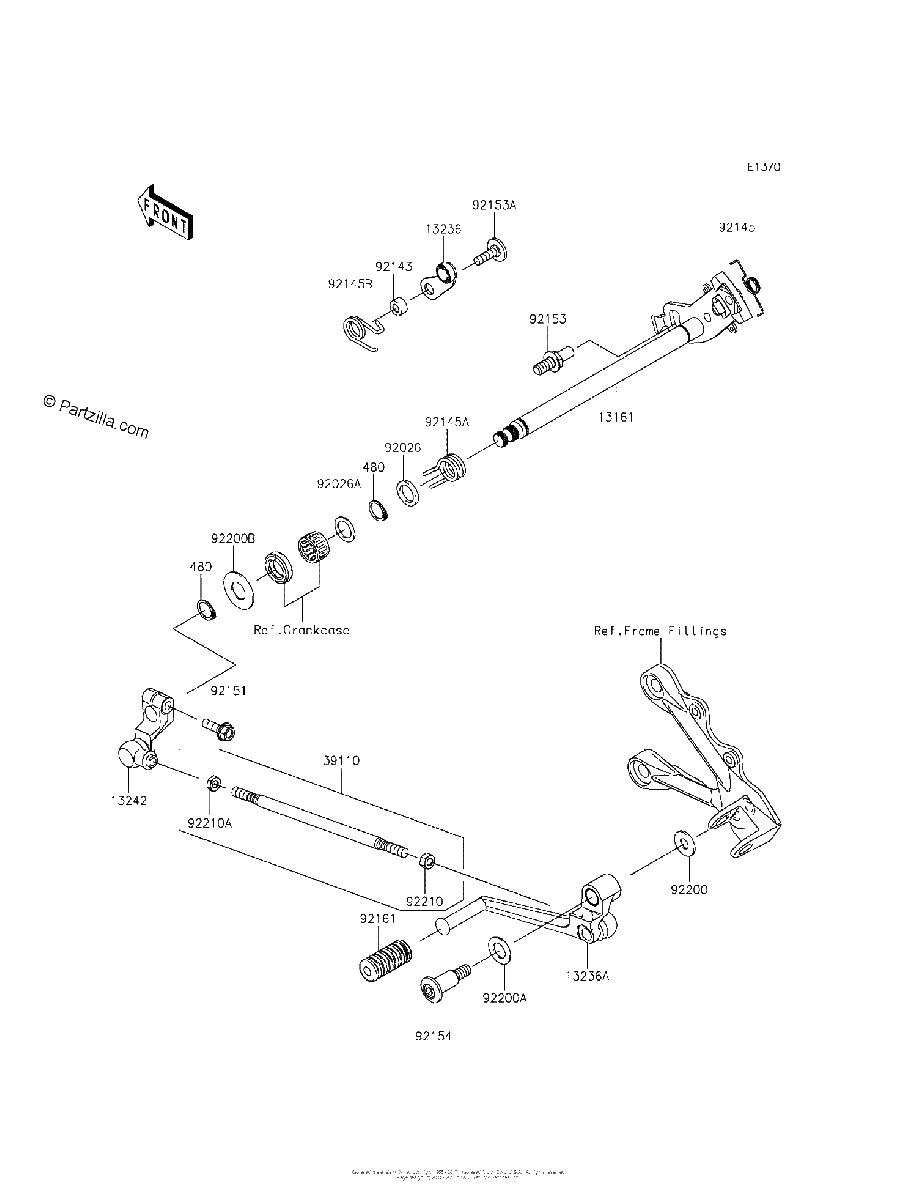

Diagrama de GEAR CHANGE MECHANISM

Repuestos

#480
480J1400
CIRCLIP-TYPE-C,14MM
$4.57¢2 283
1
#13161
13161-0054
LEVER COMP CHANGE SHAFT
$98.99¢49 496
1
#13236
13236-0114
LEVER-COMP,POSITION
$13.45¢6 727
1
#13236A
13236-0723
LEVER COMP,CHANGE PEDAL
$123.67¢61 835
1
#13242
13242-0093
LEVER Assembly CHANGE
$58.99¢29 497
1
#39110
39110-0021
ROD Assembly TIE
$24.71¢12 357
1
#92026A
92026-1534
SPACER,14X20X1.0
$4.14¢2 070
1
#92026
92026-0107
SPACER,14X20X2.3
$5.04¢2 519
1
#92143
92143-1595
COLLAR
$9.92¢4 962
1
#92145B
92145-0717
SPRING,DRUM POSITION
$4.85¢2 427
1
#92145A
92145-0415
SPRING,RETURN
$12.19¢6 095
1
#92145
92145-0414
SPRING
$9.67¢4 836
1
#92151
92151-1226
BOLT,FLANGED,6X20
$2.10¢1 052
1
#92153A
92153-1505
BOLT,6X20
$8.20¢4 100
1
#92153
92153-0421
BOLT,RETURN SPRING
$9.49¢4 744
1
#92154
92154-0109
BOLT,SOCKET,8X37
$10.04¢5 020
1
#92161
92161-1300
DAMPER,CHANGE PEDAL
$5.57¢2 783
1
#92200B
92200-0265
WASHER
$2.22¢1 110
1
#92200A
92200-0199
WASHER,12.5X22X1.2
$2.77¢1 386
1
#92200
92200-0198
WASHER,8.5X20X1.5
$2.77¢1 386
1
#92210
92210-1100
NUT,6MM
$2.01¢1 006
1
#92210A
92210-1101
NUT,LEFT HANDED,6MM
$1.44¢719
1
