UPPER COWL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

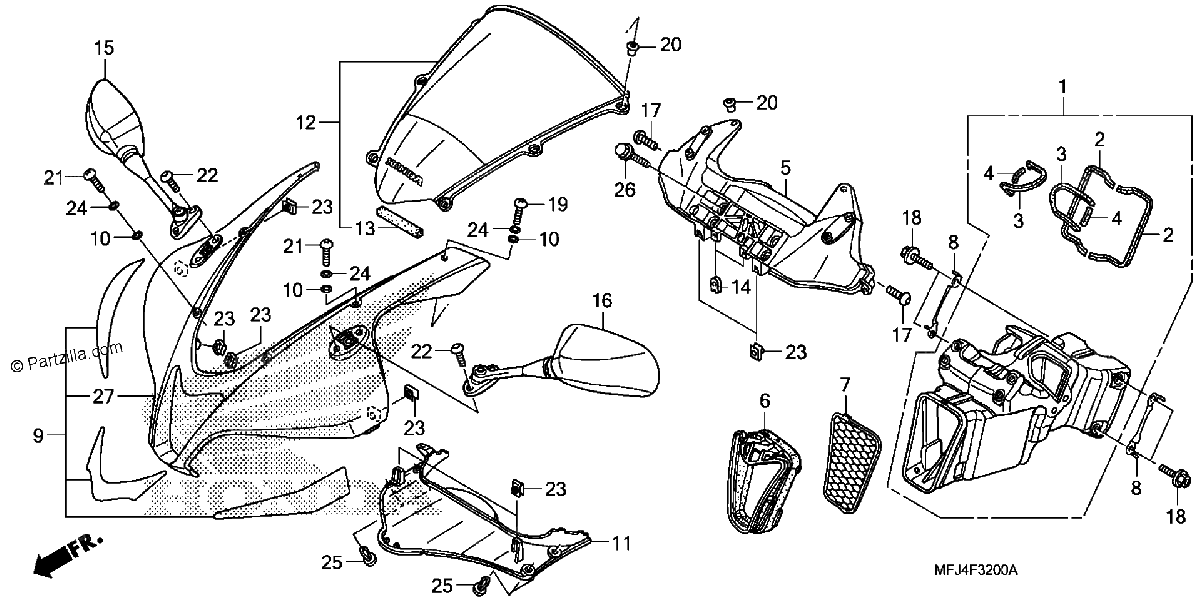

Diagrama de UPPER COWL

Repuestos

#1
17300-MFJ-A00
DUCT, AIR IN.
$219.76¢109 881
1
#2
17311-MFJ-D00
SEAL A, AIR IN. DUCT
$3.50¢1 750
1
#3
17313-MFJ-D00
SEAL C, AIR IN. DUCT
$2.56¢1 281
1
#4
17314-MFJ-D00
SEAL D, AIR IN. DUCT
$1.50¢750
1
#5
17340-MFJ-A40
STAY, MIRROR METER
$120.29¢60 144
1
#6
17370-MFJ-D01
ATTACHMENT, DUCT
$19.86¢9 931
1
#7
17380-MFJ-D00
GRILL, AIR IN. DUCT
$23.56¢11 781
1
#8
17390-MFJ-D00
WASHER, TONGUED
$4.34¢2 169
1
#10
64205-166-610
WASHER, SCREEN SETTING
$2.85¢1 425
1
#11
64220-MFJ-D00
SPOILER, FR.
$10.19¢5 094
1
#12
64250-MFJ-D00ZA
WINDSCREEN SET (TYPE1) (WL)
$274.36¢137 181
1
#12
64250-MFJ-305ZA
WINDSCREEN SET (TYPE1) (WL)(COO)
$274.36¢137 181
1
#13
64251-MFJ-D00
SEAL, SPONGE
$2.54¢1 269
1
#14
64521-MN5-000
NUT, CLIP (4MM)
$3.65¢1 825
1
#15
88110-MEL-305
MIRROR ASSY., R. BACK (COO)
$114.57¢57 287
1
#16
88120-MEL-305
MIRROR ASSY., L. BACK (COO)
$97.40¢48 700
1
#17
90085-MZ1-000
BOLT, SPECIAL (6X17)
$4.44¢2 219
1
#18
90102-MN1-670
BOLT, FLANGE (6X20)
$3.65¢1 825
1
#19
90109-MCJ-750
SCREW, TRUSS (5X15)
$2.64¢1 319
1
#20
90111-KW3-003
NUT, COWL SETTING (5MM)
$5.47¢2 738
1
#21
90111-MEL-000
SCREW, TRUSS (5X18)
$2.79¢1 394
1
#22
90130-MEE-000
BOLT, SOCKET (6X13)
$2.44¢1 219
1
#23
90312-MT3-000
NUT, CLIP (5MM)
$5.55¢2 775
1
#24
90504-964-000
WASHER, THRUST (5MM)
$2.44¢1 219
1
#25
90683-GR1-003
CLIP, BODY COVER
$3.65¢1 825
1
#26
96001-06016-00
BOLT, FLANGE (6X16)
$1.35¢675
1
#27
64211-MFJ-D00ZA
COWL (UPPER) *NHB01* (GRAPHITE BLACK) (NA USE ALT:64100-MFJ-D00ZE)
No Disponible
1
