HANDLE LEVER SWITCH CABLE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

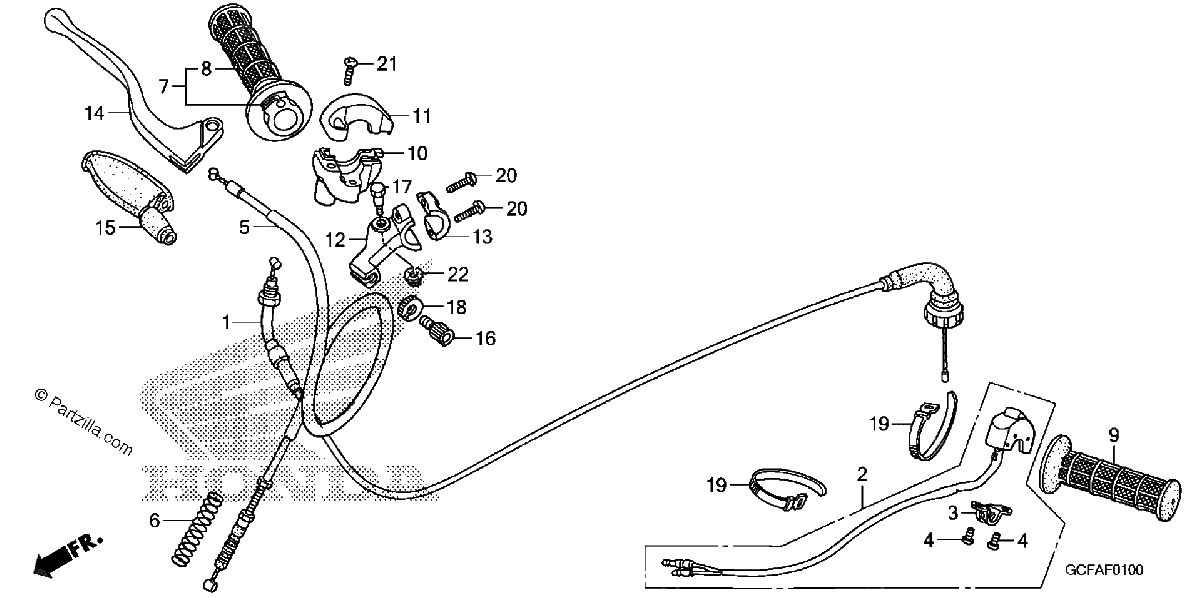

Diagrama de HANDLE LEVER SWITCH CABLE

Repuestos

#1
17920-GCF-315
CABLE SET, THROTTLE
$53.47¢26 737
1
#1
17920-GCF-325
CABLE SET, THROTTLE
$53.47¢26 737
1
#2
35130-GCF-A30
SWITCH ASSY., STOP
$46.72¢23 362
1
#3
35132-KR5-013
PLATE, SETTING
$5.92¢2 961
1
#4
35133-KJ2-003
SCREW, PAN (4X12)
$2.83¢1 414
1
#5
45450-GCF-920
CABLE, FR. BRAKE
$31.84¢15 922
1
#6
45454-KN4-A60
SPRING, BRAKE CABLE
$5.16¢2 582
1
#7
53140-126-771
GRIP ASSY., THROTTLE
$28.78¢14 392
1
#7
53140-GCF-305
GRIP ASSY., THROTTLE (COO)
$28.78¢14 392
1
#8
53165-181-000
RUBBER, R. GRIP
$13.20¢6 601
1
#8
53165-GCF-305
RUBBER, R. GRIP (COO)
$13.20¢6 601
1
#9
53166-181-000
RUBBER, L. GRIP
$13.20¢6 601
1
#9
53166-GCF-305
RUBBER, L. GRIP (COO)
$13.20¢6 601
1
#10
53167-GN2-020
HOUSING, THROTTLE (LOWER)
$21.03¢10 517
1
#11
53168-GN2-020
HOUSING, THROTTLE (UPPER)
$21.03¢10 517
1
#12
53171-GCF-A20
BRACKET, R. HANDLE LEVER
$40.32¢20 160
1
#13
53173-958-000
HOLDER, LEVER BRACKET
$11.30¢5 652
1
#14
53175-GCF-A20
LEVER, R. HANDLEBAR
$41.19¢20 597
1
#15
53176-428-010
COVER, R. HANDLE LEVER
$10.80¢5 399
1
#16
53192-268-000
BOLT, WIRE ADJUSTING
$7.29¢3 645
1
#17
90113-429-770
BOLT, HANDLE LEVER PIVOT
$6.64¢3 318
1
#18
90321-315-670
NUT, FIXING
$8.15¢4 077
1
#19
90650-KW3-000
BAND, WIRE
$4.99¢2 496
1
#20
93500-05020-0A
SCREW, PAN (5X20)
$0.93¢466
1
#21
93500-05022-0G
SCREW, PAN (5X22)
$1.09¢546
1
#22
94050-06000
NUT, FLANGE (6MM)
$0.74¢368
1
