REAR CYLINDER HEAD

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

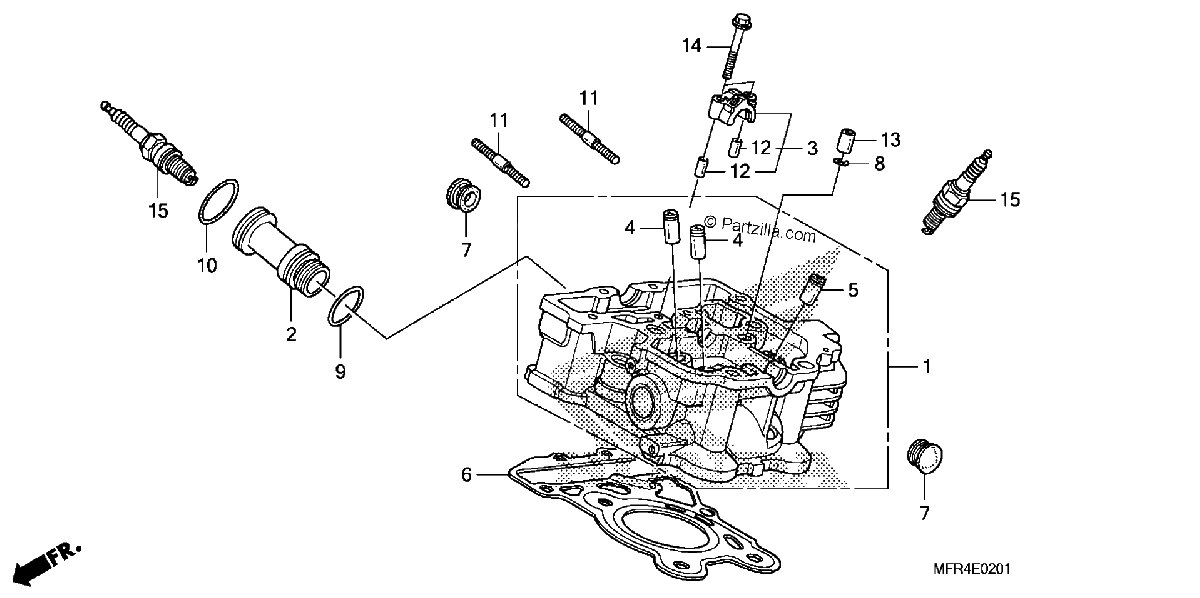

Diagrama de REAR CYLINDER HEAD

Repuestos

#001
12220-MEA-672
CYLINDER HEAD, RR.
$1464.39¢732 194
1
#1
12220-MEA-672
CYLINDER HEAD, RR.
$1464.39¢732 194
1
#002
12225-MG8-000
SLEEVE, PLUG
$50.04¢25 019
1
#2
12225-MG8-000
SLEEVE, PLUG
$50.04¢25 019
1
#003
12230-MEA-670
HOLDER, CAMSHAFT
$34.77¢17 388
1
#3
12230-MEA-670
HOLDER, CAMSHAFT
$34.77¢17 388
1
#004
12231-MG8-305
GUIDE, IN. VALVE (OVER SIZE)
$23.31¢11 656
1
#4
12231-MG8-305
GUIDE, IN. VALVE (OVER SIZE)
$23.31¢11 656
1
#5
12233-MG8-405
GUIDE, IN VALVE
No Disponible
1
#005
12233-MG8-305
GUIDE, EX. VALVE (OVER SIZE)
No Disponible
1
#5
12233-MG8-305
GUIDE, EX. VALVE (OVER SIZE)
No Disponible
1
#6
12251-MFR-671
GASKET, CYLINDER HEAD
$53.14¢26 569
1
#006
12251-MFR-671
GASKET, CYLINDER HEAD
$53.14¢26 569
1
#7
12312-ME9-750
PLUG, CAMSHAFT
$11.84¢5 919
1
#007
12312-ME9-750
PLUG, CAMSHAFT
$11.84¢5 919
1
#008
91302-ZE9-003
O-RING (11.8X2.4)
$3.15¢1 575
1
#8
91302-ZE9-003
O-RING (11.8X2.4)
$3.15¢1 575
1
#9
91304-MG7-003
O-RING (27.4X2.4) (ARAI)
$7.81¢3 906
1
#009
91304-MG7-003
O-RING (27.4X2.4) (ARAI)
$7.81¢3 906
1
#10
91351-MG7-004
O-RING (35.3X2.4) (NOK)
$9.69¢4 844
1
#010
91351-MG7-004
O-RING (35.3X2.4) (NOK)
$9.69¢4 844
1
#11
92900-08028-0E
BOLT, STUD (8X28)
$3.01¢1 506
1
#011
92900-08028-0E
BOLT, STUD (8X28)
$3.01¢1 506
1
#012
94301-08140
PIN, DOWEL (8X14)
$2.89¢1 444
1
#12
94301-08140
PIN, DOWEL (8X14)
$2.89¢1 444
1
#13
94301-12200
PIN, DOWEL (12X20)
$2.95¢1 475
1
#013
94301-12200
PIN, DOWEL (12X20)
$2.95¢1 475
1
#14
95701-06038-00
BOLT, FLANGE (6X38)
$2.41¢1 206
1
#014
95701-06038-00
BOLT, FLANGE (6X38)
$2.41¢1 206
1
#15
98069-5695Q
SPARK PLUG (XU20EPR-U) (DENSO)
$3.65¢1 825
1
#015
98069-5695Q
SPARK PLUG (XU20EPR-U) (DENSO)
$3.65¢1 825
1
#15
98069-5697Q
SPARK PLUG (DCPR6E) (NGK)
$4.25¢2 125
1
#015
98069-5697Q
SPARK PLUG (DCPR6E) (NGK)
$4.25¢2 125
1
#015
98069-5795Q
SPARK PLUG (XU22EPR-U) (DENSO)
$10.34¢5 169
1
#15
98069-5795Q
SPARK PLUG (XU22EPR-U) (DENSO)
$10.34¢5 169
1
#015
98069-5797Q
SPARK PLUG (DCPR7E) (NGK)
$4.83¢2 413
1
#15
98069-5797Q
SPARK PLUG (DCPR7E) (NGK)
$4.83¢2 413
1
