FRONT FORK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

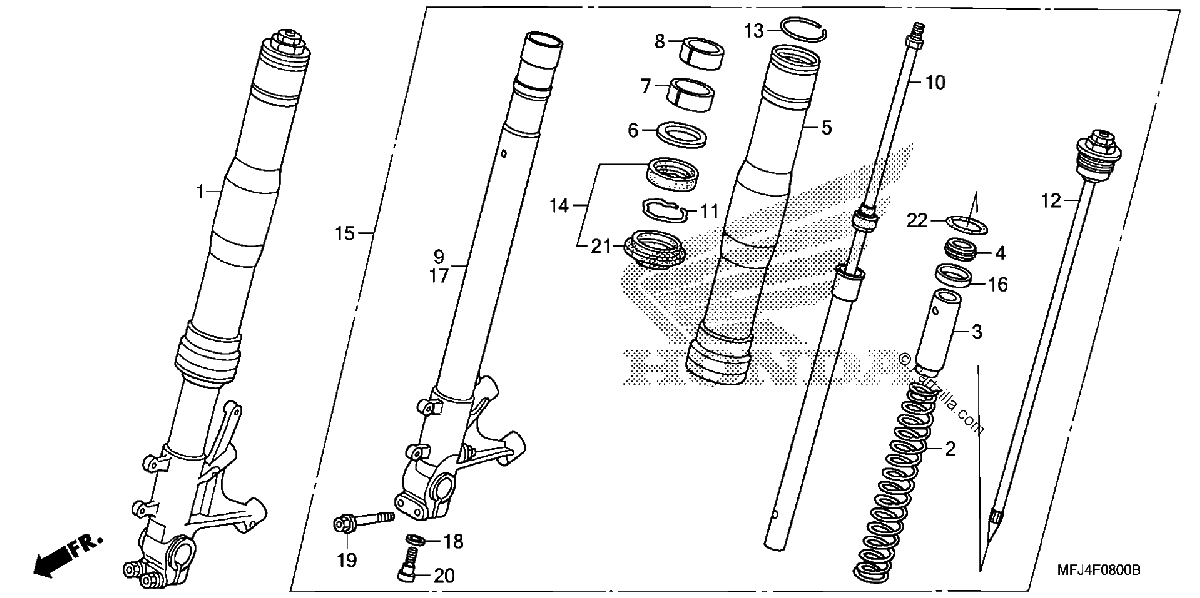

Diagrama de FRONT FORK

Repuestos

#1
51400-MFJ-305
FORK ASSY., R. FR. (COO)
$1330.23¢665 113
1
#1
51400-MFJ-A51
FORK ASSY., R. FR.
$1330.23¢665 113
1
#2
51401-MFJ-A51
SPRING, FR. FORK
$78.95¢39 475
1
#3
51403-MFJ-D01
COLLAR, SPRING
$13.29¢6 644
1
#4
51406-MW4-003
STOPPER, SPRING SEAT
$9.59¢4 794
1
#5
51410-MFJ-305
TUBE (OUTER) (COO)
$576.00¢288 000
1
#6
51412-MB4-003
RING, BACK-UP (SHOWA)
$11.29¢5 644
1
#7
51414-MFJ-A51
BUSH, GUIDE
$8.80¢4 400
1
#8
51415-MFJ-A51
BUSH, SLIDER
$8.80¢4 400
1
#9
51425-MFJ-A51
PIPE, R. SLIDE
$454.98¢227 488
1
#10
51430-MFJ-A51
DAMPER, FR.
$608.01¢304 006
1
#11
51447-KA4-711
RING, OIL SEAL STOPPER (SHOWA)
$5.47¢2 738
1
#12
51450-MFJ-D01
BOLT, FR. FORK
$63.96¢31 981
1
#13
51455-MEE-D01
RING, STOPPER
$3.40¢1 700
1
#14
51490-MEE-D01
SEAL SET, FR. FORK
$32.76¢16 381
1
#15
51500-MFJ-305
FORK ASSY., L. FR. (COO)
$1330.23¢665 113
1
#15
51500-MFJ-A51
FORK ASSY., L. FR.
$1330.23¢665 113
1
#16
51517-MFJ-D01
RUBBER, STOPPER
$8.10¢4 050
1
#17
51525-MFJ-A51
PIPE, L. SLIDE
$435.35¢217 675
1
#18
52442-KA3-711
WASHER, SPECIAL (10MM)
$3.10¢1 550
1
#19
90109-MR7-000
BOLT, FLANGE (8X45)
$5.99¢2 994
1
#20
90126-MR7-003
BOLT, SOCKET (10X35)
$19.03¢9 513
1
#21
91254-MEE-D01
DUST SEAL (SHOWA)
$10.00¢5 000
1
#22
91258-MEE-D01
O-RING (39.7X2.4)
$2.73¢1 363
1
