FUEL TANK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

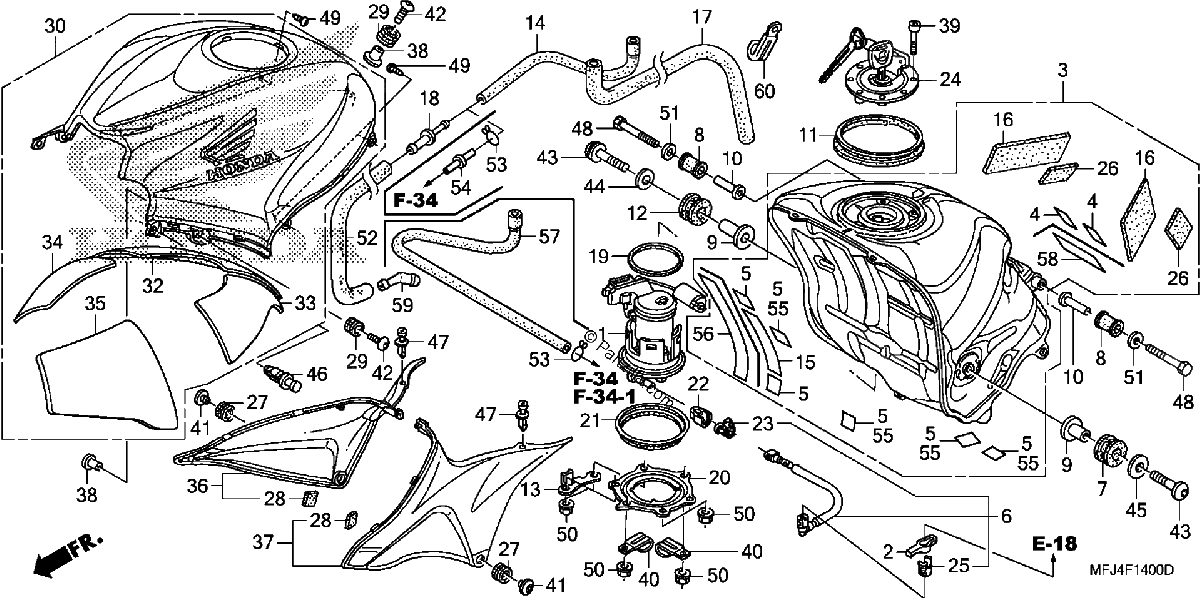

Diagrama de FUEL TANK

Repuestos

#1
16700-MFJ-D01
PUMP ASSY., FUEL (MSDS)
$677.46¢338 731
1
#1
16700-MFJ-D02
PUMP ASSY., FUEL (MSDS)
No Disponible
1
#2
16719-MFJ-D00
DAMPER, CONNECTOR
$3.65¢1 825
1
#3
17500-MFJ-D10
TANK SET, FUEL
$1064.17¢532 088
1
#6
17526-MFJ-D01
HOSE B, FUEL FEED
$78.20¢39 100
1
#7
17533-MEL-000
RUBBER, L. FR. TANK MOUNTING
$4.41¢2 206
1
#8
17534-MFJ-D00
RUBBER, RR. TANK MOUNTING
$5.76¢2 881
1
#9
17535-MEL-D20
COLLAR, FR. TANK SETTING
$9.63¢4 813
1
#10
17538-MEE-D00
COLLAR, RR. TANK SETTING
$7.05¢3 525
1
#11
17543-MEE-000
SEAL, FUEL TANK
$8.89¢4 444
1
#12
17545-MEL-000
RUBBER, R. FR. TANK MOUNTING
$4.41¢2 206
1
#16
17558-MEE-940
CUSHION, FUEL TANK
$18.88¢9 438
1
#17
17559-MFJ-A40
TUBE, DRAIN
$19.40¢9 700
1
#19
17574-MFJ-D00
GASKET, FUEL PUMP
$29.70¢14 850
1
#20
17575-MFJ-D00
PLATE, FUEL PUMP SETTING
$12.56¢6 281
1
#21
17576-MFJ-D00
SEAL (OUTER)
$7.14¢3 569
1
#22
17580-MFJ-D00
COVER, FUEL CONNECTOR
$6.64¢3 319
1
#23
17711-S0X-931
RETAINER (BLUE GREEN) (TOKAI)
$4.01¢2 006
1
#24
17620-MCJ-751
CAP, FUEL FILLER
$213.61¢106 806
1
#25
17711-S0X-931
RETAINER (BLUE GREEN) (TOKAI)
$4.01¢2 006
1
#26
50322-MEC-000
SPONGE, RUBBER
$2.05¢1 025
1
#27
64535-MFJ-D00
RUBBER, SIDE COVER
$2.50¢1 250
1
#28
77182-KTB-300
RUBBER, SPACER
$2.24¢1 119
1
#29
80101-165-000
RUBBER, Rear FENDER CUSHION
$4.53¢2 263
1
#30
83100-MFJ-A70ZA
SHELTER SET, TOP *NHB01* (WL) (GRAPHITE BLACK)
$1395.60¢697 800
1
#32
83161-MFJ-A00
MAT, R. RR. TOP SHELTER
$13.24¢6 619
1
#33
83162-MFJ-A00
MAT, L. RR. TOP SHELTER
$13.24¢6 619
1
#34
83165-MFJ-A00
(BOTH SIDES)
$11.89¢5 944
1
#35
83166-MFJ-A00
MAT, L. FR. TOP SHELTER
$15.16¢7 581
1
#36
83600-MFJ-D00
COVER, R. SIDE
$20.88¢10 438
1
#37
83700-MFJ-D00
COVER, L. SIDE
$20.88¢10 438
1
#38
84706-163-670
COLLAR, TAILLIGHT MOUNTING
$4.95¢2 475
1
#39
95002-02080
CLIP, TUBE (B8)
$2.15¢1 075
1
#39
90074-MT4-000
BOLT, SOCKET (4X21)
$3.69¢1 844
1
#40
90105-727-000
CLIP (2X50)
$3.89¢1 944
1
#41
90114-MFJ-D00
SCREW, SPECIAL (5X6)
$2.75¢1 375
1
#42
90118-MEJ-J00
SCREW, PAN (6X20)
$2.75¢1 375
1
#43
90128-KL4-000
BOLT, SPROCKET FIXING
$10.76¢5 381
1
#44
90524-030-000
WASHER A, HANDLE HOLDER SETTING
$1.79¢894
1
#45
90534-750-000
WASHER (8.5MM)
$4.97¢2 488
1
#46
90657-SB0-003
CLIP, SPLASH SHIELD
$6.39¢3 194
1
#47
90683-GR1-003
CLIP, BODY COVER
$3.65¢1 825
1
#48
92201-06040-0A
BOLT, HEX. (6X40)
$1.19¢594
1
#49
93903-24280
SCREW, TAPPING (4X10)
$1.74¢869
1
#50
94050-06080
NUT, FLANGE (6MM)
$0.80¢400
1
#51
94103-06000
WASHER, PLAIN (6MM)
$1.27¢638
1
#55
17528-MR4-900
TAPE, TANK GUARD
$2.99¢1 494
1
#56
17554-MFJ-D10
FILM A, PROTECTOR
$14.24¢7 119
1
#57
17555-MFJ-L40
TUBE, BREATHER
$22.88¢11 438
1
#58
17557-MFJ-D10
FILM B, PROTECTOR
$5.86¢2 931
1
#60
91410-679-000
CLIP (2X60)
$11.78¢5 888
1
