MUFFLER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

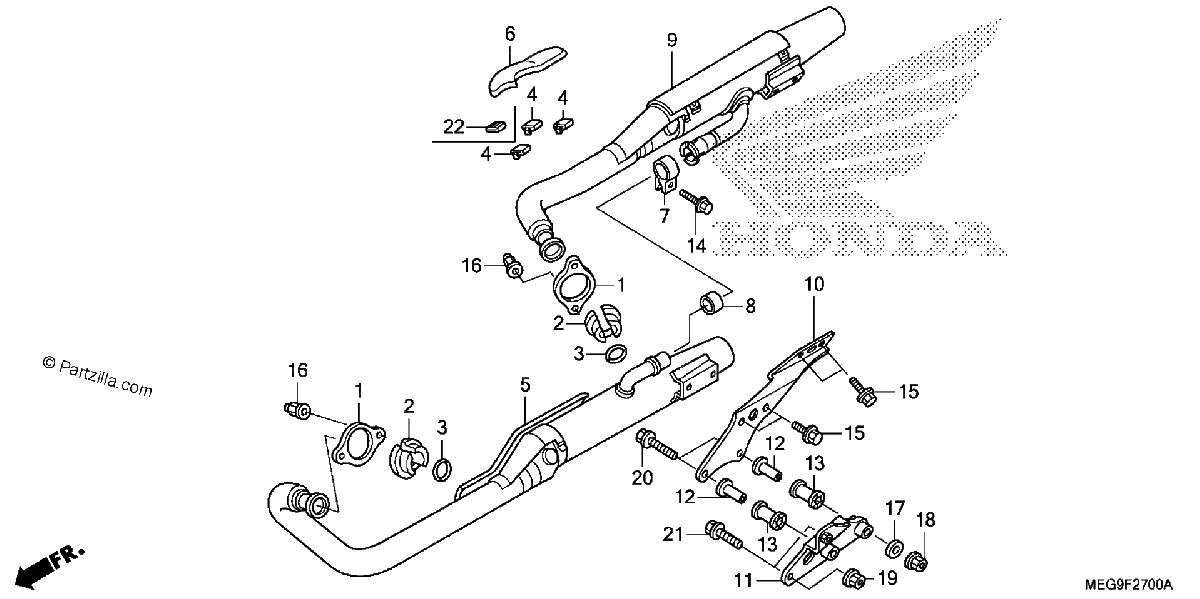

Diagrama de MUFFLER

Repuestos

#1
18231-MBA-003
JOINT, EX PIPE
$31.01¢15 506
1
#001
18231-MBA-003
JOINT, EX PIPE
$31.01¢15 506
1
#2
18233-MR1-010
COLLAR, EX PIPE JOINT
$12.29¢6 144
1
#002
18233-MR1-010
COLLAR, EX PIPE JOINT
$12.29¢6 144
1
#003
18291-MM5-860
GASKET, EX. PIPE
$6.26¢3 131
1
#3
18291-MM5-860
GASKET, EX. PIPE
$6.26¢3 131
1
#4
18293-MN0-000
RUBBER, PROTECTOR
$2.75¢1 375
1
#004
18293-MN0-000
RUBBER, PROTECTOR
$2.75¢1 375
1
#005
18300-MEG-A62
MUFFLER, Front.
$2132.21¢1 066 106
1
#005
18300-MEG-315
MUFFLER, Front. (COO)
$2132.21¢1 066 106
1
#5
18300-MEG-315
MUFFLER, Front. (COO)
$2132.21¢1 066 106
1
#006
18315-MGR-671
PROTECTOR, RR. EX.
$169.57¢84 788
1
#6
18315-MGR-671
PROTECTOR, RR. EX.
$169.57¢84 788
1
#007
18374-ML4-003
BAND, L EX PIPE
$19.01¢9 506
1
#7
18374-ML4-003
BAND, L EX PIPE
$19.01¢9 506
1
#008
18391-ML8-000
GASKET, MUFFLER
$10.76¢5 381
1
#8
18391-ML8-000
GASKET, MUFFLER
$10.76¢5 381
1
#9
18400-MEG-315
MUFFLER, RR. (COO)
$1876.16¢938 081
1
#009
18400-MEG-315
MUFFLER, RR. (COO)
$1876.16¢938 081
1
#009
18400-MEG-A63
MUFFLER, Rear.
$1876.16¢938 081
1
#010
18415-MFE-670
STAY, MUFFLER
$67.36¢33 681
1
#10
18415-MFE-670
STAY, MUFFLER
$67.36¢33 681
1
#11
18455-MFE-670
BRACKET, MUFFLER
$133.55¢66 775
1
#011
18455-MFE-670
BRACKET, MUFFLER
$133.55¢66 775
1
#012
50607-KK6-000
COLLAR, MOUNTING RUBBER
$10.67¢5 337
1
#12
50607-KK6-000
COLLAR, MOUNTING RUBBER
$10.67¢5 337
1
#13
50608-KK6-000
RUBBER, MUFFLER MOUNTING
$9.45¢4 725
1
#013
50608-KK6-000
RUBBER, MUFFLER MOUNTING
$9.45¢4 725
1
#014
90125-MGR-670
BOLT, FLANGE (8X32)
$3.91¢1 956
1
#14
90125-MGR-670
BOLT, FLANGE (8X32)
$3.91¢1 956
1
#015
90166-S87-A00
BOLT, FLANGE (8X16)
$0.90¢450
1
#15
90166-S87-A00
BOLT, FLANGE (8X16)
$0.90¢450
1
#016
90304-ME1-670
NUT, CAP (8MM)
$7.21¢3 606
1
#16
90304-ME1-670
NUT, CAP (8MM)
$7.21¢3 606
1
#017
90534-011-000
WASHER (8.3MM)
$1.90¢950
1
#17
90534-011-000
WASHER (8.3MM)
$1.90¢950
1
#018
94050-08070
NUT, FLANGE (8MM)
$1.93¢963
1
#18
94050-08070
NUT, FLANGE (8MM)
$1.93¢963
1
#19
94050-10070
NUT, FLANGE (10MM)
$4.06¢2 031
1
#019
94050-10070
NUT, FLANGE (10MM)
$4.06¢2 031
1
#19
90303-428-900
NUT, FLANGE (10MM)
$4.06¢2 031
1
#019
90303-428-900
NUT, FLANGE (10MM)
$4.06¢2 031
1
#20
95701-08055-07
BOLT, FLANGE (8X55)
$2.38¢1 188
1
#020
95701-08055-07
BOLT, FLANGE (8X55)
$2.38¢1 188
1
#21
95701-10050-07
BOLT, FLANGE (10X50)
$2.38¢1 188
1
#021
95701-10050-07
BOLT, FLANGE (10X50)
$2.38¢1 188
1
#022
18293-MFE-B00
RUBBER, PROTECTOR GASKET
$3.84¢1 919
1
#22
18293-MFE-B00
RUBBER, PROTECTOR GASKET
$3.84¢1 919
1
