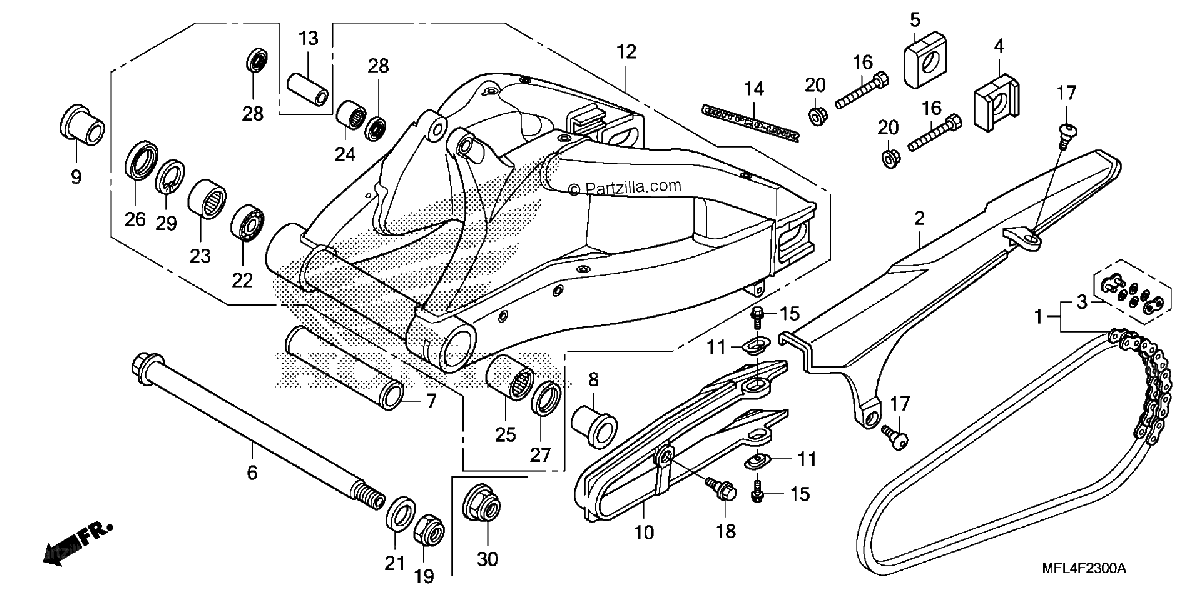

SWINGARM
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
(STANDARD LINK 116L)
$333.15¢166 578
#1
(STANDARD LINK 116L)
$333.15¢166 578
#2
CASE, DRIVE CHAIN
$52.80¢26 398
#3
MASTER LINK (RK EXCEL)
$14.63¢7 314
#3
MASTER LINK (DAIDO)
$10.09¢5 043
#4
COLLAR, L. RR. AXLE
$26.92¢13 461
#5
COLLAR, R. RR. AXLE
$32.58¢16 290
#6
BOLT, SWINGARM PIVOT
$74.16¢37 082
#7
COLLAR, RR. SWINGARM DISTANCE
$35.39¢17 693
#8
COLLAR, L. PIVOT DISTANCE
$37.01¢18 504
#9
COLLAR, R. PIVOT DISTANCE
$28.73¢14 363
#10
SLIDER, CHAIN
$52.69¢26 347
#11
WASHER, CHAIN SLIDER
$2.62¢1 311
#12
SWINGARM SUB-ASSY.
$2468.93¢1 234 468
#12
SWINGARM SUB-ASSY.
$2468.93¢1 234 468
#13
COLLAR, CUSHION CONNECTING ROD
$12.57¢6 285
#14
MARK (UNIT PROLINK)
$4.17¢2 087
#15
BOLT, FLANGE (6X18)
$3.36¢1 679
#16
BOLT, HEX. (8X50)
$3.42¢1 708
#17
SCREW, SPECIAL (6X16)
$3.07¢1 535
#18
BOLT, CHAIN SLIDER
$3.42¢1 708
#19
NUT, U (22MM)
$8.58¢4 289
#19
NUT, U (22MM)
$8.58¢4 289
#20
NUT, HEX. (8MM)
$3.79¢1 897
#21
WASHER (23X37X2.5)
$5.63¢2 818
#22
BEARING, RADIAL BALL (6905)
$17.93¢8 964
#23
BEARING, NEEDLE (32X42X20)
$34.29¢17 147
#24
BEARING, NEEDLE (KOYO)
$26.59¢13 294
#25
BEARING, NEEDLE (32X42X37)
$22.49¢11 247
#26
DUST SEAL (32X45X5)
$7.72¢3 858
#27
DUST SEAL (32X42X6)
$7.15¢3 577
#28
DUST SEAL (17X24X5) (ARAI)
$6.91¢3 456
#29
CIRCLIP, INNER (45MM)
$2.71¢1 357
