TAILLIGHT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

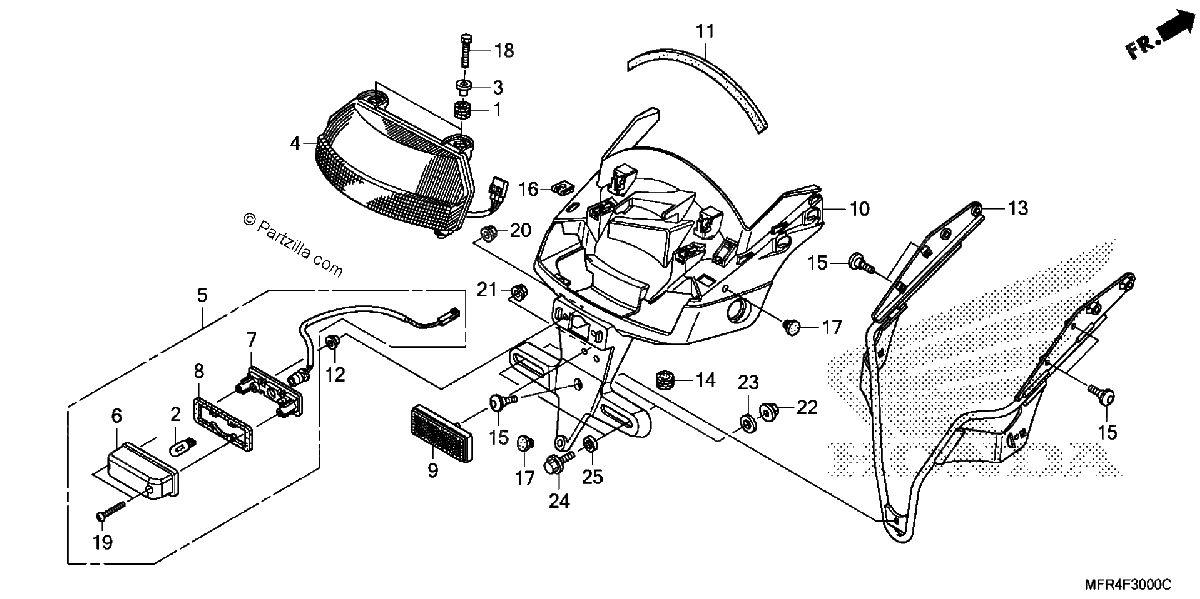

Diagrama de TAILLIGHT

Repuestos

#1
19639-GBC-000
RUBBER, MOUNTING
$1.80¢900
1
#001
19639-GBC-000
RUBBER, MOUNTING
$1.80¢900
1
#002
33301-SA0-741
BULB (12V 5W) (STANLEY)
$4.61¢2 306
1
#2
33301-SA0-741
BULB (12V 5W) (STANLEY)
$4.61¢2 306
1
#003
33614-MEC-650
COLLAR C, RR. TURN SIGNAL
$3.30¢1 650
1
#3
33614-MEC-650
COLLAR C, RR. TURN SIGNAL
$3.30¢1 650
1
#4
33701-MFR-305
TAILLIGHT UNIT (COO) (STANLEY)
$360.51¢180 256
1
#004
33701-MFR-305
TAILLIGHT UNIT (COO) (STANLEY)
$360.51¢180 256
1
#004
33701-MFR-671
TAILLIGHT UNIT (STANLEY)
$360.51¢180 256
1
#005
33720-MFR-305
LIGHT ASSY., LICENSE (12V 5W) (COO) (STANLEY)
$81.79¢40 894
1
#5
33720-MFR-305
LIGHT ASSY., LICENSE (12V 5W) (COO) (STANLEY)
$81.79¢40 894
1
#005
33720-MFR-671
LIGHT Assembly., LICENSE (12V 5W) (STANLEY)
$81.79¢40 894
1
#6
33721-MFR-305
COVER, LICENSE (COO)
$18.98¢9 488
1
#006
33721-MFR-305
COVER, LICENSE (COO)
$18.98¢9 488
1
#007
33723-MCZ-671
BASE, LICENSE
$26.45¢13 225
1
#7
33723-MCZ-671
BASE, LICENSE
$26.45¢13 225
1
#8
33729-MCZ-003
GASKET, LENS
$12.19¢6 094
1
#008
33729-MCZ-003
GASKET, LENS
$12.19¢6 094
1
#9
33741-MS6-921
REFLECTOR, REFLEX (STANLEY)
$17.73¢8 863
1
#009
33741-MS6-921
REFLECTOR, REFLEX (STANLEY)
$17.73¢8 863
1
#10
80101-MFR-670
FENDER A, RR.
$39.35¢19 675
1
#010
80101-MFR-670
FENDER A, RR.
$39.35¢19 675
1
#011
80104-MFE-670
MOUL, RR. FENDER COVER
$10.94¢5 469
1
#11
80104-MFE-670
MOUL, RR. FENDER COVER
$10.94¢5 469
1
#012
80114-KG7-000
COLLAR, RR. FENDER
$5.51¢2 756
1
#12
80114-KG7-000
COLLAR, RR. FENDER
$5.51¢2 756
1
#013
80132-MFR-670
STAY A, RR. FENDER
$180.54¢90 269
1
#13
80132-MFR-670
STAY A, RR. FENDER
$180.54¢90 269
1
#14
83551-MB9-000
GROMMET
$3.30¢1 650
1
#014
83551-MB9-000
GROMMET
$3.30¢1 650
1
#15
90124-MY6-670
SCREW, PAN (6X13)
$3.36¢1 681
1
#015
90124-MY6-670
SCREW, PAN (6X13)
$3.36¢1 681
1
#016
90320-GC3-000
NUT, SPRING (5MM)
$2.97¢1 487
1
#16
90320-GC3-000
NUT, SPRING (5MM)
$2.97¢1 487
1
#017
90852-446-630
PLUG, HOLE
$3.30¢1 650
1
#17
90852-446-630
PLUG, HOLE
$3.30¢1 650
1
#18
93101-05016-0G
BOLT, HEX. (5X16)
$0.93¢463
1
#018
93101-05016-0G
BOLT, HEX. (5X16)
$0.93¢463
1
#019
93901-24480
SCREW, TAPPING (4X16)
$1.06¢531
1
#19
93901-24480
SCREW, TAPPING (4X16)
$1.06¢531
1
#020
94050-05000
NUT, FLANGE (5MM)
$1.68¢838
1
#20
94050-05000
NUT, FLANGE (5MM)
$1.68¢838
1
#021
94050-05070
NUT, FLANGE (5MM)
$1.66¢831
1
#21
94050-05070
NUT, FLANGE (5MM)
$1.66¢831
1
#22
94050-06000
NUT, FLANGE (6MM)
$0.80¢400
1
#022
94050-06000
NUT, FLANGE (6MM)
$0.80¢400
1
#23
94103-06800
WASHER, PLAIN (6MM)
$1.00¢500
1
#023
94103-06800
WASHER, PLAIN (6MM)
$1.00¢500
1
#24
95701-06016-00
BOLT, FLANGE (6X16)
$2.09¢1 044
1
#024
95701-06016-00
BOLT, FLANGE (6X16)
$2.09¢1 044
1
#025
80104-065-000
COLLAR, TAILLIGHT
$3.65¢1 825
1
#25
80104-065-000
COLLAR, TAILLIGHT
$3.65¢1 825
1
