WIRE HARNESS HORN

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

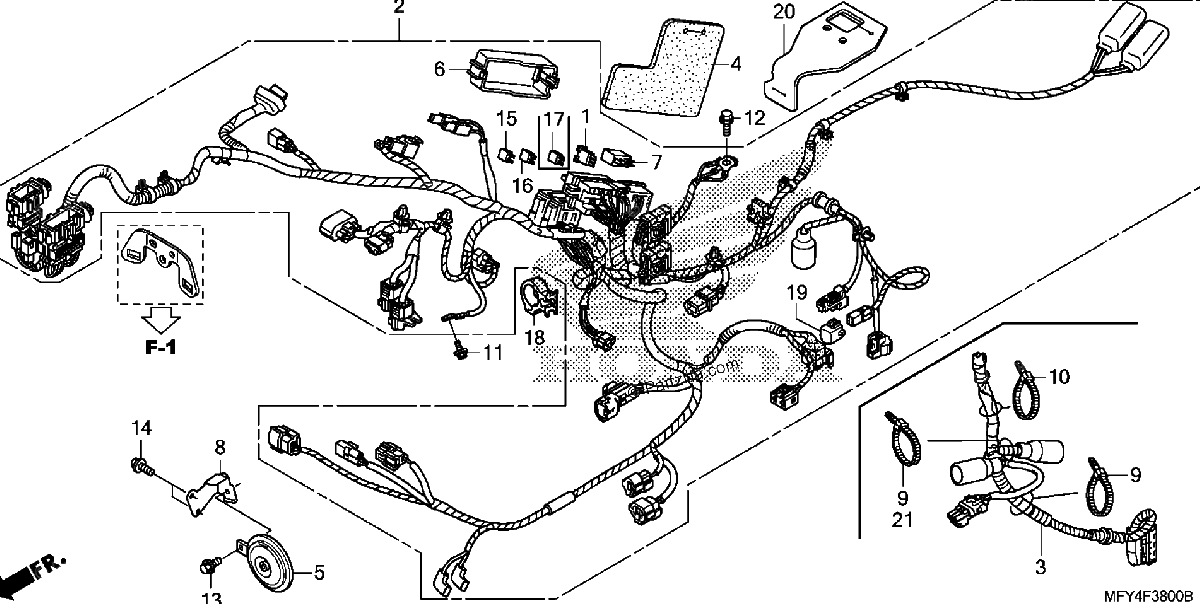

Diagrama de WIRE HARNESS HORN

Repuestos

#1
31730-MAS-601
DIODE ASSY., THREE WAY (SUMITOMO)
$12.64¢6 319
1
#2
32100-MFY-A10
WIRE HARNESS
$1369.20¢684 600
1
#3
32104-MFY-A10
SUB-HARNESS, ABS
$212.05¢106 025
1
#4
32150-MFY-A00
GUARD, HARNESS
$7.70¢3 850
1
#5
38110-MFY-003
HORN (HIGH)
$84.45¢42 225
1
#6
38252-MFJ-D01
COVER (UPPER)
$13.04¢6 519
1
#7
38501-MEL-003
RELAY ASSY., POWER (MICRO ISO 4P)
$5.64¢2 819
1
#8
50177-MFY-A00
STAY, HORN
$27.40¢13 700
1
#9
90650-KV6-003
BAND, WIRE (95MM)
$3.77¢1 888
1
#10
90652-KT1-771
BAND, WIRE (BLACK)
$5.42¢2 713
1
#11
95701-06012-08
BOLT, FLANGE (6X12)
$1.99¢994
1
#12
95701-06014-00
BOLT, FLANGE (6X14)
$1.23¢613
1
#13
95701-08014-07
BOLT, FLANGE (8X14)
$1.29¢644
1
#14
95701-08020-08
BOLT, FLANGE (8X20)
$1.94¢969
1
#15
98200-41000
FUSE, MINI (10A)
$1.70¢850
1
#16
98200-42000
FUSE, MINI (20A)
$1.49¢744
1
#17
98200-43000
FUSE, MINI (30A)
$2.15¢1 075
1
#18
90690-GHB-661
CLIP, CABLE (20MM)
$2.81¢1 406
1
#19
32606-GEV-761
CAP, DUMMY (4P) (RED)
$5.83¢2 913
1
#20
32160-MFY-000
RUBBER SHEET, HARNESS GUARD
$11.45¢5 725
1
#21
90652-KT1-771
BAND, WIRE (BLACK)
$5.42¢2 713
1
