HANDLE LEVER SWITCH CABLE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

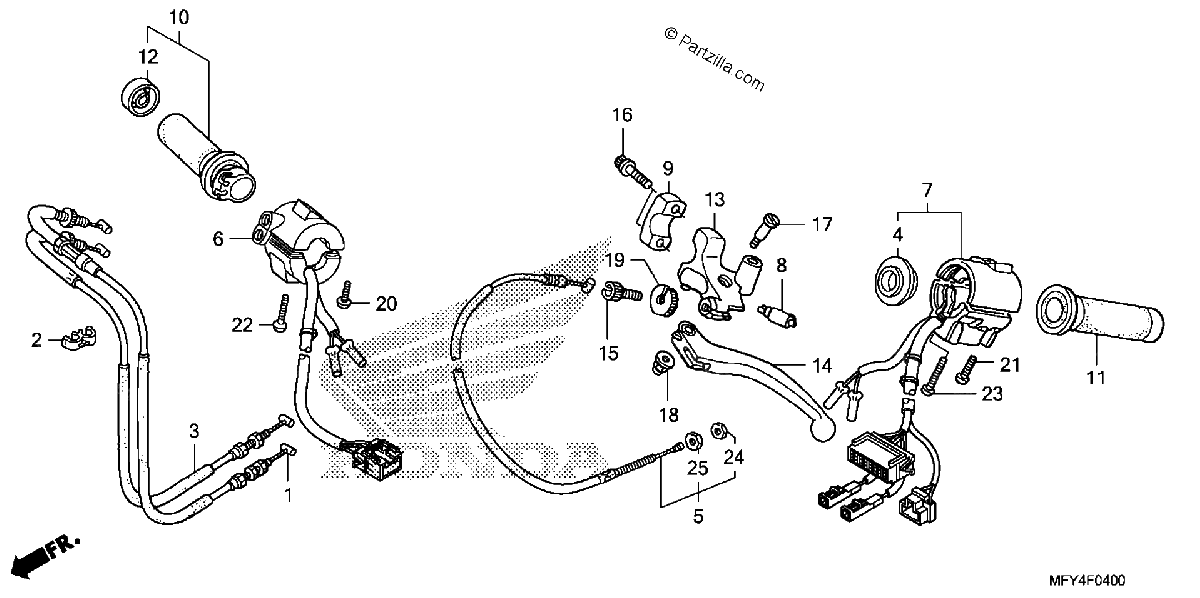

Diagrama de HANDLE LEVER SWITCH CABLE

Repuestos

#1
17910-MFY-A00
CABLE A, THROTTLE
$42.88¢21 438
1
#2
17915-SA7-981
CLIP, THROTTLE WIRE
$3.65¢1 825
1
#3
17920-MFY-A00
CABLE B, THROTTLE
$42.88¢21 438
1
#4
17962-MR1-000
ADAPTER
$22.40¢11 200
1
#5
22870-MFY-A00
CABLE, CLUTCH
$42.27¢21 138
1
#6
35130-MFY-A01
SWITCH ASSY., STARTER STOP
$174.04¢87 019
1
#7
35200-MFY-A01
SWITCH ASSY., TURN SIGNAL
$194.57¢97 288
1
#8
35330-413-003
SWITCH, FR. LEVER (TOYO DENSO)
$25.44¢12 719
1
#9
45517-MR1-671
HOLDER, MASTER CYLINDER (NISSIN)
$31.63¢15 813
1
#10
53145-MFR-305
GRIP, Right. (COO)
$50.91¢25 456
1
#11
53166-MFR-305
GRIP, L HANDLE (COO)
$50.43¢25 213
1
#12
53167-MM8-000
CAP, GRIP END
$10.95¢5 475
1
#13
53172-MR1-000
BRACKET, HANDLE LEVER
$41.44¢20 719
1
#14
53178-MFR-305
LEVER, L. HANDLEBAR (COO)
$22.65¢11 325
1
#15
53192-268-000
BOLT, WIRE ADJUSTING
$7.92¢3 963
1
#16
90101-MCL-000
BOLT, SOCKET (6X22)
$1.86¢931
1
#17
90113-438-000
BOLT, L HANDLEBAR LEVER PIVOT
$9.20¢4 600
1
#18
90201-415-000
NUT, CAP (6MM)
$2.76¢1 381
1
#19
90321-MA6-750
NUT, FIXING
$12.13¢6 063
1
#20
93500-05020-0A
SCREW, PAN (5X20)
$1.01¢506
1
#21
93500-05022-0A
SCREW, PAN (5X22)
$0.86¢431
1
#22
93500-05025-0A
SCREW, PAN (5X25)
$1.21¢606
1
#23
93500-05032-0A
SCREW, PAN (5X32)
$1.41¢706
1
#24
94002-08000-0S
NUT, HEX. (8MM)
$1.60¢800
1
#25
94031-08000
NUT, HEX. (8MM)
$1.38¢688
1
