THROTTLE BODY

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

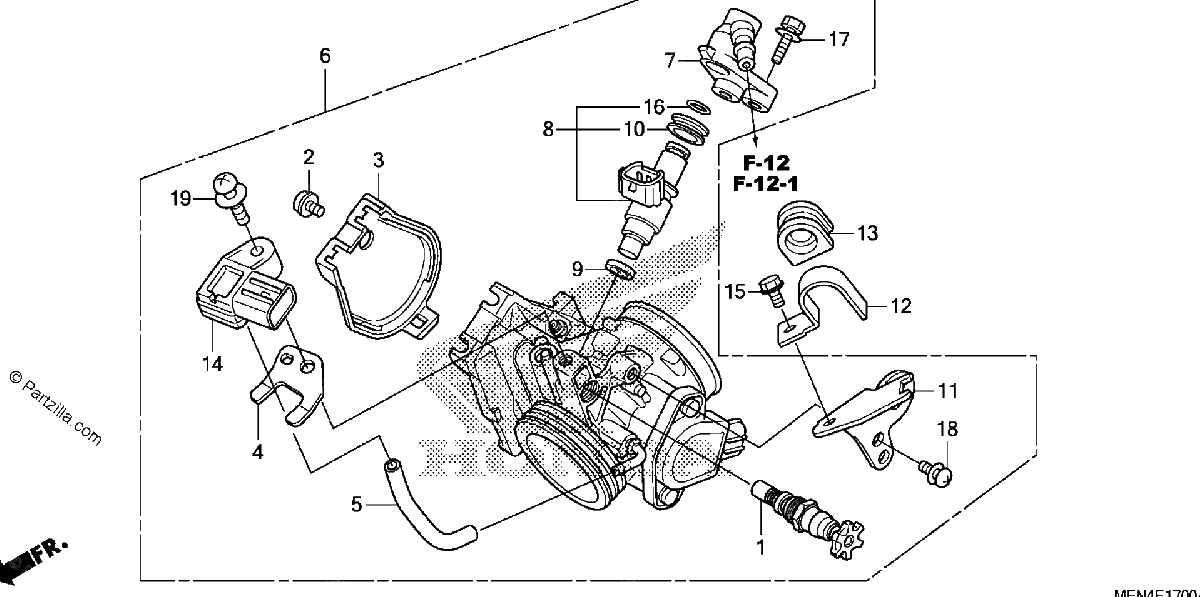

Diagrama de THROTTLE BODY

Repuestos

#1
16046-MEN-A41
VALVE, STARTER
$32.22¢16 112
1
#2
16080-HP1-601
BOLT, COVER
$4.54¢2 271
1
#3
16157-MEN-A31
COVER, BODY
$20.91¢10 453
1
#4
16191-MEN-A31
STAY, PB SENSOR
$10.18¢5 089
1
#5
16199-MEN-A51
TUBE
$10.91¢5 457
1
#6
16400-MEN-A51
BODY ASSY., THROTTLE (GQ25A A)
$842.50¢421 251
1
#7
16422-MEN-A31
JOINT, INJECTOR
$12.07¢6 038
1
#8
16450-MEN-A51
INJECTOR ASSY., FUEL
$153.58¢76 791
1
#9
16472-MCW-000
SEAL RING, INJECTOR
$2.83¢1 414
1
#10
16473-P7A-004
CUSHION RING, INJECTOR
$7.68¢3 841
1
#11
17567-MEN-A31
BASE, CLAMP
$6.45¢3 226
1
#12
17568-HP5-600
CLAMP, FUEL HOSE
$1.03¢518
1
#13
17579-HP5-600
RUBBER, FUEL FEED HOSE
$2.30¢1 150
1
#14
37830-MEL-003
SENSOR ASSY., MAP
$138.08¢69 040
1
#15
90002-892-000
BOLT, FLANGE (5X10)
$1.68¢839
1
#16
91301-P7A-004
O-RING (7.8X1.9)
$3.75¢1 874
1
#17
93401-05020-00
BOLT-WASHER (5X20)
$1.47¢736
1
#18
93892-05012-18
SCREW-WASHER (5X12)
$1.36¢678
1
#18
93892-05012-08
SCREW-WASHER (5X12)
$1.36¢678
1
#19
16542-MEN-A41
SCREW-WASHER (6X25)
$3.81¢1 903
1
