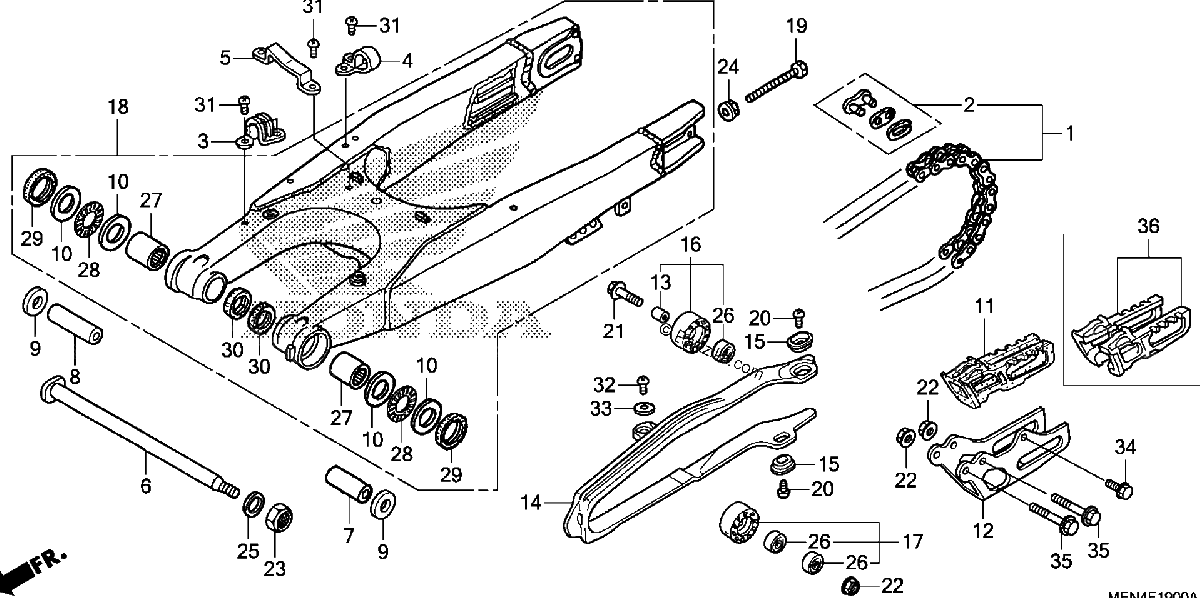

SWINGARM
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
CHAIN, DRIVE (DID520DMA4-116RB) (DAIDO)
$187.53¢93 765
#1
CHAIN, DRIVE (RK520TXZ-116RJ) (RK EXCEL)
$187.53¢93 765
#1
CHAIN, DRIVE (DID520DMA4-120RB) (DAIDO)
$257.81¢128 903
#1
CHAIN, DRIVE (RK520TXZ-120RJ) (RK EXCEL)
$243.12¢121 561
#2
MASTER LINK (RK EXCEL)
$9.29¢4 646
#2
MASTER LINK (DAIDO)
$9.33¢4 663
#3
GUIDE, BRAKE HOSE
$9.90¢4 951
#4
GUIDE, RR. BRAKE HOSE
$4.30¢2 151
#5
GUIDE, BRAKE HOSE
$5.19¢2 593
#6
SHAFT, SWINGARM PIVOT
$27.32¢13 662
#7
COLLAR, SWINGARM (46MM)
$26.90¢13 449
#8
COLLAR, SWINGARM SIDE (54MM)
$18.05¢9 027
#9
COLLAR, SWINGARM PIVOT SIDE
$4.58¢2 289
#10
WASHER, SWINGARM SIDE THRUST
$2.28¢1 138
#12
PLATE, CHAIN GUIDE
$50.62¢25 312
#13
COLLAR, CHAIN TENSIONER
$3.22¢1 610
#14
SLIDER, CHAIN
$99.16¢49 582
#15
WASHER, CHAIN SLIDER
$3.06¢1 529
#16
ROLLER, CHAIN (38MM)
No Disponible
#17
ROLLER, CHAIN (LOWER) (38MM)
$44.19¢22 097
#18
SWINGARM SUB-ASSY., RR.
No Disponible
#19
BOLT, HEX. (8X47.5)
$3.36¢1 679
#20
SCREW, PAN (5X8)
$3.09¢1 547
#21
BOLT, FLANGE (8X32)
$2.42¢1 208
#22
NUT, U (6MM) (FUSE RASHI)
$4.54¢2 271
#23
NUT, U HEX. (14MM)
$6.49¢3 243
#24
NUT, HEX. (8MM)
$3.79¢1 897
#25
WASHER (14MM)
$7.41¢3 703
#25
WASHER (26X14X2.8)
$7.41¢3 703
#26
BEARING, RADIAL BALL (608UU)
$15.71¢7 855
#27
BEARING, NEEDLE (22X29X30) (NTN)
$46.30¢23 149
#28
BEARING, NEEDLE THRUST
$14.37¢7 187
#29
DUST SEAL (30X37X4)
$9.34¢4 669
#30
DUST SEAL (22X29X4) (ARAI)
$6.60¢3 301
#31
SCREW, PAN (5X8)
$1.03¢518
#32
SCREW, PAN (5X8)
$1.07¢535
#33
WASHER, PLAIN (5MM)
$1.12¢558
#34
BOLT, FLANGE (6X12)
$2.13¢1 064
#35
BOLT, FLANGE (6X45)
$2.32¢1 162
#36
GUIDE SET, CHAIN
$42.91¢21 453
