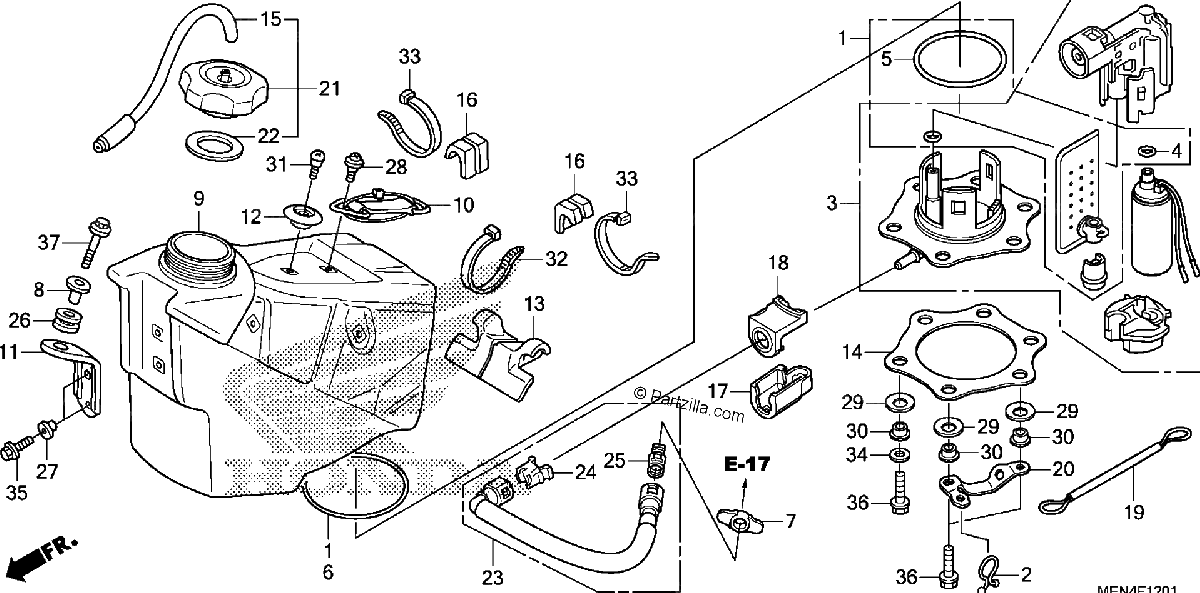

FUEL TANK 2
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FILTER KIT, FUEL
$94.17¢47 087
#2
CLAMP, FUEL HOSE (18.5MM)
$13.12¢6 561
#2
CLIP, BREATHER TUBE PROTECTOR
$11.67¢5 836
#3
PUMP ASSY., FUEL (MSDS)
$392.02¢196 012
#3
PUMP ASSY., FUEL
$392.02¢196 012
#4
O-RING (8.6X1.9)
$0.66¢328
#5
O-RING (3.7X73.9)
$13.02¢6 509
#6
O-RING (2.4X88.4)
$11.93¢5 963
#7
RUBBER, FUEL JOINT
$2.75¢1 374
#8
COLLAR, TANK SETTING
$9.71¢4 853
#9
TANK, FUEL
No Disponible
#10
BAND, Rear TANK
$17.42¢8 711
#11
STAY, FR. FUEL TANK
$9.23¢4 617
#12
COLLAR, FR. SEAT
$6.47¢3 237
#13
RUBBER, FUEL TANK MOUNTING
No Disponible
#14
PLATE, FUEL PUMP
$21.91¢10 954
#15
TUBE, FUEL CAP BREATHER
$7.16¢3 582
#16
RUBBER, TANK SIDE MOUNTING
$7.35¢3 674
#17
COVER, FUEL CONNECTOR
$8.31¢4 157
#18
RUBBER, FUEL CONNECTOR
$5.31¢2 657
#19
CABLE, FUEL TANK STOPPER
$9.14¢4 571
#20
GUIDE, STOPPER CABLE
$9.97¢4 985
#21
CAP ASSY., FUEL TANK
$107.97¢53 987
#22
GASKET, FUEL CAP
$5.37¢2 685
#23
HOSE ASSY., FUEL FEED
$92.02¢46 011
#24
RETAINER (BLUE GREEN) (TOKAI)
$3.69¢1 846
#25
RETAINER (GREEN) (TOKAI)
$3.69¢1 846
#26
RUBBER, MUFFLER
$4.32¢2 162
#27
COLLAR
$2.77¢1 386
#28
SCREW (5X12)
$1.98¢989
#29
WASHER, CONICAL SPRING FUEL PUMP
$3.15¢1 576
#30
COLLAR, FUEL PUMP
$5.21¢2 605
#31
SCREW, SPECIAL (5MM)
$3.36¢1 679
#32
TY-RAP, CABLE (240MM)
$2.33¢1 167
#33
TY-RAP, CABLE
$2.81¢1 403
#34
WASHER, PLAIN (6MM)
$0.77¢385
#34
WASHER, PLAIN (6MM)
$0.77¢385
#34
WASHER, PLAIN (6MM)
$0.77¢385
#35
BOLT, FLANGE (6X16)
$1.24¢621
#36
BOLT, FLANGE (6X20)
$1.47¢736
#37
BOLT, FLANGE (6X30)
$1.66¢828
