MUFFLER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

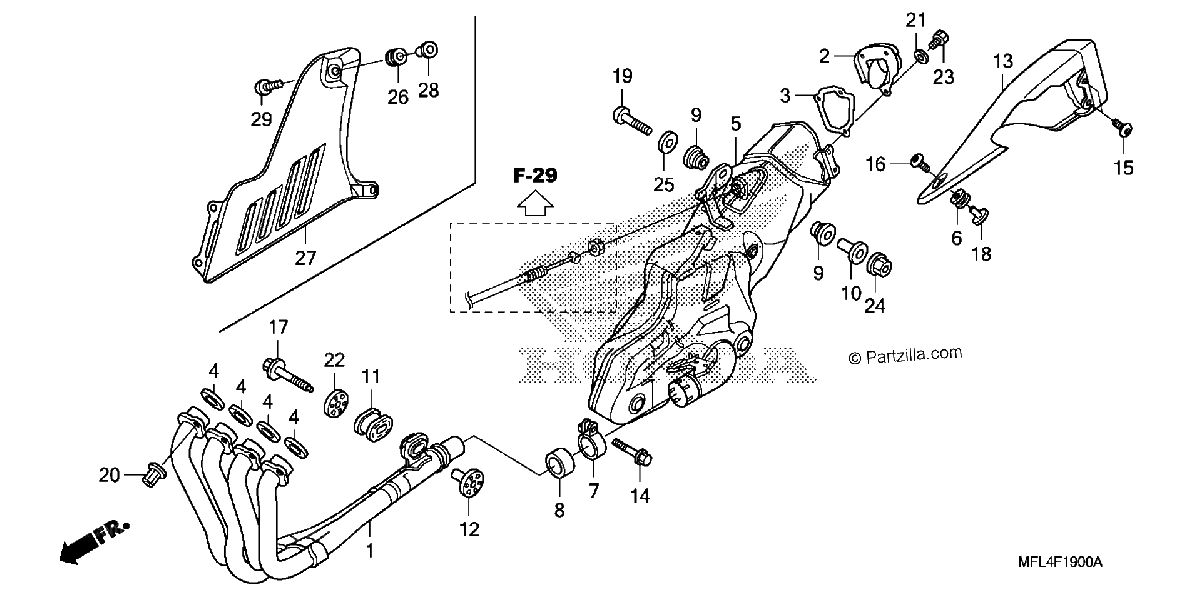

Diagrama de MUFFLER

Repuestos

#1
18150-MFL-A20
PIPE, EX.
$848.40¢424 200
1
#2
18161-MFL-670
PLATE, COVER END
$30.94¢15 469
1
#4
18291-MM5-860
GASKET, EX. PIPE
$6.26¢3 131
1
#5
18310-MFL-305
MUFFLER (COO)
$2593.11¢1 296 556
1
#6
18357-MCG-000
RUBBER, PROTECTOR MOUNTING
$3.65¢1 825
1
#7
18371-MFL-000
BAND, MUFFLER
$37.01¢18 506
1
#8
18391-MEL-000
GASKET, MUFFLER
$25.67¢12 837
1
#9
18421-MFL-000
RUBBER, MUFFLER MOUNTING
$8.44¢4 219
1
#10
18422-MA6-000
COLLAR, MUFFLER MOUNTING
$9.60¢4 800
1
#11
18422-MFJ-D10
RUBBER, EX. PIPE MOUNTING
$23.79¢11 894
1
#12
18423-MFJ-D00
COLLAR, EX. PIPE MOUNTING
$8.13¢4 063
1
#13
18425-MFL-000
GUARD, MUFFLER
No Disponible
1
#14
90103-KCM-620
BOLT, FLANGE (8X35)
$2.03¢1 013
1
#15
90106-GBB-710
SCREW, PAN (6X10)
$1.63¢813
1
#16
90111-MFL-D20
SCREW, PAN (6X14)
$2.54¢1 269
1
#17
90120-MFJ-D00
BOLT, FLANGE (8X50) (GUIDE)
$3.10¢1 550
1
#18
90122-463-770
COLLAR, COWL SETTING (LOWER)
$5.34¢2 669
1
#19
90172-MFL-000
BOLT, SOCKET (8X43)
$4.53¢2 263
1
#20
90304-MM5-000
NUT, FLANGE (7MM)
$5.99¢2 994
1
#21
90452-GK4-600
WASHER, PLAIN (5MM)
$1.72¢862
1
#22
90501-MFJ-D00
WASHER (8.5X38)
$2.76¢1 381
1
#23
92101-05008-4J
BOLT, HEX. (5X8)
$2.91¢1 456
1
#24
94050-08000
NUT, FLANGE (8MM)
$1.15¢575
1
#25
94103-08700
WASHER, PLAIN (8MM)
$1.21¢606
1
#26
18345-MBT-610
RUBBER, PROTECTOR MOUNTING
$2.81¢1 406
1
#27
18350-MFL-D20
COVER, MUFFLER
$162.13¢81 063
1
#28
84706-415-000
COLLAR
$3.01¢1 506
1
#29
90120-MFL-D20
SCREW, PAN (6X14)
$2.48¢1 238
1
