REAR WHEEL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

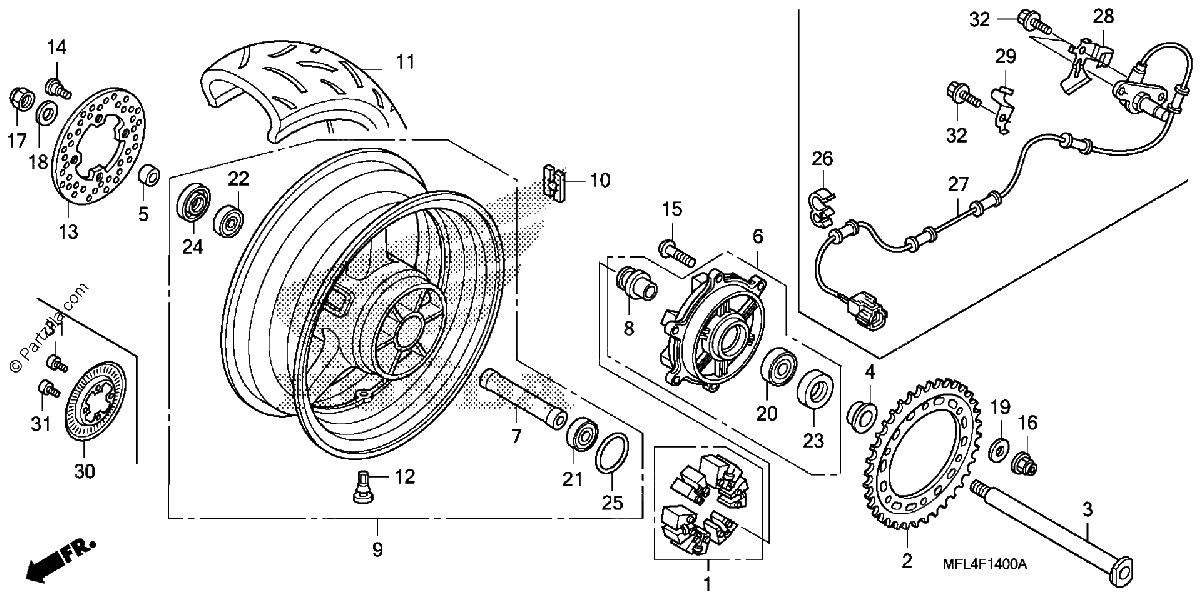

Diagrama de REAR WHEEL

Repuestos

#1
06410-MEL-D20
DAMPER SET, WHEEL
$64.04¢32 019
1
#2
41201-MEL-D20
SPROCKET, FINAL DRIVEN (42T)
$142.54¢71 269
1
#3
42301-MFL-000
AXLE, RR. WHEEL
$92.41¢46 206
1
#4
42311-MFL-700
COLLAR, RR. WHEEL SIDE
$28.98¢14 488
1
#5
42312-MFL-000
COLLAR, RR. BRAKE SIDE
$15.43¢7 713
1
#6
42615-MFL-000
FLANGE SUB-ASSY., RR. DRIVEN
$246.79¢123 394
1
#7
42620-MEL-000
COLLAR, RR. AXLE DISTANCE
$50.60¢25 300
1
#8
42625-MFL-000
COLLAR B, RR. WHEEL DISTANCE
$35.70¢17 850
1
#9
42650-MFL-000ZD
WHEEL SUB-ASSY., RR. (TYPE4)
$1271.15¢635 575
1
#10
42704-MER-D00
WEIGHT, BALANCE (10G)
$10.91¢5 456
1
#10
42705-MER-D00
WEIGHT, BALANCE (20G)
$22.41¢11 206
1
#10
42706-MER-D00
WEIGHT, BALANCE (30G)
$22.09¢11 044
1
#11
42711-MFL-003
TIRE, RR. (190/50ZR17) (M/C 73W) (BS)
No Disponible
1
#11
42711-MFL-004
TIRE, RR. (190/50ZR17) (M/C 73W) (DUNLOP)
$366.35¢183 175
1
#12
42753-ML7-004
VALVE, RIM (DUNLOP)
$14.79¢7 394
1
#12
42753-ML7-003
VALVE, RIM (BS)
$14.79¢7 394
1
#13
43251-MEE-000
DISK, RR. BRAKE
$266.96¢133 481
1
#14
90105-MFL-D20
BOLT, BRAKE DISK (8X24)
$4.86¢2 431
1
#15
90121-MCF-D30
BOLT (10X30)
$3.65¢1 825
1
#16
90304-KAE-871
NUT, U (10MM)
$5.25¢2 625
1
#17
90305-MCF-D00
NUT, U (22MM)
$9.32¢4 663
1
#17
90305-MCF-D01
NUT, U (22MM)
$9.32¢4 663
1
#18
90401-MCJ-000
WASHER (23X37X2.5)
$6.13¢3 063
1
#19
90502-MCF-000
WASHER (10MM)
$3.61¢1 806
1
#20
91051-MFL-003
BEARING, ANGULAR BALL (28X56X15)
$46.56¢23 281
1
#21
91052-MCF-003
BEARING, RADIAL BALL (6005)
$17.43¢8 713
1
#22
91053-MAZ-003
BEARING, RADIAL BALL (6205X2)
$20.06¢10 031
1
#23
91251-MFL-003
DUST SEAL (35X56X7.5)
$9.61¢4 806
1
#24
91252-MFL-003
DUST SEAL (35X57X7.5)
$8.73¢4 363
1
#25
91352-MCF-003
O-RING (51X2)
$4.58¢2 288
1
