CRANKCASE

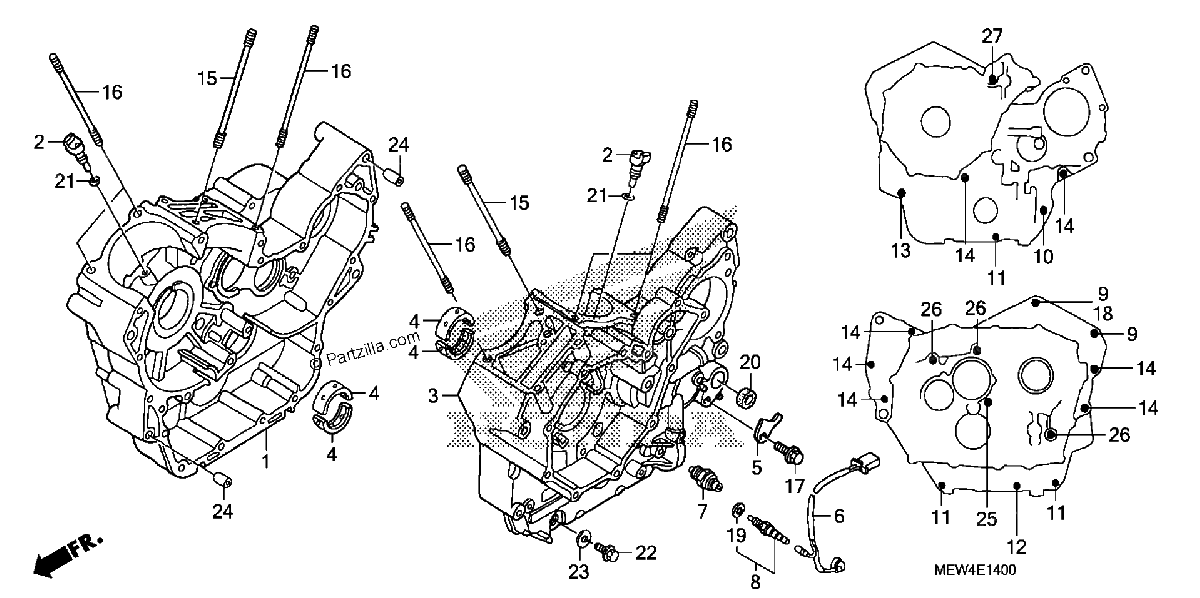

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
CRANKCASE, R.
$1143.24¢571 619
#2
JET, OIL
$14.65¢7 325
#3
CRANKCASE, L.
$1143.24¢571 619
#4
BEARING E, CRANKSHAFT (OVER SIZE) (YELLOW)
$16.83¢8 413
#4
BEARING G, CRANKSHAFT (OVER SIZE) (RED)
$16.83¢8 413
#4
BEARING F, CRANKSHAFT (OVER SIZE) (PINK)
$16.83¢8 413
#4
BEARING D, CRANKSHAFT (GREEN)
$17.56¢8 781
#4
BEARING C, CRANKSHAFT (BROWN)
$17.56¢8 781
#4
BEARING B, CRANKSHAFT (BLACK)
$17.56¢8 781
#4
BEARING A, CRANKSHAFT (BLUE)
$17.56¢8 781
#5
PLATE, SPINDLE
$12.56¢6 281
#6
SUB-HARNESS, ENGINE
$65.35¢32 675
#7
SWITCH Assembly., OIL PRESSURE (DENSO)
$49.28¢24 638
#8
SWITCH Assembly., NEUTRAL (TEC)
$27.56¢13 781
#9
BOLT, FLANGE (8X140)
$5.84¢2 919
#10
BOLT, FLANGE (6X35) (NSHF)
$2.48¢1 238
#11
BOLT, FLANGE (6X50) (NSHF)
$2.31¢1 156
#12
BOLT, FLANGE (6X80) (NSHF)
$2.60¢1 300
#13
BOLT, FLANGE (8X70)
$4.91¢2 456
#14
BOLT, FLANGE (8X80)
$3.36¢1 681
#15
BOLT, STUD (12X146.5)
$10.43¢5 213
#16
BOLT, STUD (10X150.5)
$9.53¢4 763
#17
BOLT, FLANGE (6X14) (CT200)
$2.88¢1 438
#18
WASHER, SEALING (8MM)
$3.36¢1 681
#19
WASHER, NEUTRAL SWITCH
$1.72¢862
#20
OIL SEAL (12.5X25X8) (ARAI)
$8.03¢4 013
#21
O-RING (5X1.7) (ARAI)
$3.65¢1 825
#22
BOLT, DRAIN PLUG (14MM)
$4.33¢2 163
#23
WASHER, DRAIN PLUG (14MM)
$0.80¢400
#24
PIN, DOWEL (14X20)
$2.94¢1 469
#25
BOLT, FLANGE (8X65)
$2.21¢1 106
#26
BOLT, FLANGE (8X80)
$1.68¢838
#27
BOLT, FLANGE (8X125)
$5.98¢2 988
#27
BOLT, FLANGE (8X125)
$5.98¢2 988
