THROTTLE BODY

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

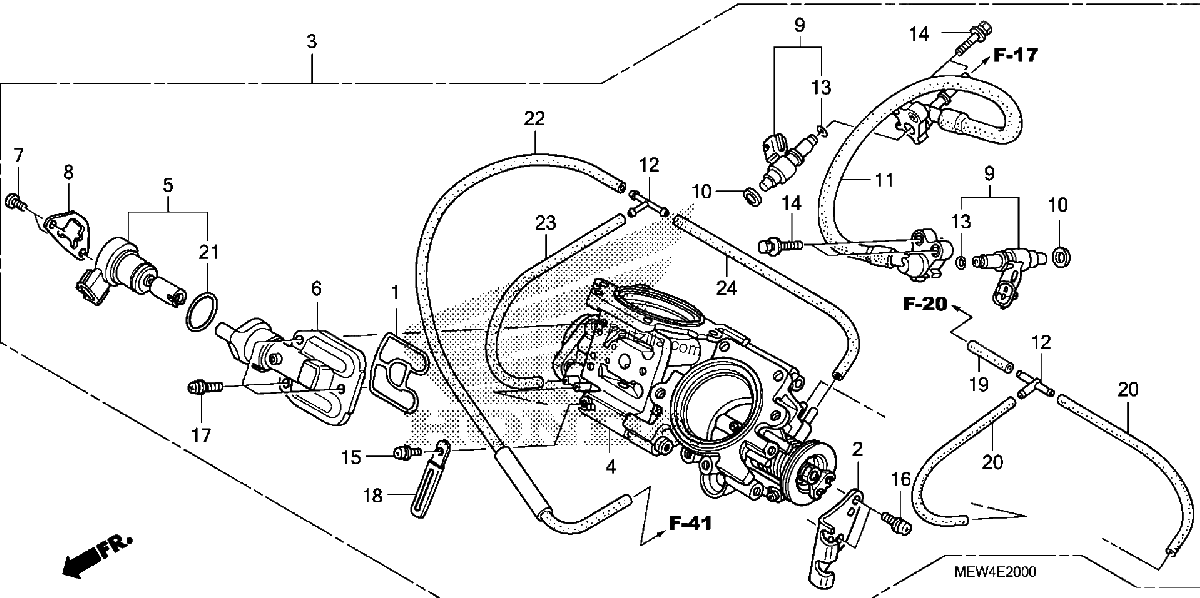

Diagrama de THROTTLE BODY

Repuestos

#1
16075-MEW-921
O-RING
$2.59¢1 294
1
#2
16169-MEW-921
STAY, WIRE
$12.05¢6 026
1
#3
16400-MEW-L01
BODY ASSY., THROTTLE (GQ66C A)
$1321.84¢660 922
1
#4
16401-MEW-L01
BODY ASSY., THROTTLE
$1242.08¢621 040
1
#5
16430-MEW-921
MOTOR ASSY.
$107.66¢53 832
1
#6
16431-MEW-921
BODY, IDLE AIR CONTROL VALVE
$90.87¢45 436
1
#7
16433-HN8-A61
SCREW, TORX
$0.44¢218
1
#8
16433-MEW-921
PLATE, IDLE AIR CONTROL VALVE
$12.26¢6 129
1
#9
16450-MEW-922
INJECTOR ASSY., FUEL
$141.34¢70 668
1
#10
16472-MCW-000
SEAL RING, INJECTOR
$2.83¢1 414
1
#11
16610-MEW-921
PIPE, FUEL
$9.02¢4 508
1
#12
17201-MG9-000
JOINT A, VACUUM TUBE
$17.02¢8 510
1
#13
91301-P7A-004
O-RING (7.8X1.9)
$3.75¢1 874
1
#14
93403-05025-00
BOLT-WASHER (5X25)
$1.45¢724
1
#15
93892-04008-00
SCREW-WASHER (4X8)
$0.60¢299
1
#15
93892-04008-10
SCREW-WASHER (4X8)
$0.60¢299
1
#16
93892-05012-00
SCREW-WASHER (5X12)
$0.98¢489
1
#16
93892-05012-10
SCREW-WASHER (5X12)
$0.98¢489
1
#17
93892-05016-00
SCREW-WASHER (5X16)
$0.76¢380
1
#17
93892-05016-10
SCREW-WASHER (5X16)
$0.76¢380
1
#18
94591-25000
CLIP (2X50)
$2.74¢1 368
1
#19
95005-35001-20M
BULK HOSE, VACUUM (3.5X1000) (3.5X90)
$10.42¢5 210
1
#20
95005-35001-20M
BULK HOSE, VACUUM (3.5X1000) (3.5X90)
$10.42¢5 210
1
#21
16435-MFJ-D01
O-RING (17.8X1.9)
$3.60¢1 800
1
#22
17411-MEW-L00
TUBE (PCV-THROTTLE BODY)
$6.55¢3 278
1
#23
95005-35001-20M
BULK HOSE, VACUUM (3.5X1000) (3.5X90)
$10.42¢5 210
1
#24
95005-35001-20M
BULK HOSE, VACUUM (3.5X1000) (3.5X90)
$10.42¢5 210
1
