WIRE HARNESS CBR250R

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

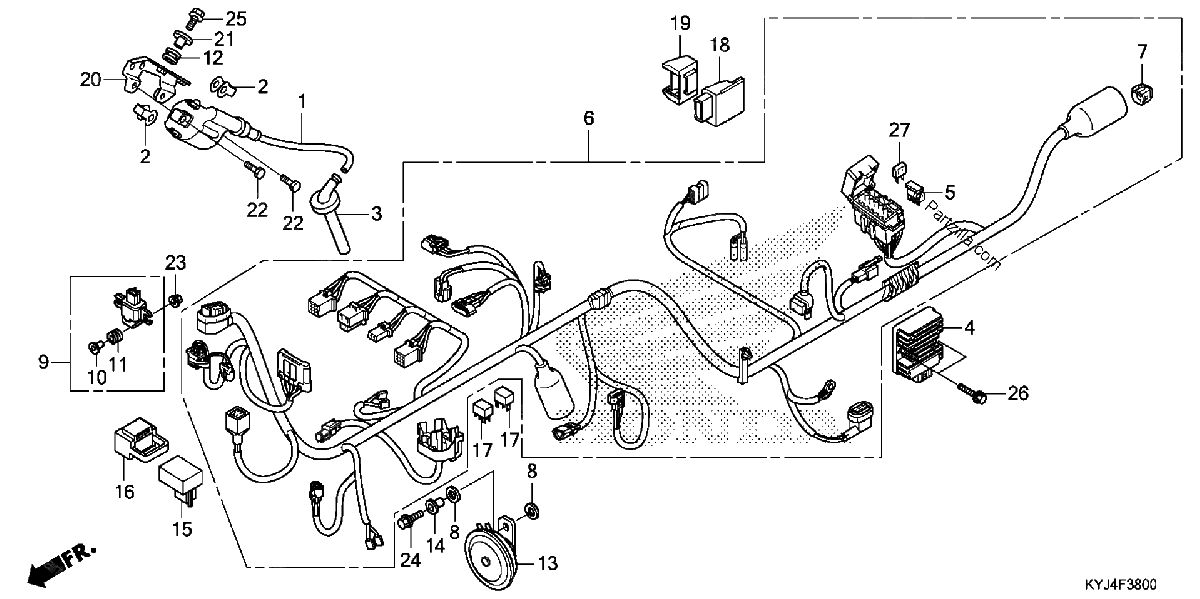

Diagrama de WIRE HARNESS CBR250R

Repuestos

#1
30510-KYJ-901
COIL, IGNITION
$46.96¢23 481
1
#001
30510-KYJ-901
COIL, IGNITION
$46.96¢23 481
1
#002
30520-GFM-900
SPACER, IGNITION COIL
$3.36¢1 681
1
#2
30520-GFM-900
SPACER, IGNITION COIL
$3.36¢1 681
1
#3
30700-KY2-701
CAP Assembly., NOISE SUPPRESSOR
$50.41¢25 206
1
#003
30700-KY2-701
CAP Assembly., NOISE SUPPRESSOR
$50.41¢25 206
1
#004
31600-KVK-901
RECTIFIER Assembly., REGULATOR
$292.02¢146 013
1
#4
31600-KVK-901
RECTIFIER Assembly., REGULATOR
$292.02¢146 013
1
#5
31730-MAS-601
DIODE ASSY., THREE WAY (SUMITOMO)
$12.64¢6 319
1
#005
31730-MAS-601
DIODE ASSY., THREE WAY (SUMITOMO)
$12.64¢6 319
1
#6
32100-KYJ-880
WIRE HARNESS
$497.54¢248 769
1
#006
32100-KYJ-880
WIRE HARNESS
$497.54¢248 769
1
#007
32606-GEV-761
CAP, DUMMY (4P) (RED)
$5.83¢2 913
1
#7
32606-GEV-761
CAP, DUMMY (4P) (RED)
$5.83¢2 913
1
#008
33714-KL3-620
RUBBER, TAILLIGHT BRACKET
$3.24¢1 619
1
#8
33714-KL3-620
RUBBER, TAILLIGHT BRACKET
$3.24¢1 619
1
#9
35160-KPP-T01
SENSOR Assembly., BANK ANGLE
$89.74¢44 869
1
#009
35160-KPP-T01
SENSOR Assembly., BANK ANGLE
$89.74¢44 869
1
#010
35162-MGC-003
COLLAR
$5.78¢2 888
1
#10
35162-MGC-003
COLLAR
$5.78¢2 888
1
#011
35163-MGC-003
GROMMET
$2.89¢1 444
1
#11
35163-MGC-003
GROMMET
$2.89¢1 444
1
#12
36037-657-000
GROMMET A, TUBE
$7.46¢3 731
1
#012
36037-657-000
GROMMET A, TUBE
$7.46¢3 731
1
#12
36043-657-000
GROMMET, WIRE HARNESS
$7.46¢3 731
1
#012
36043-657-000
GROMMET, WIRE HARNESS
$7.46¢3 731
1
#013
38110-KYJ-901
HORN (HIGH)
$35.70¢17 850
1
#13
38110-KYJ-901
HORN (HIGH)
$35.70¢17 850
1
#14
38117-KFE-701
COLLAR, HORN SETTING
$0.99¢494
1
#014
38117-KFE-701
COLLAR, HORN SETTING
$0.99¢494
1
#015
38301-KYJ-941
RELAY, TURN SIGNAL POSITION
$180.89¢90 444
1
#15
38301-KYJ-941
RELAY, TURN SIGNAL POSITION
$180.89¢90 444
1
#15
38301-MCV-N11
RELAY, TURN SIGNAL POSITION
$47.04¢23 519
1
#015
38301-MCV-N11
RELAY, TURN SIGNAL POSITION
$47.04¢23 519
1
#016
38306-KYJ-941
SUSPENSION, TURN SIGNAL RELAY
$2.73¢1 363
1
#16
38306-KYJ-941
SUSPENSION, TURN SIGNAL RELAY
$2.73¢1 363
1
#17
38501-KWN-901
RELAY, POWER (MICRO ISO 4P) (OMRON)
$7.43¢3 713
1
#017
38501-KWN-901
RELAY, POWER (MICRO ISO 4P) (OMRON)
$7.43¢3 713
1
#018
38770-KYJ-922
PGM-FI UNIT
$312.95¢156 475
1
#18
38770-KYJ-922
PGM-FI UNIT
$312.95¢156 475
1
#019
38771-GFM-900
SUSPENSION, ENGINE CONTROL UNIT
$3.24¢1 619
1
#19
38771-GFM-900
SUSPENSION, ENGINE CONTROL UNIT
$3.24¢1 619
1
#020
50204-KYJ-900
STAY, IGNITION COIL
$6.35¢3 175
1
#20
50204-KYJ-900
STAY, IGNITION COIL
$6.35¢3 175
1
#021
50214-KYJ-900
COLLAR, IGNITION COIL MOUNTING
$1.06¢531
1
#21
50214-KYJ-900
COLLAR, IGNITION COIL MOUNTING
$1.06¢531
1
#22
92101-06020-4J
BOLT, HEX. (6X20)
$1.79¢894
1
#022
92101-06020-4J
BOLT, HEX. (6X20)
$1.79¢894
1
#23
94050-06080
NUT, FLANGE (6MM)
$0.80¢400
1
#023
94050-06080
NUT, FLANGE (6MM)
$0.80¢400
1
#24
95701-06016-00
BOLT, FLANGE (6X16)
$2.09¢1 044
1
#024
95701-06016-00
BOLT, FLANGE (6X16)
$2.09¢1 044
1
#25
95701-06016-08
BOLT, FLANGE (6X16)
$1.77¢888
1
#025
95701-06016-08
BOLT, FLANGE (6X16)
$1.77¢888
1
#026
95701-06020-00
BOLT, FLANGE (6X20)
$2.27¢1 138
1
#26
95701-06020-00
BOLT, FLANGE (6X20)
$2.27¢1 138
1
#027
98200-41000
FUSE, MINI (10A)
$1.70¢850
1
#27
98200-41000
FUSE, MINI (10A)
$1.70¢850
1
