REAR SHOCK ABSORBER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

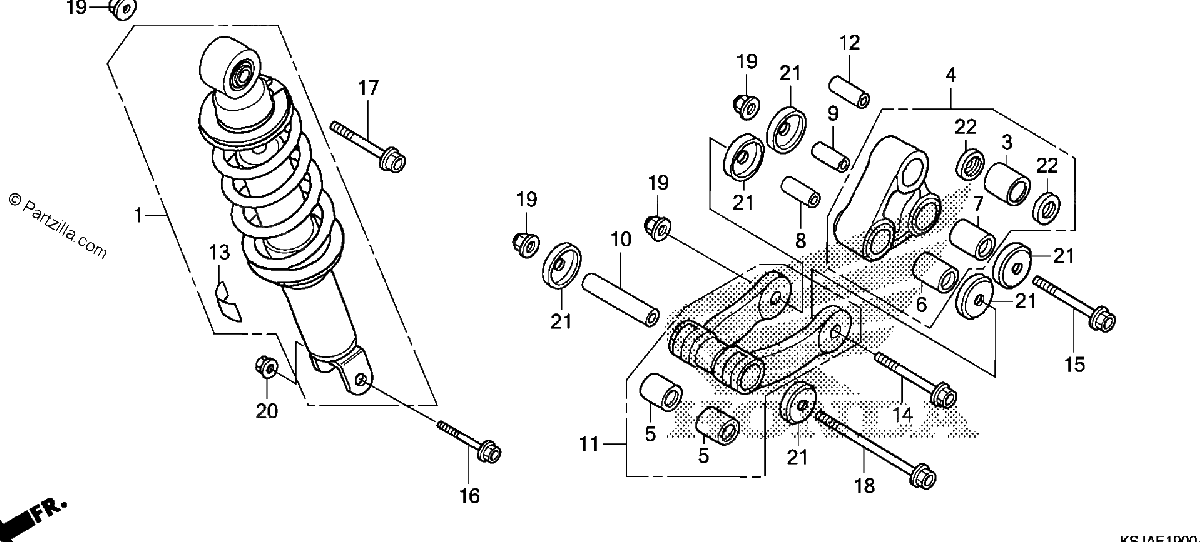

Diagrama de REAR SHOCK ABSORBER

Repuestos

#1
52400-KSJ-305
CUSHION ASSY., RR. (COO) (SHOWA)
$686.66¢343 331
1
#1
52400-KSJ-A31
CUSHION ASSY., RR. (SHOWA)
$686.66¢343 331
1
#3
52452-GN1-000
BUSH, DAMPER (LOWER)
$14.20¢7 100
1
#4
52465-KSJ-000
ARM SUB-ASSY., CUSHION
$216.63¢108 313
1
#5
52472-GJ1-003
BUSH, CUSHION CONNECTING ROD
$28.40¢14 200
1
#6
52472-GN1-000
BUSH, CUSHION ARM
$28.63¢14 313
1
#7
52472-KN4-A60
BUSH, CUSHION ARM
$25.92¢12 962
1
#8
52473-GE2-000
COLLAR, CONNECTING ROD PIVOT
$21.41¢10 706
1
#9
52464-GW6-000
COLLAR, CUSHION ARM
$10.14¢5 069
1
#10
52473-GN1-000
COLLAR, CONNECTING ROD
$20.51¢10 256
1
#11
52475-KTK-000
ROD SUB-ASSY., CUSHION CONNECTING
$234.94¢117 469
1
#12
52486-GN1-000
COLLAR, DAMPER (LOWER)
$10.90¢5 450
1
#13
87516-KV6-610
LABEL, RR. DAMPER (ENGLISH)
$6.35¢3 175
1
#14
90128-GN1-000
BOLT, FLANGE (10X61)
$8.30¢4 150
1
#15
90128-GC5-000
BOLT, FLANGE (10X70)
$18.44¢9 219
1
#16
90150-GN1-000
BOLT, FLANGE (8X47)
$7.28¢3 638
1
#17
90152-GN1-000
BOLT, FLANGE (10X55)
$1.80¢900
1
#18
90130-KA3-730
BOLT, FLANGE (10X98)
$25.13¢12 563
1
#19
90304-KN4-A61
NUT, U FLANGE (10MM)
$3.65¢1 825
1
#20
90309-428-731
NUT, FLANGE (M8X1.25) (SELF-LOCK)
$4.06¢2 031
1
#20
90309-KF0-003
NUT, FLANGE (8MM)
$4.06¢2 031
1
#21
91262-KN4-A61
CAP, DUST SEAL
$8.40¢4 200
1
#22
91263-GN1-003
SEAL, DAMPER (LOWER)
$5.76¢2 881
1
