CARBURETOR CRF100F

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

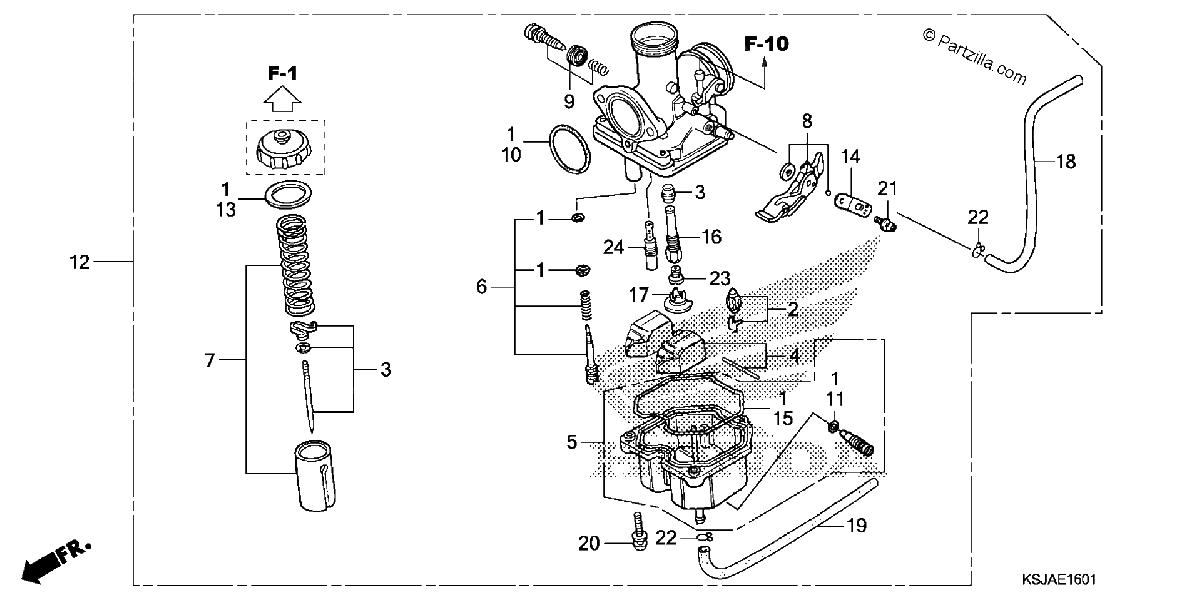

Diagrama de CARBURETOR CRF100F

Repuestos

#1
16010-KN4-A10
GASKET SET
$15.36¢7 681
1
#2
16011-KN4-A61
VALVE SET, FLOAT
$58.65¢29 325
1
#3
16012-KSJ-A01
NEEDLE SET, JET
$37.83¢18 913
1
#4
16013-KN4-A10
FLOAT SET
$40.24¢20 119
1
#5
16015-KN4-A10
CHAMBER SET, FLOAT
$125.57¢62 787
1
#6
16016-KSJ-A01
SCREW SET A
$23.38¢11 688
1
#7
16022-KN4-A61
VALVE SET, THROTTLE
$46.31¢23 156
1
#8
16025-KCN-751
LEVER SET, CHOKE
$49.30¢24 650
1
#9
16028-KEB-G01
SCREW SET B
$13.95¢6 975
1
#9
16028-KEH-900
SCREW SET B
$13.95¢6 975
1
#10
16075-GHB-B70
O-RING (2.4X29)
$9.47¢4 738
1
#11
16075-GHB-640
O-RING (1.3X4.3)
$3.65¢1 825
1
#12
16100-KSJ-A31
CARBURETOR ASSY. (PDCBW A)
$319.69¢159 844
1
#13
16110-KN4-651
GASKET, TOP
$9.90¢4 950
1
#14
16119-440-004
PLATE, STAY
$12.56¢6 281
1
#15
16163-KCS-920
GASKET, FLOAT CHAMBER
$13.83¢6 913
1
#16
16165-KN4-A61
HOLDER, NEEDLE JET
$35.60¢17 800
1
#17
16168-382-014
HOLDER, JET
$10.46¢5 231
1
#18
16199-KN4-A61
TUBE, AIR VENT
$7.39¢3 694
1
#19
16199-435-771
TUBE, OVERFLOW
$13.22¢6 613
1
#20
93892-04016-08
SCREW-WASHER (4X16)
$0.94¢469
1
#20
93892-04016-18
SCREW-WASHER (4X16)
$0.94¢469
1
#21
93892-05012-08
SCREW-WASHER (5X12)
$1.47¢737
1
#21
93892-05012-18
SCREW-WASHER (5X12)
$1.47¢737
1
#22
95002-02659
CLIP, TUBE (B6.5)
$1.41¢706
1
#23
99101-393-0920
JET, MAIN (#92)
$9.68¢4 838
1
#23
99101-GHB-0920
JET, MAIN (#92)
$9.68¢4 838
1
#23
99101-GHB-0980
JET, MAIN (#98)
$7.76¢3 881
1
#24
99104-KN4-0350
JET, SLOW (#35)
$12.84¢6 419
1
