FRONT BRAKE CALIPER CBR250RA

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

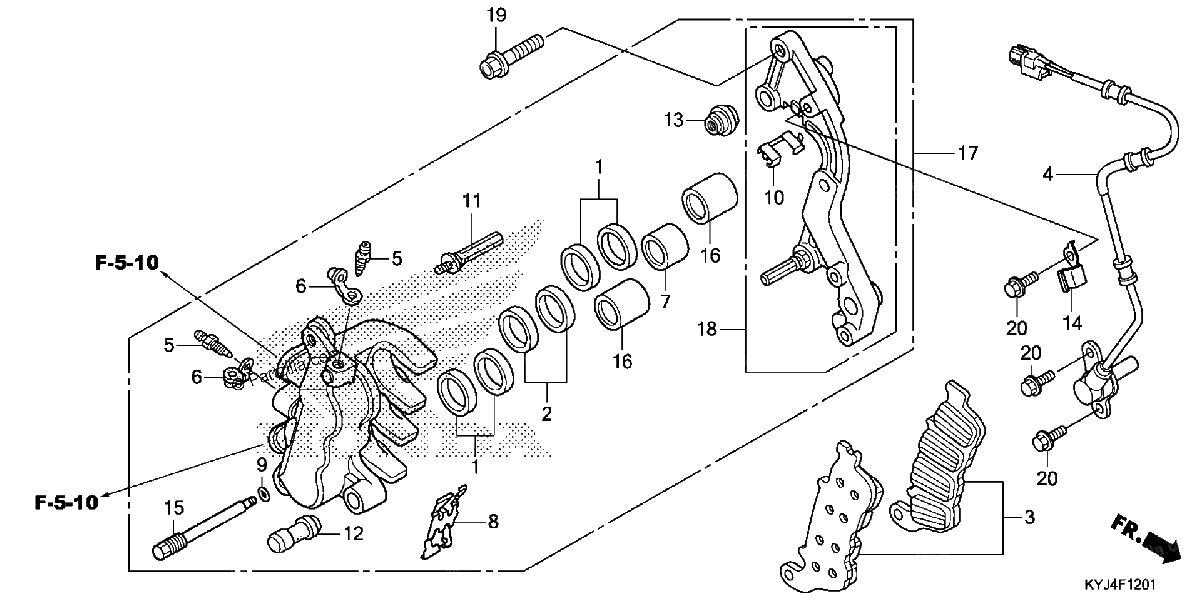

Diagrama de FRONT BRAKE CALIPER CBR250RA

Repuestos

#001
06431-MA3-405
SEAL SET, PISTON
$8.89¢4 444
1
#1
06431-MA3-405
SEAL SET, PISTON
$8.89¢4 444
1
#2
06451-MZ2-405
SEAL SET, PISTON
$14.68¢7 338
1
#002
06451-MZ2-405
SEAL SET, PISTON
$14.68¢7 338
1
#003
06455-KYJ-911
PAD SET, FR.
$65.90¢32 950
1
#3
06455-KYJ-911
PAD SET, FR.
$65.90¢32 950
1
#004
38520-KYJ-911
SENSOR, FR. WHEEL SPEED
$129.86¢64 931
1
#4
38520-KYJ-911
SENSOR, FR. WHEEL SPEED
$129.86¢64 931
1
#5
43352-568-003
SCREW, BLEEDER (NISSIN)
$9.63¢4 813
1
#005
43352-568-003
SCREW, BLEEDER (NISSIN)
$9.63¢4 813
1
#006
43353-461-771
CAP, BLEEDER
$6.13¢3 063
1
#6
43353-461-771
CAP, BLEEDER
$6.13¢3 063
1
#007
45107-MAJ-G41
PISTON A (22X27)
$50.45¢25 225
1
#7
45107-MAJ-G41
PISTON A (22X27)
$50.45¢25 225
1
#008
45108-KYJ-911
SPRING, PAD
$37.98¢18 988
1
#8
45108-KYJ-911
SPRING, PAD
$37.98¢18 988
1
#9
45111-MAJ-G41
RING, STOPPER
$4.61¢2 306
1
#009
45111-MAJ-G41
RING, STOPPER
$4.61¢2 306
1
#010
45112-MZ2-006
RETAINER, BRACKET
$10.34¢5 169
1
#10
45112-MZ2-006
RETAINER, BRACKET
$10.34¢5 169
1
#11
45131-ML7-921
BOLT A, PIN
$17.94¢8 969
1
#011
45131-ML7-921
BOLT A, PIN
$17.94¢8 969
1
#12
45132-166-016
BOOT, PIN BUSH (NISSIN)
$6.61¢3 306
1
#012
45132-166-016
BOOT, PIN BUSH (NISSIN)
$6.61¢3 306
1
#13
45133-MA3-006
BOOT B
$6.61¢3 306
1
#013
45133-MA3-006
BOOT B
$6.61¢3 306
1
#14
45161-MCW-D10
CLAMP, SPEED SENSOR CORD
$6.23¢3 113
1
#014
45161-MCW-D10
CLAMP, SPEED SENSOR CORD
$6.23¢3 113
1
#015
45215-MBT-D51
PIN, HANGER
$8.89¢4 444
1
#15
45215-MBT-D51
PIN, HANGER
$8.89¢4 444
1
#016
45218-MAJ-G41
PISTON B (27X35)
$50.45¢25 225
1
#16
45218-MAJ-G41
PISTON B (27X35)
$50.45¢25 225
1
#17
45250-KYJ-911
CALIPER SUB-Assembly., Right Front.
$302.79¢151 394
1
#017
45250-KYJ-911
CALIPER SUB-Assembly., Right Front.
$302.79¢151 394
1
#18
45290-MER-R81
BRACKET SUB-Assembly., Right Front.
$153.75¢76 875
1
#018
45290-MER-R81
BRACKET SUB-Assembly., Right Front.
$153.75¢76 875
1
#19
90131-KBV-003
BOLT, FLANGE (8X32) (SAGA)
$5.76¢2 881
1
#019
90131-KBV-003
BOLT, FLANGE (8X32) (SAGA)
$5.76¢2 881
1
#020
96001-06010-07
BOLT, FLANGE (6X10)
$2.09¢1 044
1
#20
96001-06010-07
BOLT, FLANGE (6X10)
$2.09¢1 044
1
