SWINGARM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

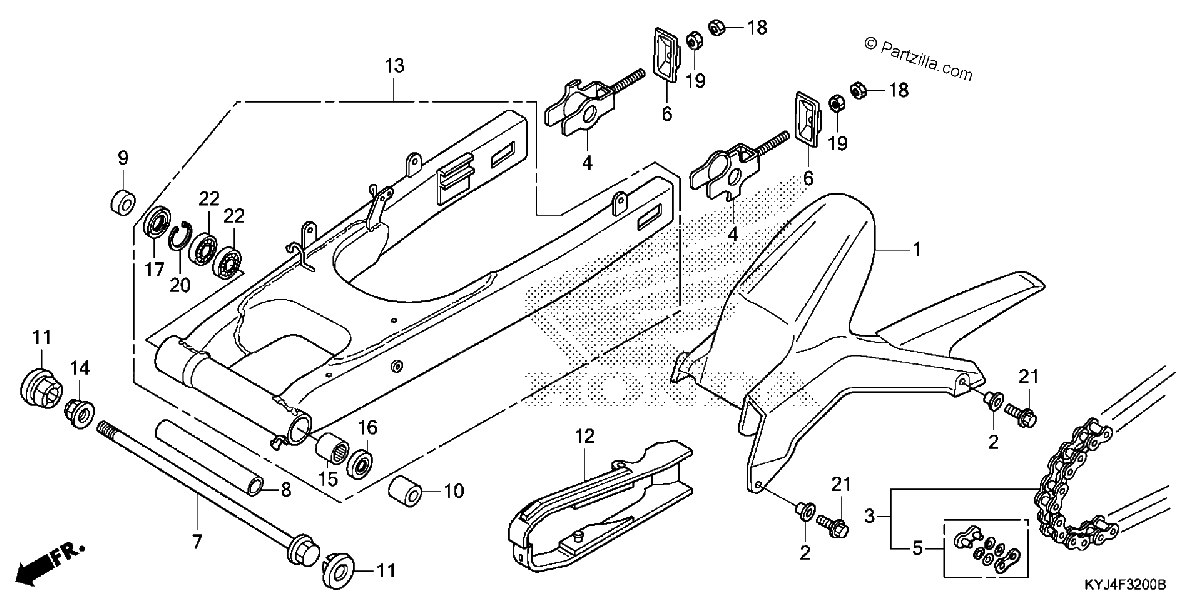

Diagrama de SWINGARM

Repuestos

#1
40510-KYJ-900
CASE, DRIVE CHAIN
$35.48¢17 739
1
#001
40510-KYJ-900
CASE, DRIVE CHAIN
$35.48¢17 739
1
#002
40511-KYJ-900
COLLAR
$0.70¢351
1
#2
40511-KYJ-900
COLLAR
$0.70¢351
1
#003
40540-KYJ-901
CHAIN, DRIVE (RK520KLO-120LJFZ) (RK EXCEL)
$148.00¢74 002
1
#3
40540-KYJ-901
CHAIN, DRIVE (RK520KLO-120LJFZ) (RK EXCEL)
$148.00¢74 002
1
#003
40540-KYJ-902
CHAIN, DRIVE (DID520VF-120ZB) (DAIDO)
$148.00¢74 002
1
#3
40540-KYJ-902
CHAIN, DRIVE (DID520VF-120ZB) (DAIDO)
$148.00¢74 002
1
#4
40543-KYJ-900
ADJUSTER, CHAIN
$8.84¢4 422
1
#004
40543-KYJ-900
ADJUSTER, CHAIN
$8.84¢4 422
1
#005
40545-KYJ-902
MASTER LINK (DAIDO)
$15.55¢7 774
1
#5
40545-KYJ-902
MASTER LINK (DAIDO)
$15.55¢7 774
1
#5
40545-KYJ-901
MASTER LINK (RK EXCEL)
$15.55¢7 774
1
#005
40545-KYJ-901
MASTER LINK (RK EXCEL)
$15.55¢7 774
1
#006
40546-KYJ-900
CAP, SWINGARM END
$3.51¢1 754
1
#6
40546-KYJ-900
CAP, SWINGARM END
$3.51¢1 754
1
#7
52101-KYJ-900
BOLT, SWINGARM PIVOT
$17.25¢8 625
1
#007
52101-KYJ-900
BOLT, SWINGARM PIVOT
$17.25¢8 625
1
#008
52102-ML4-000
COLLAR, PIVOT DISTANCE
$33.11¢16 554
1
#8
52102-ML4-000
COLLAR, PIVOT DISTANCE
$33.11¢16 554
1
#009
52105-MJ0-000
COLLAR B, SWINGARM PIVOT
$6.66¢3 329
1
#9
52105-MJ0-000
COLLAR B, SWINGARM PIVOT
$6.66¢3 329
1
#10
52106-KYJ-900
COLLAR, PIVOT
$14.92¢7 458
1
#010
52106-KYJ-900
COLLAR, PIVOT
$14.92¢7 458
1
#11
52161-KYJ-900
CAP, SWINGARM PIVOT
$1.64¢822
1
#011
52161-KYJ-900
CAP, SWINGARM PIVOT
$1.64¢822
1
#012
52170-KYJ-900
SLIDER, CHAIN
$7.41¢3 703
1
#12
52170-KYJ-900
SLIDER, CHAIN
$7.41¢3 703
1
#13
52200-KYJ-900
SWINGARM SUB-ASSY., RR.
$290.78¢145 389
1
#013
52200-KYJ-900
SWINGARM SUB-ASSY., RR.
$290.78¢145 389
1
#14
90305-KCJ-951
NUT, U (14MM) (FUJI SEIMITSU)
$6.96¢3 479
1
#014
90305-KCJ-951
NUT, U (14MM) (FUJI SEIMITSU)
$6.96¢3 479
1
#15
91071-MJ0-003
BEARING, NEEDLE (22X29X30) (NTN)
$46.30¢23 149
1
#015
91071-MJ0-003
BEARING, NEEDLE (22X29X30) (NTN)
$46.30¢23 149
1
#15
91071-MJ0-004
BEARING, NEEDLE (THOMPSON)
$39.35¢19 676
1
#015
91071-MJ0-004
BEARING, NEEDLE (THOMPSON)
$39.35¢19 676
1
#015
91072-KYJ-711
BEARING, NEEDLE (22X29X30) (NRB)
$39.35¢19 676
1
#15
91072-KYJ-711
BEARING, NEEDLE (22X29X30) (NRB)
$39.35¢19 676
1
#016
91205-965-003
OIL SEAL (22X31X5) (ARAI)
$6.47¢3 237
1
#16
91205-965-003
OIL SEAL (22X31X5) (ARAI)
$6.47¢3 237
1
#017
91213-MB2-006
DUST SEAL (22X35X7) (NOK)
$8.31¢4 157
1
#17
91213-MB2-003
DUST SEAL (22X35X7) (ARAI)
$8.31¢4 157
1
#17
91213-MB2-006
DUST SEAL (22X35X7) (NOK)
$8.31¢4 157
1
#017
91213-MB2-003
DUST SEAL (22X35X7) (ARAI)
$8.31¢4 157
1
#018
94002-08000-0S
NUT, HEX. (8MM)
$1.47¢736
1
#18
94002-08000-0S
NUT, HEX. (8MM)
$1.47¢736
1
#019
94031-08000
NUT, HEX. (8MM)
$1.26¢633
1
#19
94031-08000
NUT, HEX. (8MM)
$1.26¢633
1
#020
94520-35000
CIRCLIP, INNER (35MM)
$2.30¢1 150
1
#20
94520-35000
CIRCLIP, INNER (35MM)
$2.30¢1 150
1
#021
95701-06012-07
BOLT, FLANGE (6X12)
$1.92¢960
1
#21
95701-06012-07
BOLT, FLANGE (6X12)
$1.92¢960
1
#22
96100-62020-10
BEARING, RADIAL BALL (6202)
$15.59¢7 797
1
#022
96100-62020-10
BEARING, RADIAL BALL (6202)
$15.59¢7 797
1
