AIR CLEANER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

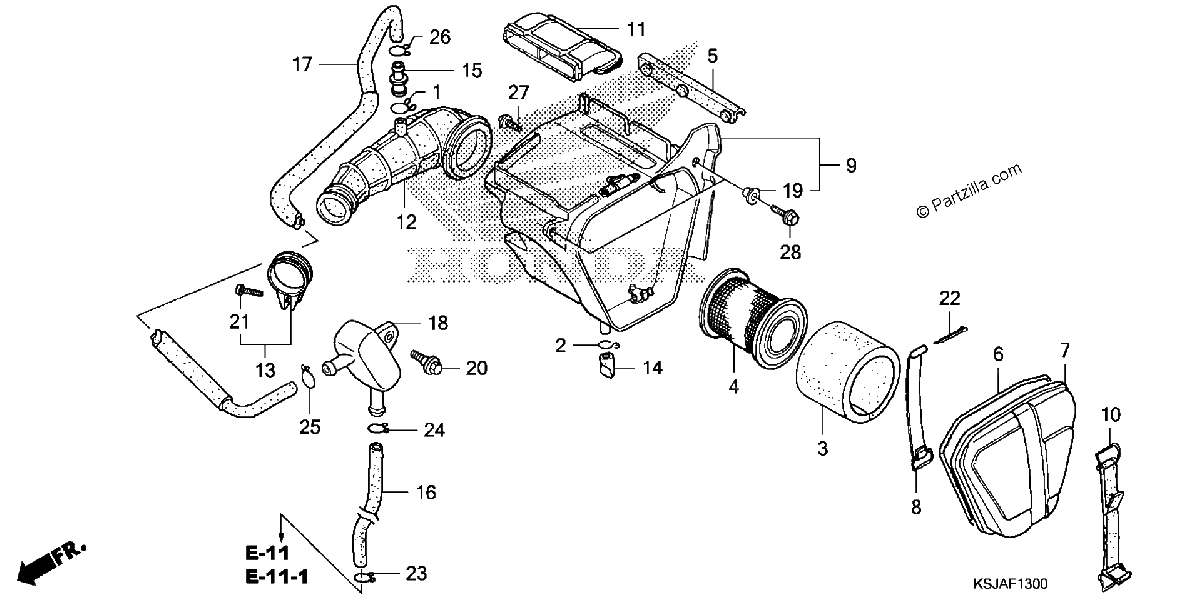

Diagrama de AIR CLEANER

Repuestos

#1
15771-KV6-000
CLIP, OIL DRAIN TUBE
$4.16¢2 081
1
#2
15772-292-010
CLIP, BREATHER TUBE
$3.36¢1 679
1
#3
17211-GN1-760
ELEMENT, AIR CLEANER
$10.25¢5 123
1
#3
17254-HF7-000
AIR CLEANER
$10.25¢5 123
1
#4
17212-KJ2-003
HOLDER, AIR CLEANER ELEMENT
$53.81¢26 904
1
#5
17215-GN1-000
SPLASH GUARD, AIR CLEANER
$13.48¢6 739
1
#6
17219-GN1-000
SEAL, AIR CLEANER COVER
$8.15¢4 077
1
#6
17222-MN4-405
SEAL, AIR CLEANER COVER
$8.15¢4 077
1
#7
17220-GN1-760
COVER, AIR CLEANER
$28.52¢14 260
1
#8
17225-GN1-000
SPRING
$9.61¢4 807
1
#9
17230-KN4-A60
HOUSING, AIR CLEANER
$72.28¢36 139
1
#10
17235-GN1-680
BAND, AIR CLEANER COVER
$12.83¢6 417
1
#11
17240-KB7-000
DUCT, AIR IN.
$42.96¢21 482
1
#12
17253-GN1-A40
TUBE, AIR CLEANER CONNECTING
$26.15¢13 075
1
#13
17255-GN1-000
BAND, AIR CLEANER CONNECTING TUBE
$8.88¢4 439
1
#14
17358-170-000
TUBE, DRAIN
$4.17¢2 087
1
#15
17359-428-000
JOINT, BREATHER TUBE
$6.08¢3 042
1
#16
17371-GN1-A41
TUBE A, BREATHER
$5.72¢2 858
1
#17
17372-GN1-A40
TUBE B, BREATHER
$11.11¢5 555
1
#18
17551-GCF-A20
TANK, STORAGE
$29.22¢14 611
1
#19
61107-KK6-000
WASHER (6MM)
$3.42¢1 708
1
#20
90111-ML0-730
BOLT, FLANGE (6MM)
$4.20¢2 099
1
#21
93500-04020-0G
SCREW, PAN (4X20)
$0.92¢460
1
#22
94201-30450
PIN, SPLIT (3.0X45)
$1.17¢586
1
#23
95002-02100
CLIP, TUBE (B10)
$2.24¢1 121
1
#24
95002-02120
CLIP, TUBE (B12)
$2.20¢1 098
1
#25
95002-50000
CLIP, TUBE (C9)
$1.41¢707
1
#26
95002-80000
CLIP, TUBE (C12)
$0.55¢276
1
#27
95701-06012-00
BOLT, FLANGE (6X12)
$1.92¢960
1
#28
95701-06014-07
BOLT, FLANGE (6X14)
$1.63¢816
1
