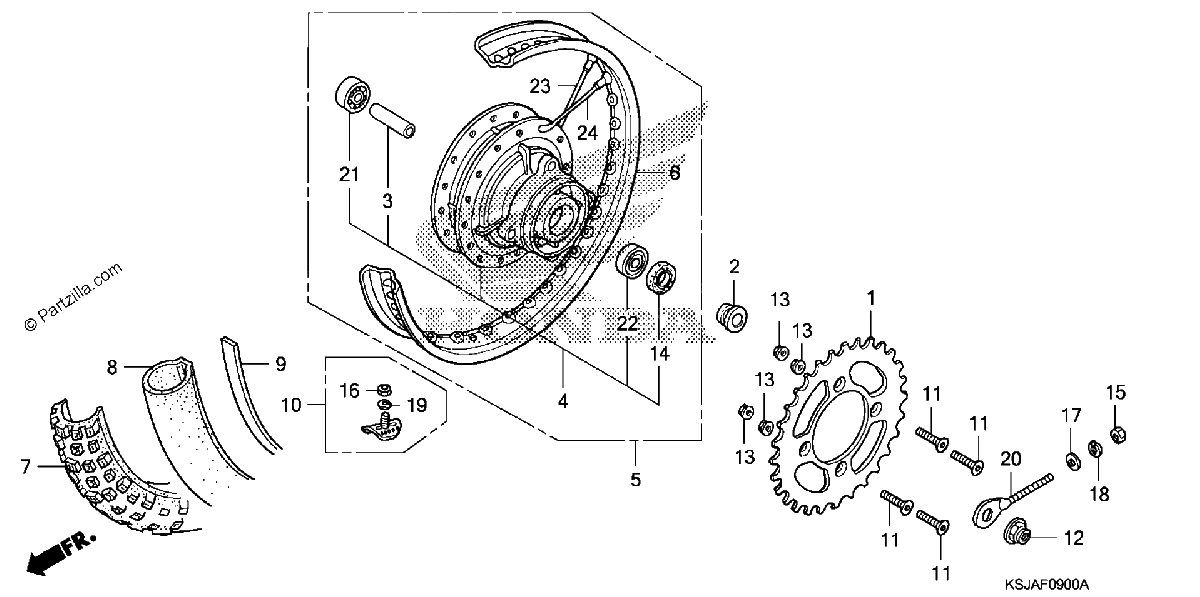

REAR WHEEL
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
SPROCKET, FINAL DRIVEN (46T)
$66.72¢33 362
#2
COLLAR, RR. WHEEL SIDE
$15.80¢7 900
#3
COLLAR, RR. AXLE DISTANCE
$15.77¢7 883
#4
HUB SUB-ASSY., RR.
$276.70¢138 351
#5
WHEEL SUB-ASSY., RR. (COO)
$467.34¢233 668
#5
WHEEL SUB-ASSY., RR.
$467.34¢233 668
#6
RIM, RR. WHEEL
$56.99¢28 497
#7
TIRE, RR. (3.60-14) (4PR/43P) (IRC)
$101.05¢50 525
#8
TUBE, TIRE (3.00-14) (BS)
No Disponible
#8
TUBE, TIRE (3.00-14) (NITTO)
No Disponible
#8
TUBE, TIRE (3.60-14) (IRC)
No Disponible
#8
TUBE, TIRE (3.00-14) (NITTO)
No Disponible
#8
TUBE, TIRE (3.60-14) (INOUE)
No Disponible
#8
TUBE, RR. WHEEL
No Disponible
#8
TUBE, TIRE (2.75-14) (BS)
No Disponible
#8
TUBE, RR. WHEEL (3.00-14) (INOUE)
No Disponible
#8
TUBE, TIRE (3.60-14) (INOUE)
No Disponible
#9
FLAP, RR. TUBE (IRC)
$7.72¢3 858
#10
STOPPER, BEAD (1.60)
$39.30¢19 648
#11
SCREW, FLAT (8X31)
$3.44¢1 719
#12
NUT, FLANGE (12MM) (FUSE RASHI)
$4.30¢2 151
#13
NUT, FLANGE (M8X1.25) (SELF-LOCK)
$3.74¢1 869
#13
NUT, FLANGE (8MM)
$3.74¢1 869
#14
DUST SEAL (21X37X5.5) (ARAI)
$5.63¢2 818
#15
NUT, HEX. (6MM)
$1.54¢771
#15
NUT, HEX. (6MM)
$1.54¢771
#16
NUT, HEX. (8MM)
$1.54¢771
#17
WASHER, PLAIN (6MM)
$0.77¢385
#17
WASHER, PLAIN (6MM)
$0.77¢385
#17
WASHER, PLAIN (6MM)
$0.77¢385
#18
WASHER, SPRING (6MM)
$1.12¢558
#19
WASHER, SPRING (8MM)
$1.12¢558
#20
ADJUSTER S, R. CHAIN
$4.83¢2 415
#21
BEARING, RADIAL BALL (6201U)
$11.05¢5 526
#22
BEARING, RADIAL BALL (6301U)
$15.31¢7 653
#23
SPOKE SET B (10X125.5)
$2.12¢1 058
#24
SPOKE SET B (10X125.0)
$2.12¢1 058
