RIGHT CRANKCASE COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

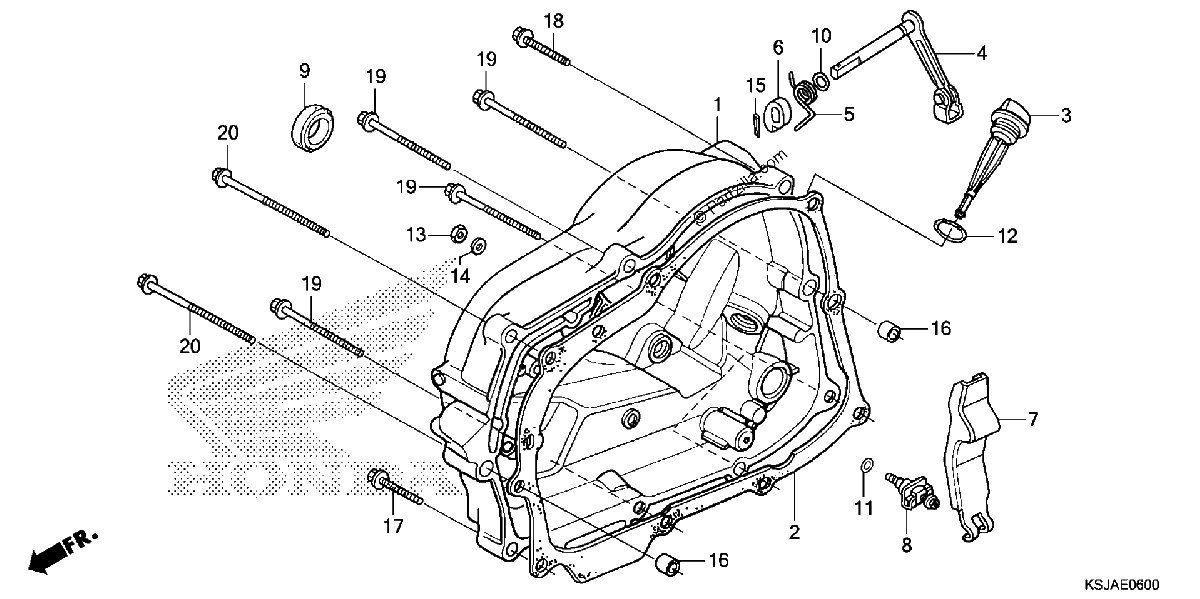

Diagrama de RIGHT CRANKCASE COVER

Repuestos

#1
11330-GN1-A81
COVER, R. CRANKCASE
$194.90¢97 450
1
#2
11393-KN4-751
GASKET, R. CRANKCASE COVER
$21.81¢10 906
1
#3
15650-KA9-680
DIPSTICK, OIL
$9.44¢4 719
1
#4
22810-GN1-760
LEVER, CLUTCH
$57.47¢28 737
1
#5
22815-149-000
SPRING, CLUTCH LEVER
$3.28¢1 638
1
#6
22821-116-000
CAM, CLUTCH LIFTER
$9.40¢4 700
1
#7
22830-436-000
LEVER, CLUTCH ADJUSTING
$29.04¢14 519
1
#8
22831-436-000
SCREW, CLUTCH ADJUSTING
$34.63¢17 313
1
#9
91204-286-003
OIL SEAL (18X29X7)
$5.24¢2 619
1
#10
91310-MC7-003
O-RING B (6.8X1.9)
$3.65¢1 825
1
#10
91301-027-000
O-RING (6.8X1.9)
$3.65¢1 825
1
#10
91306-PJ4-000
O-RING (6.8X1.9)
$3.65¢1 825
1
#11
91301-704-000
O-RING (6MM)
$3.65¢1 825
1
#12
91307-035-000
O-RING (18X3)
$3.65¢1 825
1
#13
94001-06000-0S
NUT, HEX. (6MM)
$1.68¢838
1
#13
94001-06200-0S
NUT, HEX. (6MM)
$1.68¢838
1
#14
94101-06000
WASHER, PLAIN (6MM)
$0.84¢419
1
#14
94101-06080
WASHER, PLAIN (6MM)
$0.84¢419
1
#14
94101-06800
WASHER, PLAIN (6MM)
$0.84¢419
1
#15
94201-20150
PIN, SPLIT (2.0X15)
$1.34¢669
1
#16
94301-08140
PIN, DOWEL (8X14)
$2.89¢1 444
1
#17
96001-06035-00
BOLT, FLANGE (6X35)
$1.80¢900
1
#18
96001-06040-00
BOLT, FLANGE (6X40)
$2.79¢1 394
1
#19
96001-06080-00
BOLT, FLANGE (6X80)
$2.85¢1 425
1
#20
96001-06100-00
BOLT, FLANGE (6X100)
$2.52¢1 263
1
