SWINGARM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

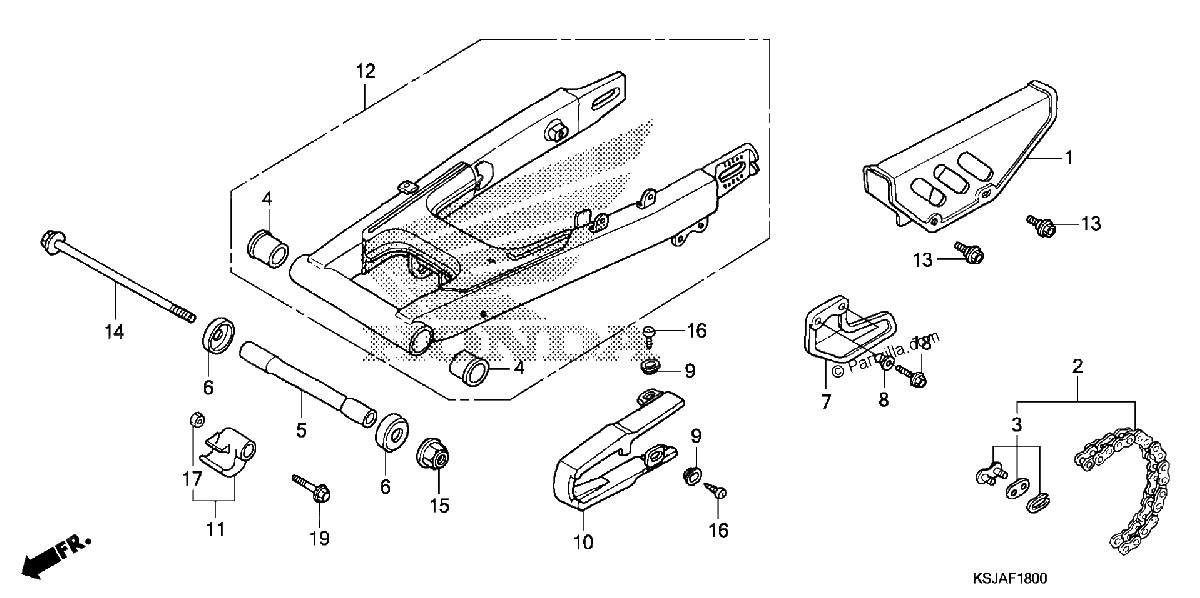

Diagrama de SWINGARM

Repuestos

#1
40510-GN1-760
CASE, DRIVE CHAIN
$34.51¢17 256
1
#2
40530-GN1-A82
CHAIN, DRIVE (RK420MSZ1-110RJ) (RK EXCEL)
$52.72¢26 358
1
#3
40531-GM7-641
MASTER LINK (RK EXCEL)
$4.31¢2 156
1
#4
52109-GJ1-003
BUSH, PIVOT THRUST
$19.70¢9 850
1
#5
52141-GN1-000
COLLAR, SWINGARM
$54.84¢27 422
1
#6
52144-360-005
CAP, DUST SEAL (NOK)
$12.59¢6 296
1
#7
52156-GN1-000
GUARD, CHAIN
$28.04¢14 018
1
#8
52157-GC5-000
COLLAR, CHAIN GUARD
$4.99¢2 496
1
#9
52171-KR6-000
WASHER, CHAIN SLIDER
$3.06¢1 529
1
#10
52175-GN1-000
SLIDER, CHAIN
$29.32¢14 663
1
#11
52180-GN1-000
SLIDER, CHAIN (UPPER)
$16.18¢8 090
1
#12
52200-GN1-A80ZA
SWINGARM SUB-ASSY., RR. *NH146M* (ACCURATE SILVER METALLIC)
$352.46¢176 232
1
#13
90111-187-000
BOLT, FLANGE (6MM)
$6.24¢3 122
1
#14
90121-GN1-000
BOLT, SWINGARM PIVOT
$33.28¢16 641
1
#15
90306-KF0-003
NUT, FLANGE (12MM) (FUSE RASHI)
$4.30¢2 151
1
#16
93901-25080
SCREW, TAPPING (5X8)
$1.07¢535
1
#17
94001-06000-0S
NUT, HEX. (6MM)
$1.54¢771
1
#17
94001-06200-0S
NUT, HEX. (6MM)
$1.54¢771
1
#18
96300-06018-00
BOLT, FLANGE (6X18)
$1.53¢765
1
#19
96300-06028-00
BOLT, FLANGE (6X28)
$1.75¢874
1
