HANDLEBAR TOP BRIDGE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

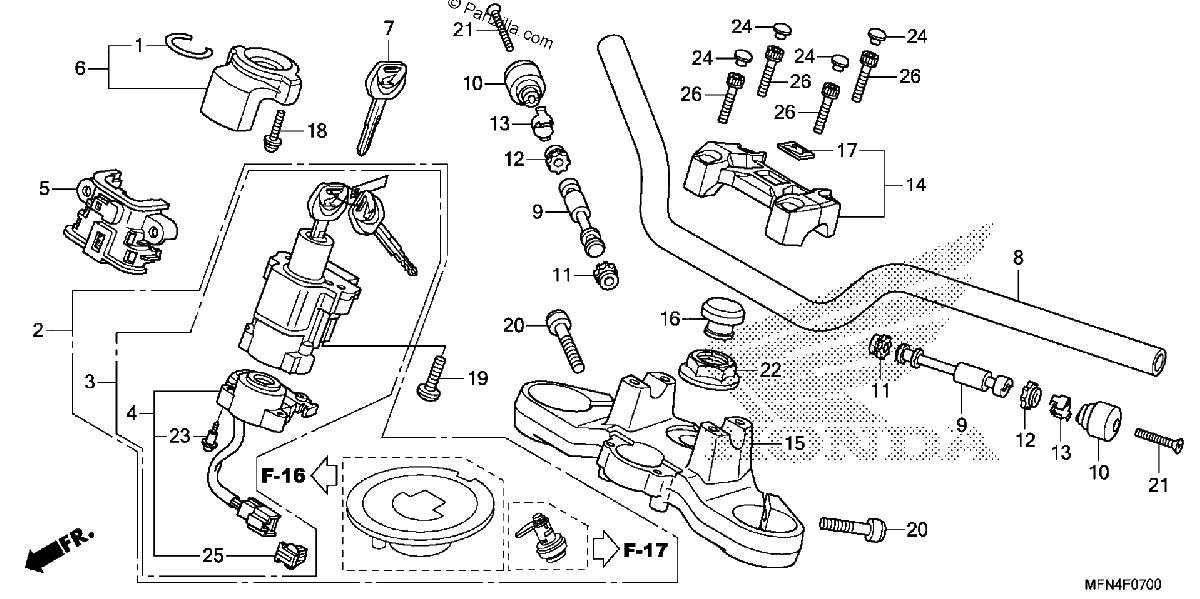

Diagrama de HANDLEBAR TOP BRIDGE

Repuestos

#1
30433-MBW-602
SEAL, IGNITION SWITCH
$3.65¢1 825
1
#2
35010-MFN-L60
LOCK SET
$535.54¢267 769
1
#2
35010-MFN-L61
LOCK SET
$535.54¢267 769
1
#3
35100-MFN-L61
SWITCH ASSY., COMBINATION LOCK
$254.00¢127 000
1
#4
35101-MFN-D00
BASE, CONTACT
$106.54¢53 269
1
#5
35105-MFN-D00
GUIDE, WIRE
$2.52¢1 263
1
#6
35106-MFN-L61
COVER, COMBINATION SWITCH
$101.70¢50 850
1
#7
35121-MAS-G01
KEY, BLANK
$14.79¢7 394
1
#8
53100-MFN-305
HANDLEBAR (COO)
$278.61¢139 306
1
#9
53104-KT7-010
WEIGHT B, HANDLE
$24.69¢12 344
1
#10
53104-MY9-751
WEIGHT, HANDLEBAR
$27.80¢13 900
1
#11
53106-MFN-D60
RUBBER A, HANDLE WEIGHT
$5.71¢2 856
1
#12
53107-MFN-D60
RUBBER B, HANDLE WEIGHT
$4.10¢2 050
1
#13
53108-KR3-940
RING, HANDLE WEIGHT SNAP
$6.81¢3 406
1
#14
53130-MFN-D60
HOLDER ASSY., HANDLE (UPPER)
$66.90¢33 450
1
#15
53230-MFN-D60
BRIDGE, FORK TOP
$275.55¢137 775
1
#16
53232-MJ4-670
CAP, STEERING STEM NUT
$15.70¢7 850
1
#17
86150-GFC-901
EMBLEM, PRODUCT (MARUI)
$3.65¢1 825
1
#18
90020-MBW-610
SCREW-WASHER (5X22)
$3.30¢1 650
1
#19
90107-MBG-000
BOLT, ONE-WAY (8MM)
$3.65¢1 825
1
#20
90160-MN0-000
BOLT, SOCKET (8X32)
$5.00¢2 500
1
#21
90191-MJ0-000
SCREW, OVAL (6X50)
$4.15¢2 075
1
#22
90304-MCF-000
NUT, STEERING STEM FLANGE
$13.89¢6 944
1
#23
91059-KY2-711
SCREW, TAPPING (3X16)
$3.65¢1 825
1
#24
91456-371-770
CAP, SOCKET BOLT
$4.20¢2 100
1
#25
91533-S04-003
CLIP, CONNECTOR (NATURAL)
$5.02¢2 512
1
#26
96600-08032-00
BOLT, SOCKET (8X32)
$2.66¢1 331
1
#26
96600-08032-10
BOLT, SOCKET (8X32)
$2.66¢1 331
1
