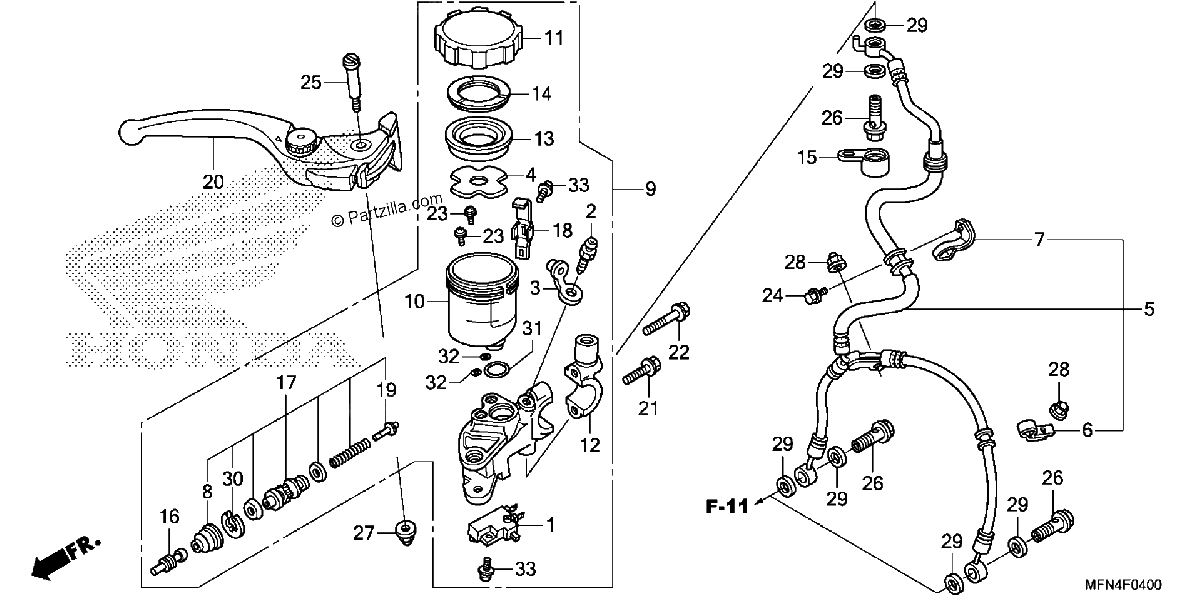

FRONT BRAKE MASTER CYLINDER CB1000R
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
SWITCH ASSY., FR. STOP
$16.25¢8 125
#2
SCREW, BLEEDER (NISSIN)
$8.85¢4 427
#3
CAP, BLEEDER
$5.63¢2 818
#4
FLOAT, RR. MASTER CYLINDER
$4.82¢2 409
#5
HOSE, FR. BRAKE
$95.98¢47 989
#6
CLAMP A, FR. BRAKE HOSE
$7.99¢3 996
#7
CLAMP B, FR. BRAKE HOSE
$7.49¢3 743
#8
BOOT
$14.06¢7 032
#9
MASTER CYLINDER SUB-ASSY., FR. BRAKE (COO)
$528.51¢264 253
#10
CUP, OIL
$16.46¢8 228
#11
CAP, OIL CUP
$19.68¢9 838
#12
HOLDER, MASTER CYLINDER
$13.25¢6 624
#13
DIAPHRAGM
$9.74¢4 870
#14
PLATE, DIAPHRAGM
$4.52¢2 260
#15
BOOT, MASTER CYLINDER
$5.45¢2 726
#16
ROD, PUSH
$15.69¢7 843
#17
MASTER CYLINDER SET
$61.86¢30 929
#18
PLATE, STOP
$6.08¢3 042
#19
GUIDE, SPRING
$5.26¢2 628
#20
LEVER ASSY., R. HANDLE (COO)
$56.13¢28 066
#21
BOLT, FLANGE (6X22)
$1.70¢851
#22
BOLT, FLANGE (6X32)
$2.96¢1 478
#23
SCREW, TRIPLE (4X11)
$3.68¢1 840
#24
BOLT, FLANGE (6X10)
$1.64¢822
#25
BOLT, HANDLE LEVER
$6.49¢3 243
#26
BOLT, OIL (10X22)
$8.18¢4 088
#27
NUT, CAP (6MM)
$2.54¢1 271
#28
NUT, CAP
$2.64¢1 322
#29
WASHER, OIL BOLT
$4.46¢2 231
#30
CIRCLIP
$2.68¢1 340
#31
O-RING (14.8X2.4)
$3.04¢1 518
#32
O-RING
$3.51¢1 754
#33
SCREW-WASHER (4X12)
$1.59¢793
#33
SCREW-WASHER (4X12)
$1.59¢793
