MUFFLER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

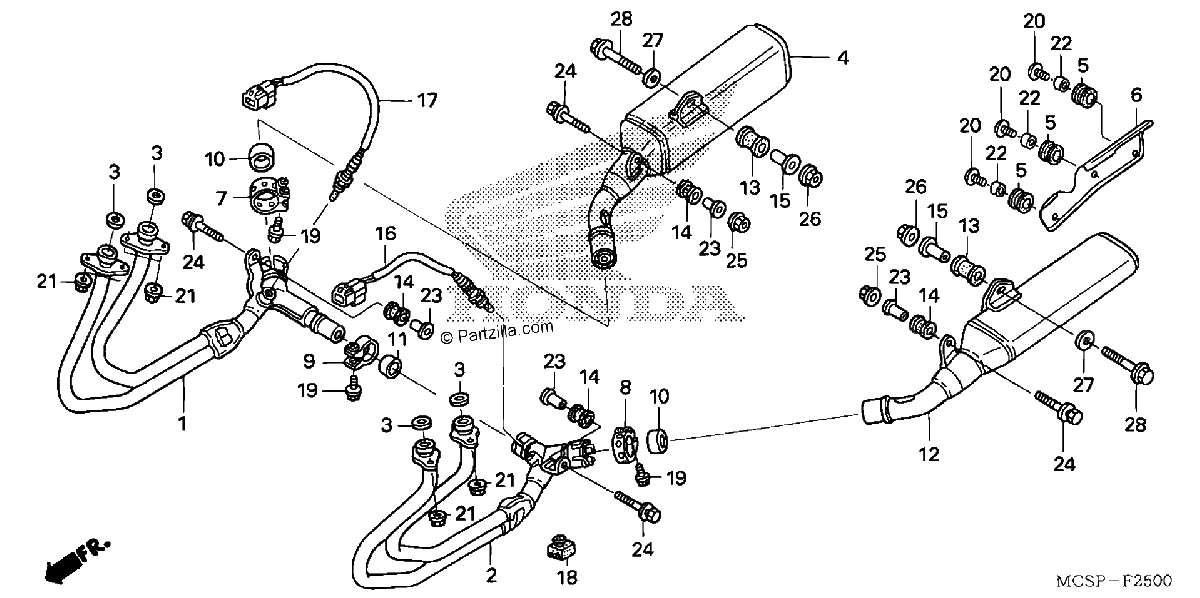

Diagrama de MUFFLER

Repuestos

#1
18150-MCS-G01
PIPE, R. EX.
$467.99¢233 996
1
#2
18170-MCS-G01
PIPE, L. EX.
$467.99¢233 996
1
#3
18291-MN4-920
GASKET, EX. PIPE
$5.92¢2 961
1
#4
18310-MCS-305
MUFFLER, R. (COO)
$1459.41¢729 704
1
#4
18310-MCS-D91
MUFFLER, R.
$1459.41¢729 704
1
#5
18316-KFT-620
RUBBER, PROTECTOR
$2.94¢1 472
1
#6
18345-MCS-760
COVER, MUFFLER
$174.51¢87 256
1
#7
18371-MAT-000
BAND, MUFFLER
$33.38¢16 692
1
#8
18372-MAT-000
BAND, MUFFLER
$35.47¢17 733
1
#9
18373-413-000
BAND, R. FR. MUFFLER
$46.11¢23 057
1
#10
18391-ML0-003
GASKET, MUFFLER
$31.29¢15 646
1
#11
18392-MK4-000
GASKET, MUFFLER
$14.70¢7 348
1
#12
18410-MCS-305
MUFFLER, L. (COO)
$1525.26¢762 628
1
#12
18410-MCS-D91
MUFFLER, L.
$1525.26¢762 628
1
#13
18421-MCS-760
RUBBER, MUFFLER MOUNTING
$11.71¢5 853
1
#14
18422-MCS-760
RUBBER, EX. PIPE MOUNTING
$12.95¢6 474
1
#15
18424-MN5-000
COLLAR, CHAMBER MOUNTING
$9.19¢4 594
1
#16
36531-MCS-D91
SENSOR, OXYGEN (1-3)
$268.06¢134 033
1
#17
36532-MCS-D91
SENSOR, OXYGEN (2-4)
$268.06¢134 033
1
#18
50505-MCS-760
RUBBER, STAND STOPPER
$19.57¢9 786
1
#19
90103-KCM-620
BOLT, FLANGE (8X35)
$1.86¢932
1
#20
90118-MR1-000
SCREW, PAN (6X14)
$3.45¢1 725
1
#21
90304-MM5-000
NUT, FLANGE (7MM)
$5.51¢2 754
1
#22
90325-197-000
COLLAR, RR. SPLASH GUARD
$4.04¢2 018
1
#23
90501-438-000
COLLAR (6X14.8)
$5.63¢2 818
1
#24
93404-06028-00
BOLT-WASHER (6X28)
$1.15¢575
1
#25
94050-06000
NUT, FLANGE (6MM)
$0.74¢368
1
#26
94050-08000
NUT, FLANGE (8MM)
$1.06¢529
1
#27
94103-08000
WASHER, PLAIN (8MM)
$0.77¢385
1
#28
96300-08045-00
BOLT, FLANGE (8X45)
$2.47¢1 236
1
