SEAT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

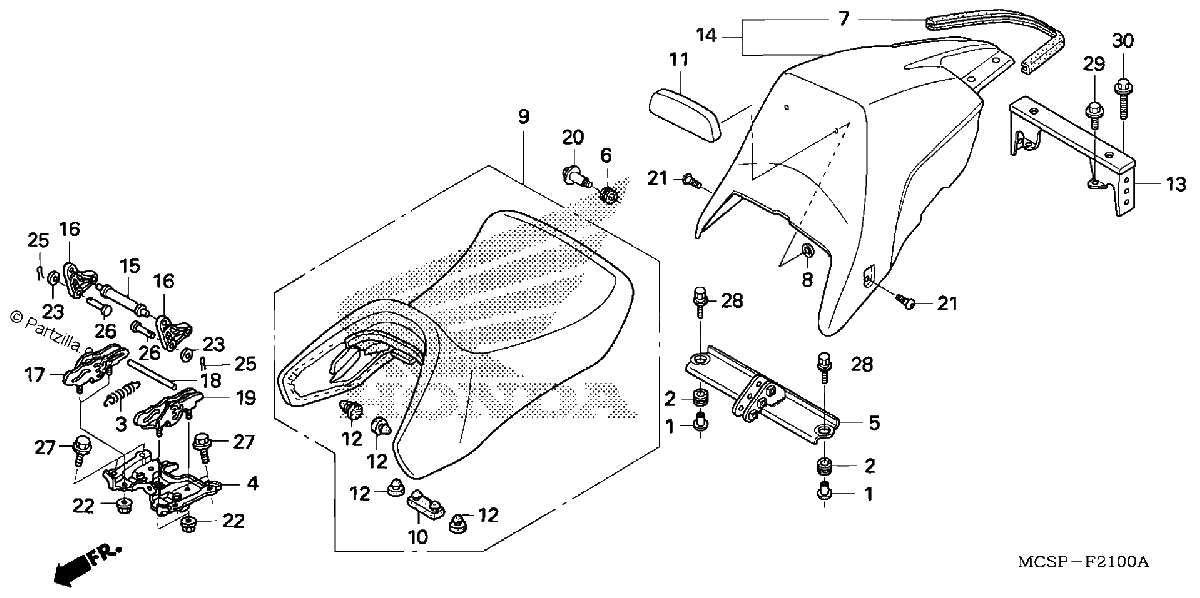

Diagrama de SEAT

Repuestos

#1
19343-MAL-600
COLLAR, THERMOSTAT STAY
$2.92¢1 461
1
#2
38119-MM8-000
GROMMET, HORN STAY
$5.62¢2 812
1
#3
46510-KJ9-000
SPRING B, BRAKE LOCK CABLE RETURN
$4.78¢2 392
1
#4
50215-MCS-G00
PLATE, FR. CROSS
$57.84¢28 922
1
#5
50270-MCS-A30
PLATE, CROSS
$41.74¢20 872
1
#6
50329-HA7-670
RUBBER, BATTERY BOX MOUNTING
$3.36¢1 679
1
#7
64121-MCW-D00
RUBBER, PROTECTOR
$11.26¢5 629
1
#8
64206-MJ0-000
NUT, SPEED (4MM)
$1.79¢897
1
#9
77100-MCS-A30
SEAT, MAIN
$406.57¢203 285
1
#10
77204-312-000
RUBBER, SEAT SETTING
$5.63¢2 818
1
#11
77210-KV3-830
SEAT ASSY., BACK
$35.83¢17 917
1
#12
77215-GC2-000
RUBBER B, SEAT STOPPER
$5.63¢2 818
1
#13
77224-MCS-A30
BRACKET, RR. COWL
$288.16¢144 078
1
#14
77410-MCS-A30ZA
COWL ASSY., SINGLE SEAT *NH138* (SHASTA WHITE)
$539.20¢269 600
1
#15
77531-MCS-G00
BAR, SEAT ADJUSTER
$24.49¢12 247
1
#16
77533-MCS-G00
GUIDE, SEAT ADJUSTER
$20.55¢10 275
1
#17
77534-MCS-G00
BRACKET, R. SEAT ADJUSTER
$22.49¢11 247
1
#18
77536-MCS-G00
PIN, SEAT ADJUSTER HOOK
$8.14¢4 071
1
#19
77537-MCS-G00
BRACKET, L. SEAT ADJUSTER
$22.49¢11 247
1
#20
90101-VA9-K40
BOLT, SPECIAL (6MM)
$5.05¢2 524
1
#21
90106-MBY-000
SCREW, SPECIAL (5X12)
$3.16¢1 581
1
#22
94050-06080
NUT, FLANGE (6MM)
$0.74¢368
1
#23
94101-06800
WASHER, PLAIN (6MM)
$0.77¢385
1
#25
94201-16120
PIN, SPLIT (1.6X12)
$1.23¢615
1
#26
95015-81000
PIN A, PILLION STEP
$2.62¢1 311
1
#27
95701-06010-08
BOLT, FLANGE (6X10)
$1.82¢909
1
#28
93404-06025-00
BOLT-WASHER (6X25)
$1.30¢650
1
#29
95701-08012-00
BOLT, FLANGE (8X12)
$1.33¢667
1
#30
95701-08055-00
BOLT, FLANGE (8X55)
$2.69¢1 346
1
