FRONT BRAKE HOSE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

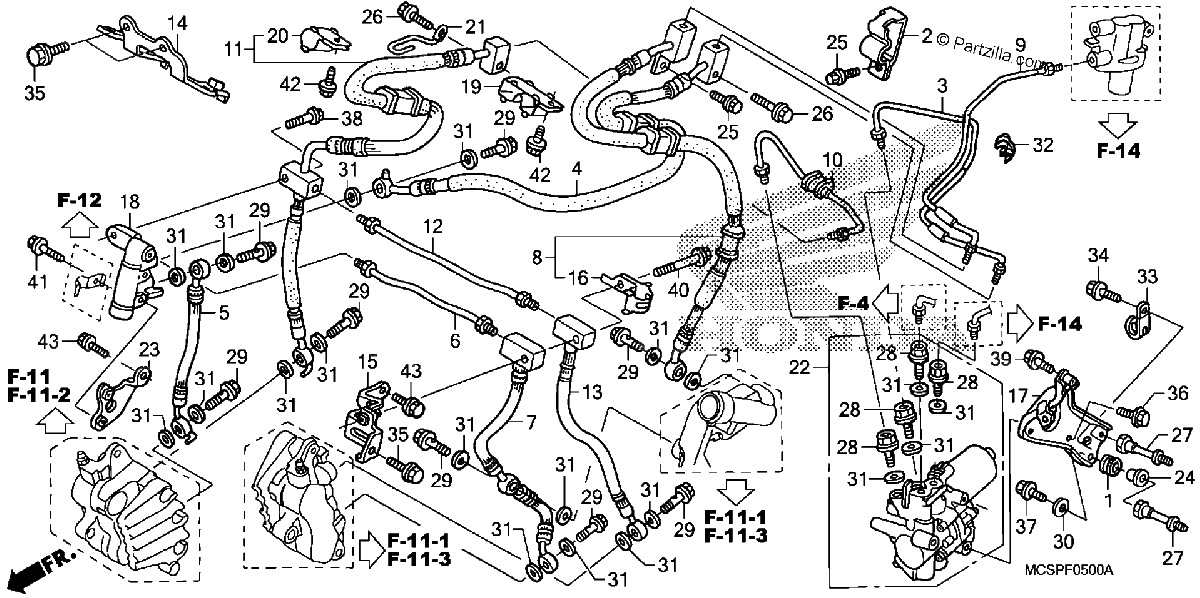

Diagrama de FRONT BRAKE HOSE

Repuestos

#1
17622-GB7-900
RUBBER, CUSHION
$5.35¢2 674
1
#2
43155-MCS-G00
CLAMP, RR. BRAKE PIPE
$6.43¢3 214
1
#3
43322-MCS-G02
PIPE B, SUB-BRAKE
$31.71¢15 853
1
#4
43323-MCS-G01
HOSE B, SUB-BRAKE
$58.03¢29 015
1
#5
43324-MCS-R11
HOSE C, SUB-BRAKE
$37.78¢18 889
1
#6
43325-MCS-G00
PIPE C, SUB-BRAKE
$8.68¢4 341
1
#7
43326-MCS-R11
HOSE D, SUB-BRAKE
$59.20¢29 601
1
#8
43330-MCS-G02
HOSE A, SECOND BRAKE MASTER CYLINDER
$87.53¢43 763
1
#9
43331-MCS-G02
PIPE A, SECOND BRAKE MASTER CYLINDER
$28.72¢14 358
1
#10
45127-MCS-G02
PIPE B, FR. BRAKE
$17.91¢8 953
1
#11
45128-MCS-R11
HOSE B, FR. BRAKE
$126.42¢63 210
1
#12
45129-MCS-G00
PIPE C, FR. BRAKE
$9.45¢4 727
1
#13
45131-MCS-R11
HOSE C, FR. BRAKE
$48.12¢24 058
1
#14
45156-MCS-760
STAY A, FR. BRAKE HOSE
$15.92¢7 958
1
#15
45157-MCS-G00
STAY B, FR. BRAKE HOSE
$11.47¢5 733
1
#16
45158-MCS-G00
CLAMP, FR. BRAKE HOSE
$7.13¢3 565
1
#17
45165-MCS-G00
BRACKET, FR. ABS MODULATOR
$44.72¢22 362
1
#18
46300-MCS-G02
VALVE ASSY., DELAY
$215.23¢107 617
1
#19
52115-MAT-000
CLAMP, BRAKE HOSE
$7.43¢3 714
1
#20
52115-ML8-670
CLAMP, BRAKE HOSE
$6.43¢3 214
1
#21
53121-MCS-G00
GUIDE, THROTTLE CABLE
$9.03¢4 514
1
#22
57100-MCA-971
MODULATOR ASSY., ABS
$1717.57¢858 786
1
#23
61103-MCS-G00
STAY, FR. FENDER
$12.26¢6 129
1
#24
84706-163-670
COLLAR, TAILLIGHT MOUNTING
$4.55¢2 277
1
#25
90103-MCS-G00
BOLT, FLANGE (6X12)
$1.53¢765
1
#26
90114-MCS-G00
BOLT, FLANGE (6X28)
$1.66¢828
1
#27
90135-MCS-G01
BOLT, MIDDLE COWL
$13.93¢6 963
1
#28
90145-MCA-971
BOLT, OIL (10X10.6)
$7.61¢3 807
1
#29
90145-MS9-612
BOLT, OIL (10X22)
$8.18¢4 088
1
#30
90525-428-900
WASHER, PLAIN (6MM)
$2.39¢1 196
1
#31
90545-300-000
WASHER, OIL BOLT
$4.46¢2 231
1
#32
90661-MCA-003
CLAMP, BRAKE PIPE
$2.54¢1 271
1
#33
91405-943-000
CLIP, CORD
$3.69¢1 846
1
#34
95701-06010-07
BOLT, FLANGE (6X10)
$1.92¢960
1
#35
95701-06014-07
BOLT, FLANGE (6X14)
$1.63¢816
1
#36
95701-06014-08
BOLT, FLANGE (6X14)
$1.92¢960
1
#37
95701-06016-07
BOLT, FLANGE (6X16)
$1.92¢960
1
#38
95701-06025-07
BOLT, FLANGE (6X25)
$2.13¢1 064
1
#39
95701-06040-07
BOLT, FLANGE (6X40)
$2.22¢1 110
1
#40
95701-06045-07
BOLT, FLANGE (6X45)
$2.56¢1 282
1
#41
95801-06038-07
BOLT, FLANGE (6X38)
$4.45¢2 225
1
#42
96001-06012-07
BOLT, FLANGE (6X12)
$2.13¢1 064
1
#43
96001-06016-07
BOLT, FLANGE (6X16)
$1.24¢621
1
