WATER PIPE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

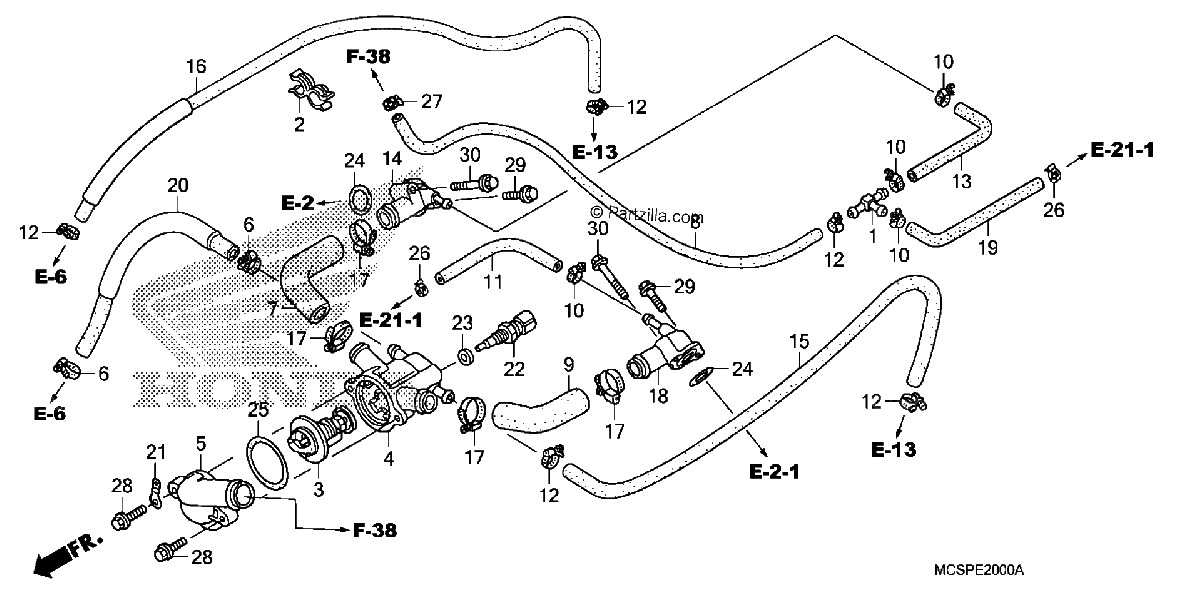

Diagrama de WATER PIPE

Repuestos

#1
16961-MK7-000
JOINT, FUEL TUBE
$23.16¢11 580
1
#2
17450-KY7-740
CLIP, TUBE
$3.51¢1 754
1
#3
19300-MBT-003
THERMOSTAT
$52.58¢26 289
1
#4
19310-MCS-D80
CASE, THERMOSTAT
$105.25¢52 624
1
#5
19315-MCS-010
COVER, THERMOSTAT
$26.98¢13 490
1
#6
19504-KT7-751
CLAMP, HOSE (25MM)
$6.41¢3 203
1
#7
19504-MCS-010
HOSE, R. WATER
$7.77¢3 887
1
#8
19505-MCS-010
HOSE A, WATER
$7.35¢3 674
1
#9
19506-MCS-010
HOSE, L. WATER
$7.77¢3 887
1
#10
19507-MAT-000
CLAMP, RADIATOR HOSE
$11.49¢5 744
1
#11
19507-MCS-000
HOSE B, WATER
$16.10¢8 050
1
#12
19507-MK4-620
CLAMP, BREATHER HOSE
$10.14¢5 071
1
#13
19508-MCS-010
HOSE C, WATER
$12.29¢6 147
1
#14
19510-MCS-000
JOINT, R. WATER
$27.22¢13 610
1
#15
19512-MCS-000
HOSE F, WATER
$24.15¢12 075
1
#16
19513-MCS-000
HOSE E, WATER
$31.29¢15 646
1
#17
19517-ML7-691
CLAMP, HOSE (22-29MM)
$12.41¢6 204
1
#18
19520-MCS-000
JOINT, L. WATER
$27.22¢13 610
1
#19
19522-MZ8-H00
HOSE B, IN. MANIFOLD
$10.61¢5 307
1
#20
19528-MCS-D80
HOSE G, WATER
$62.59¢31 297
1
#21
32152-MB3-000
CONNECTOR, GROUND
$2.30¢1 150
1
#22
37870-KRJ-901
SENSOR ASSY., WATER TEMPERATURE
$33.09¢16 543
1
#23
90454-MC7-000
WASHER, SPECIAL (12MM)
$3.09¢1 547
1
#24
91331-MCP-900
O-RING (21.2X2.4)
$3.50¢1 748
1
#25
91361-MCS-A10
O-RING (43.5X2)
$2.51¢1 254
1
#26
91406-SL4-931
CLAMP, FUEL HOSE (D10.5)
$5.44¢2 720
1
#27
95002-41250-08
CLAMP, TUBE (D12.5)
$2.77¢1 386
1
#28
96001-06022-00
BOLT, FLANGE (6X22)
$1.47¢736
1
#29
96001-06025-00
BOLT, FLANGE (6X25)
$2.48¢1 242
1
#30
96001-06040-00
BOLT, FLANGE (6X40)
$2.56¢1 282
1
