SIDE COVER REAR COWL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

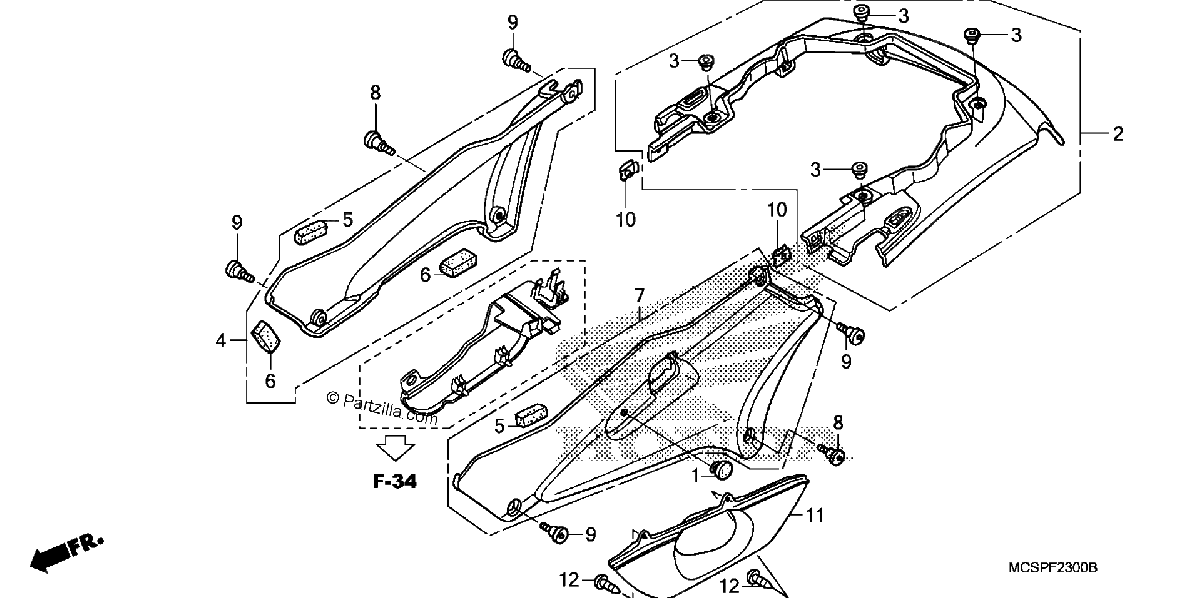

Diagrama de SIDE COVER REAR COWL

Repuestos

#1
50318-041-600
PLUG, HOLE
$2.50¢1 248
1
#2
77210-MCS-760ZD
COWL SET, RR. *NH138* (WL) (SHASTA WHITE)
$221.31¢110 653
1
#3
77223-MW3-670
COLLAR, RR. COWL SETTING
$3.86¢1 932
1
#4
83600-MCS-G01ZD
COVER, R. SIDE *NH138* (SHASTA WHITE)
$128.67¢64 337
1
#5
83601-MCS-G00
RUBBER, SIDE COVER
$2.66¢1 328
1
#6
83605-MCS-G00
SEAL, RUBBER
$2.21¢1 104
1
#7
83700-MCS-D90ZD
COVER, L. SIDE *NH138* (SHASTA WHITE)
$128.67¢64 337
1
#8
90106-MBL-610
SCREW, SPECIAL (6MM)
$2.64¢1 322
1
#9
90106-MBY-000
SCREW, SPECIAL (5X12)
$3.16¢1 581
1
#10
90677-KAN-961
NUT, CLIP (5MM)
$4.54¢2 271
1
#11
83460-MCS-D90
COVER, L. SIDE (LOWER)
$15.04¢7 521
1
#12
93903-24380
SCREW, TAPPING (4X12)
$1.07¢535
1
