WIRE HARNESS

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

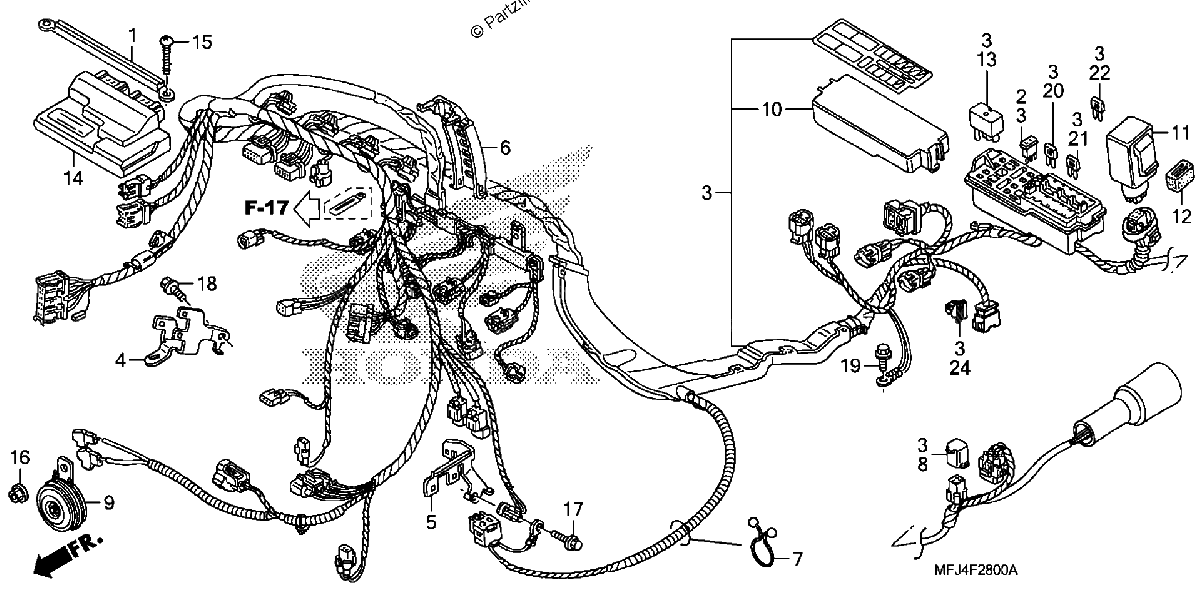

Diagrama de WIRE HARNESS

Repuestos

#1
17239-MFJ-D00
PLATE, PGM-FI UNIT
$3.06¢1 529
1
#2
31730-MAS-601
DIODE ASSY., THREE WAY (SUMITOMO)
$11.63¢5 813
1
#3
32100-MFJ-L30
WIRE HARNESS
No Disponible
1
#4
32121-MFJ-A50
BRACKET, R. FR. CONNECTOR
$4.68¢2 340
1
#5
32125-MFJ-D00
BRACKET, L. CONNECTOR
No Disponible
1
#6
32155-MFJ-D00
COVER, PROTECTOR B
$5.84¢2 921
1
#7
32171-GF9-621
LOCK, PURSE
$2.53¢1 265
1
#8
32606-GEV-761
CAP, DUMMY (4P) (RED)
$5.36¢2 680
1
#9
38110-MEE-013
HORN (HIGH)
$41.91¢20 953
1
#10
38252-MFJ-D01
COVER (UPPER)
$11.99¢5 997
1
#11
38301-MBW-D21
RELAY, TURN SIGNAL (DENSO)
$49.97¢24 984
1
#12
38306-GE8-008
SUSPENSION, TURN SIGNAL RELAY (DENSO)
$5.62¢2 812
1
#13
38501-MEL-003
RELAY ASSY., POWER (MICRO ISO 4P)
$5.19¢2 593
1
#14
38770-MFJ-L33
PGM-FI UNIT
$1402.14¢701 069
1
#15
90105-MFJ-D00
SCREW, TAPPING (4X18) (DELTA PT)
$2.43¢1 213
1
#16
94050-08070
NUT, FLANGE (8MM)
$1.77¢886
1
#17
96001-06012-00
BOLT, FLANGE (6X12)
$2.13¢1 064
1
#18
96001-06012-07
BOLT, FLANGE (6X12)
$2.13¢1 064
1
#19
96300-06012-00
BOLT, FLANGE (6X12)
$1.12¢558
1
#20
98200-41000
FUSE, MINI (10A)
$1.56¢782
1
#21
98200-42000
FUSE, MINI (20A)
$1.37¢684
1
