FRONT FORK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

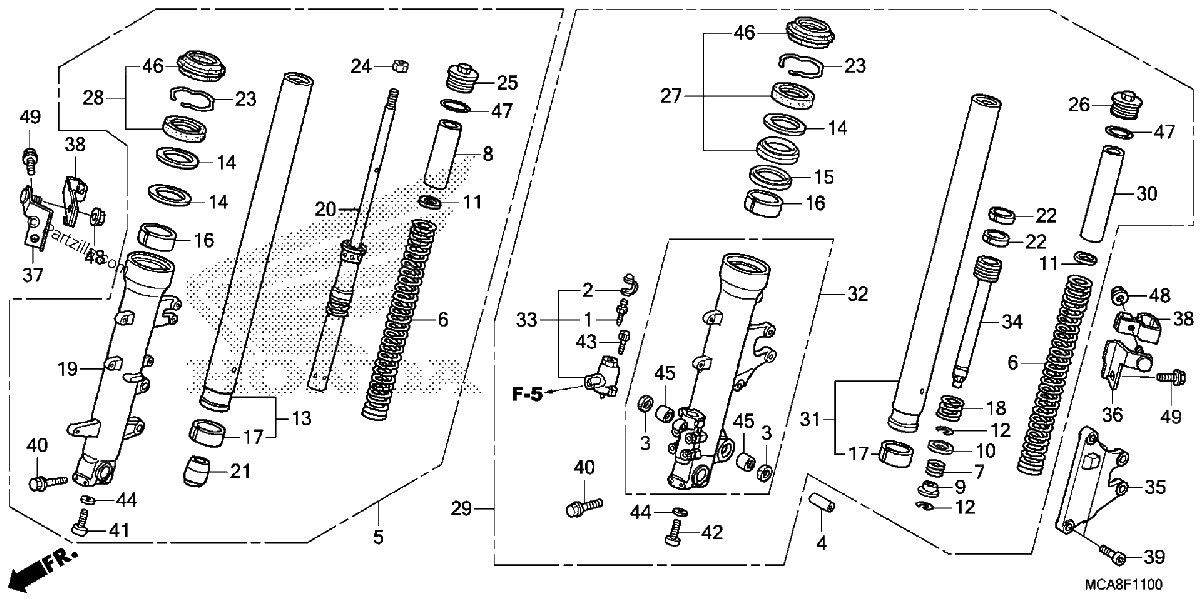

Diagrama de FRONT FORK

Repuestos

#1
43352-568-003
SCREW, BLEEDER (NISSIN)
$9.63¢4 813
1
#2
43353-461-771
CAP, BLEEDER
$6.13¢3 063
1
#3
45134-KB7-005
DUST SEAL, BRAKE CAM (NOK)
$3.65¢1 825
1
#4
45452-MZ2-000
COLLAR, PIVOT
$11.74¢5 869
1
#5
51400-MJG-305
FORK ASSY., R. FR. (COO) (SHOWA)
$1517.41¢758 706
1
#5
51400-MJK-305
FORK ASSY., R. FR. (COO) (SHOWA)
$1332.41¢666 206
1
#6
51401-MCA-A81
SPRING, FR. FORK
$19.24¢9 619
1
#7
51402-MB7-611
SPRING, OIL LOCK
$7.13¢3 563
1
#8
51402-MCA-003
COLLAR, SPRING
$6.29¢3 144
1
#9
51403-MCA-003
VALVE, OIL LOCK
$6.09¢3 044
1
#10
51404-MB7-611
SEAT, SPRING
$6.79¢3 394
1
#11
51405-KA4-711
SEAT, SPRING
$7.55¢3 775
1
#12
51405-MB7-611
RING, STOPPER
$3.65¢1 825
1
#13
51410-MCA-S41
PIPE, R. FR. FORK
$402.24¢201 119
1
#14
51412-KZ3-003
RING, BACK-UP
$11.03¢5 513
1
#15
51412-MCA-A61
RING, BACK-UP
$5.45¢2 725
1
#16
51414-MFR-671
BUSH, GUIDE
$25.18¢12 588
1
#17
51415-MFR-671
BUSH, SLIDER
$13.39¢6 694
1
#18
51416-KA4-831
SPRING, FR. REBOUND (34.3N/MM, 3.5KGF/MM) (SHOWA)
$18.21¢9 106
1
#19
51420-MJG-671
CASE, R. (LOWER) (SHOWA)
$619.29¢309 644
1
#19
51420-MJK-G31
CASE, R. (LOWER) (SHOWA)
$539.20¢269 600
1
#20
51430-MCA-013
DAMPER, FR.
$171.41¢85 706
1
#21
51432-MCA-003
PIECE, OIL LOCK
$12.31¢6 156
1
#22
51437-MCA-003
RING, PISTON
$9.22¢4 613
1
#23
51447-KZ3-003
RING, OIL SEAL STOPPER
$6.20¢3 100
1
#24
51451-MAJ-G41
NUT, HEX. (10MM)
$3.73¢1 863
1
#25
51454-MBR-003
BOLT, FR. FORK
$37.56¢18 781
1
#26
51454-MCA-003
BOLT, FR. FORK
$20.76¢10 381
1
#27
51490-MCA-S41
SEAL SET, FR. FORK
$41.19¢20 594
1
#28
51490-MFR-671
SEAL SET, FR. FORK
$34.85¢17 425
1
#29
51500-MJG-305
FORK ASSY., L. FR. (COO) (SHOWA)
$1517.41¢758 706
1
#29
51500-MJK-305
FORK ASSY., L. FR. (COO) (SHOWA)
$1332.41¢666 206
1
#30
51502-MCA-003
COLLAR B, SPRING
$6.29¢3 144
1
#31
51510-MCA-S41
PIPE, L. FR. FORK
$402.24¢201 119
1
#32
51520-MJG-671
CASE ASSY., L. (LOWER)
$619.29¢309 644
1
#32
51520-MJK-G31
CASE ASSY., L. (LOWER)
$539.20¢269 600
1
#33
51530-MJG-671
CASE, PLUNGER
$269.65¢134 825
1
#34
51540-MCA-003
PIPE, SEAT
$290.88¢145 438
1
#35
51711-MCA-A81
BRACKET, SECOND MASTER CYLINDER
$43.32¢21 662
1
#36
77493-MCA-S80
CLAMP, G SENSOR CORD (A)
$7.31¢3 656
1
#37
77494-MCA-S80
CLAMP, G SENSOR CORD (B)
$7.31¢3 656
1
#38
77496-MCA-S80
CLAMP, G SENSOR CORD (F)
$5.19¢2 594
1
#39
90104-MCA-A80
BOLT, TORX (8X26)
$2.60¢1 300
1
#40
90109-MR7-000
BOLT, FLANGE (8X45)
$5.99¢2 994
1
#41
90116-383-721
BOLT, SOCKET (8X27)
$6.21¢3 106
1
#42
90116-KV3-701
BOLT, SOCKET (8MM) (SHOWA)
$4.71¢2 356
1
#43
90118-MCA-003
BOLT, SOCKET (5X18)
$5.21¢2 606
1
#44
90544-283-000
WASHER, SPECIAL (8MM) (SHOWA)
$3.65¢1 825
1
#45
91101-KG8-003
BEARING, NEEDLE (14X20X12)
$49.61¢24 806
1
#46
91254-MCH-C11
DUST SEAL
$14.95¢7 475
1
#47
91356-MW0-003
O-RING (37.2X2.4) (SHOWA)
$3.65¢1 825
1
#48
94050-06070
NUT, FLANGE (6MM)
$1.86¢931
1
#49
90013-GHB-610
BOLT, FLANGE (6X12)
$2.99¢1 494
1
