MUFFLER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

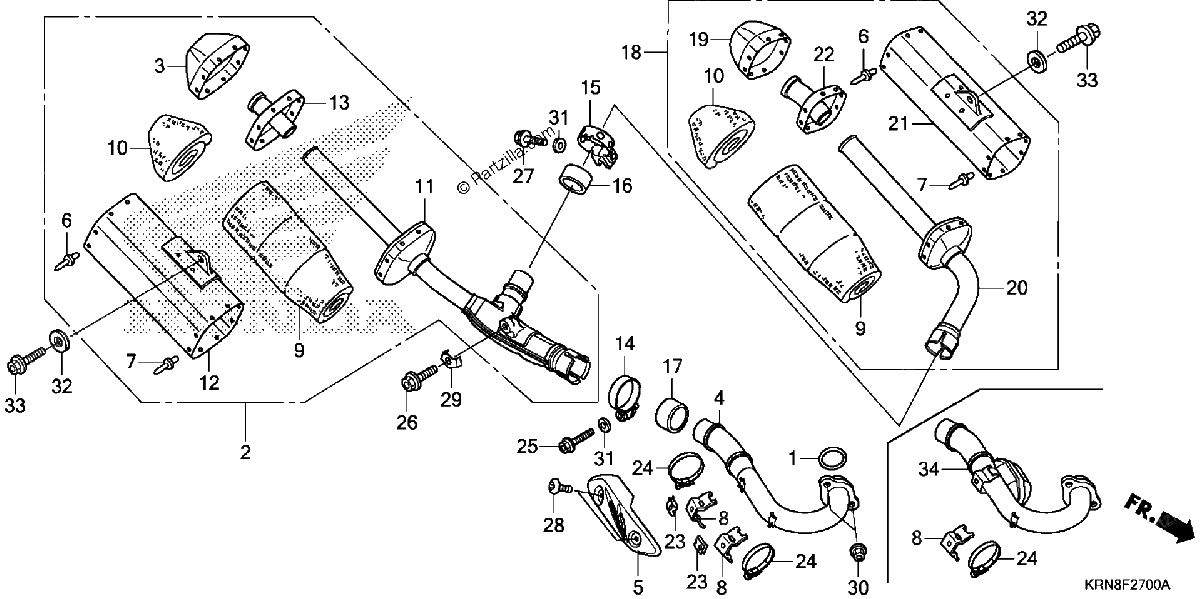

Diagrama de MUFFLER

Repuestos

#1
18291-MM5-860
GASKET, EX. PIPE
$5.76¢2 881
1
#2
18310-KRN-407
MUFFLER, R. (COO)
$887.03¢443 515
1
#3
18318-KRN-405
COVER, R. END (COO)
$153.33¢76 665
1
#5
18323-KRN-A80
PROTECTOR, EX. PIPE
$69.55¢34 776
1
#6
18324-MEB-670
RIVET, BLIND (4.8)
$1.26¢633
1
#7
18326-KRN-A00
RIVET, BLIND (3.2)
$1.47¢736
1
#8
18327-KRN-A80
STAY, EX. PIPE PROTECTOR
$7.56¢3 778
1
#9
18334-KRN-A80
PACK, GLASS WOOL CENTER
$141.92¢70 961
1
#10
18337-KRN-850
WOOL B, GLASS
$19.76¢9 878
1
#11
18360-KRN-B10
MUFFLER, R. FR.
$309.33¢154 664
1
#12
18361-KRN-A81
BODY, R. MUFFLER
$285.99¢142 997
1
#13
18362-KRN-B10
SEPARATOR (R)
$45.00¢22 500
1
#14
18373-KE8-000
BAND, Right MUFFLER
$30.59¢15 295
1
#14
18374-MG7-701
BAND, L MUFFLER
$30.59¢15 295
1
#15
18374-ML0-000
BAND, L. EX. PIPE
$35.78¢17 888
1
#16
18392-HA7-710
GASKET, EX.
$16.99¢8 493
1
#17
18392-MK4-000
GASKET, MUFFLER
$14.70¢7 348
1
#18
18410-KRN-407
MUFFLER, L. (COO)
$719.37¢359 685
1
#19
18418-KRN-309
COVER, L. END (COO)
$170.37¢85 186
1
#20
18460-KRN-B10
MUFFLER, L. FR.
$109.69¢54 843
1
#21
18461-KRN-A81
BODY, L. MUFFLER
$298.85¢149 425
1
#22
18462-KRN-B10
SEPARATOR (L)
$51.57¢25 783
1
#23
19508-KA3-710
NUT, SPRING (6MM)
$6.39¢3 197
1
#24
19509-MM5-003
CLAMP, RADIATOR HOSE
$14.60¢7 302
1
#25
90108-KZ4-J40
BOLT, FLANGE (8X40)
$2.53¢1 265
1
#26
90109-MEN-A30
BOLT (8X20)
$3.36¢1 679
1
#27
90124-MEB-770
BOLT, FLANGE (8X32)
$2.42¢1 208
1
#28
90170-MEB-670
BOLT, SPECIAL (6MM)
$2.13¢1 064
1
#29
90502-MEN-A70
WASHER, FR. MUFFLER STAY
$4.43¢2 214
1
#30
94050-08000
NUT, FLANGE (8MM)
$1.06¢529
1
#31
94102-08800
WASHER, PLAIN (8MM)
$1.12¢558
1
#32
94103-08000
WASHER, PLAIN (8MM)
$0.77¢385
1
#33
95701-08025-00
BOLT, FLANGE (8X25)
$2.12¢1 058
1
#34
18320-KRN-B10
PIPE, EX.
$395.83¢197 915
1
