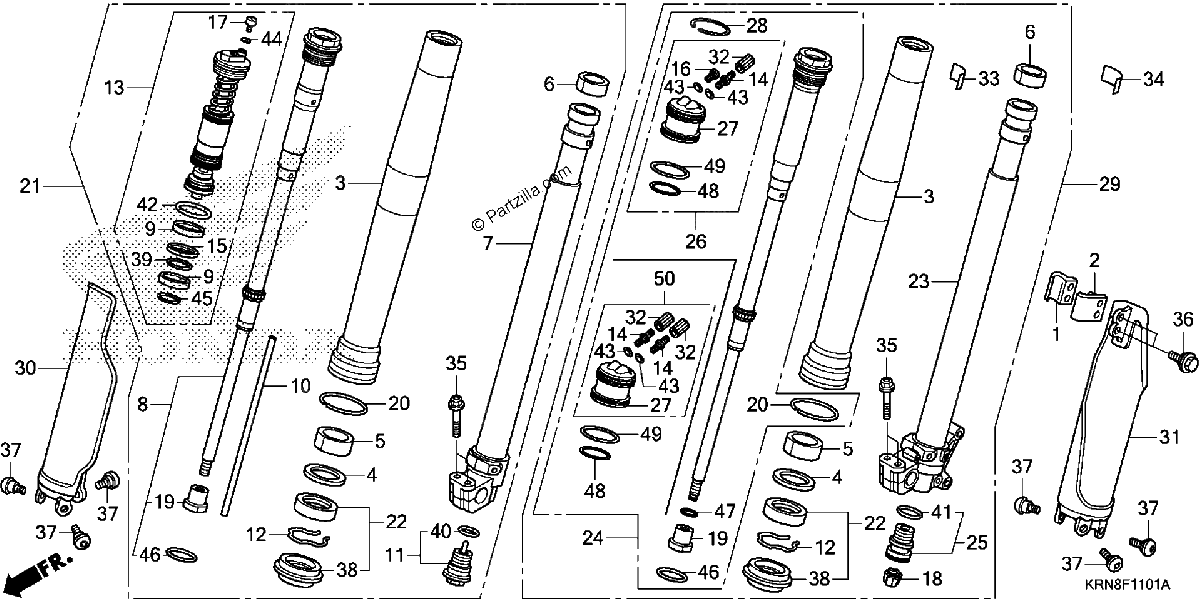

FRONT FORK 2
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
CLAMP A, FR. BRAKE HOSE
$7.08¢3 542
#2
CLAMP B, FR. BRAKE HOSE
$5.22¢2 610
#3
TUBE (OUTER)
$648.81¢324 403
#4
RING, BACK-UP
$9.91¢4 956
#5
BUSH, GUIDE
$13.98¢6 992
#6
BUSH, SLIDER
$13.75¢6 877
#7
PIPE, R. SLIDE
$535.34¢267 668
#8
DAMPER, FR.
$502.32¢251 160
#9
BUSH, SLIDER
$16.25¢8 125
#10
COLLAR, REBOUND NEEDLE
$12.65¢6 325
#11
BOLT, CENTER
$47.85¢23 926
#12
RING, OIL SEAL STOP
$4.17¢2 087
#13
BOLT ASSY., FR. FORK
$262.52¢131 261
#14
VALVE, AIR
$7.93¢3 968
#15
RING, PISTON
$11.86¢5 928
#17
BOLT, PLUG
$6.92¢3 461
#18
CAP, AIR VALVE
$2.33¢1 167
#19
NUT, LOCK
$13.97¢6 986
#20
RING, WEAR
$8.61¢4 307
#21
FORK SUB-ASSY., R. FR. (COO) (SHOWA)
$1601.56¢800 780
#22
SEAL SET, FR. FORK
$28.21¢14 105
#23
PIPE, L. SLIDE
$535.34¢267 668
#24
ROD, JOINT
$604.88¢302 439
#25
BOLT, SEALING
$39.07¢19 533
#27
CAP, CHAMBER
$64.42¢32 212
#28
RING, STOPPER
$8.08¢4 042
#29
FORK SUB-ASSY., L. FR. (COO) (SHOWA)
$1485.04¢742 520
#30
PROTECTOR, R. FR. FORK *NH196* (ROSS WHITE)
$92.11¢46 057
#31
PROTECTOR, L. FR. FORK *NH196* (ROSS WHITE)
$92.11¢46 057
#32
CAP, AIR VALVE
$6.45¢3 226
#33
LABEL, FR. FORK
$6.04¢3 019
#35
BOLT, FLANGE (8X40)
$2.53¢1 265
#36
BOLT, FLANGE (6MM)
$3.36¢1 679
#37
BOLT, PROTECTOR
$3.93¢1 967
#38
DUST SEAL
$13.57¢6 785
#39
O-RING (31.6X1.8)
$3.66¢1 829
#40
O-RING (22.1X1.9)
$2.98¢1 489
#41
O-RING (27.7X1.9)
$2.69¢1 346
#42
O-RING (42.2X2.4)
$6.59¢3 295
#43
O-RING (5.8X1.9)
$3.36¢1 679
#43
O-RING (5.8X1.9)
$3.36¢1 679
#44
O-RING (3.5X1.5)
$3.21¢1 604
#45
O-RING (35.5X2)
$2.84¢1 420
#46
O-RING (47.2X2.4)
$4.21¢2 105
#47
O-RING (9.5X1.5)
$2.45¢1 225
#48
O-RING (36.5X2.0)
$3.68¢1 840
#49
O-RING (39.5X2.0)
$4.58¢2 289
#50
CAP, CHAMBER
$82.91¢41 457
