LEFT CRANKCASE COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

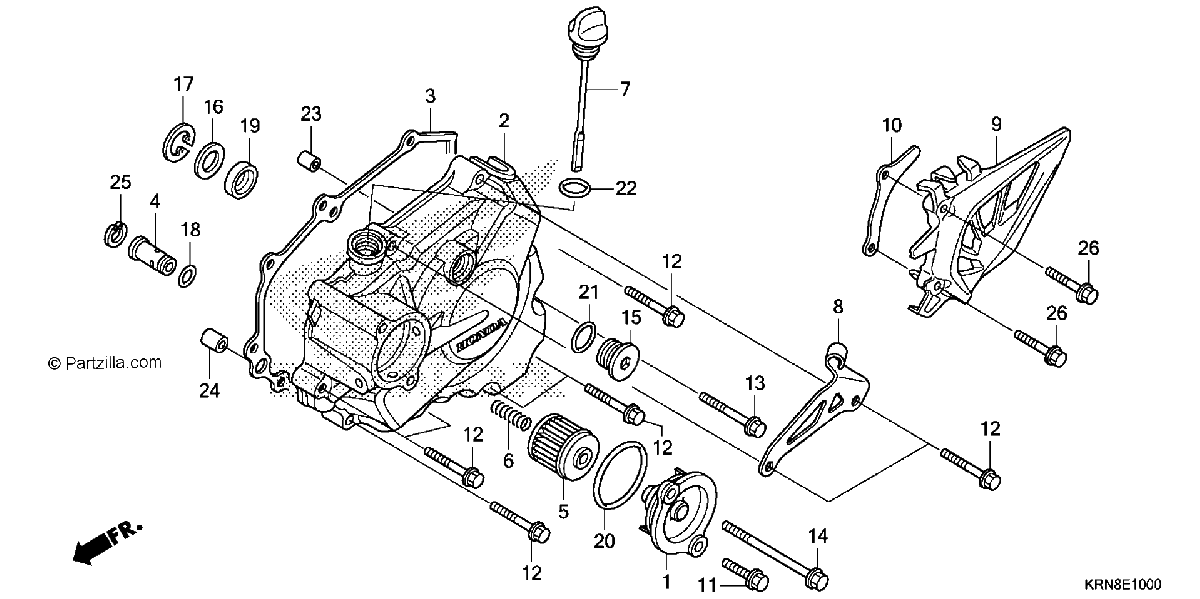

Diagrama de LEFT CRANKCASE COVER

Repuestos

#1
11333-KRN-A40
COVER, OIL FILTER
$55.07¢27 537
1
#2
11340-KRN-B10
COVER, L. CRANKCASE
$218.73¢109 365
1
#3
11395-KRN-A40
GASKET, L. COVER
$13.94¢6 969
1
#4
15220-MEB-770
VALVE ASSY., RELIEF
$25.39¢12 696
1
#5
15412-MEN-671
FILTER, ENGINE OIL
$8.38¢4 192
1
#6
15414-MEB-670
SPRING, OIL FILTER
$3.10¢1 553
1
#7
15650-KRN-A40
DIPSTICK, OIL
$16.07¢8 033
1
#8
22838-KRN-A80
RECEIVER, CLUTCH CABLE
$8.61¢4 307
1
#9
23810-MEN-A30
COVER, DRIVE SPROCKET
$26.65¢13 323
1
#10
23812-KRN-A40
GUIDE, DRIVE CHAIN
$13.27¢6 635
1
#11
90004-GHB-630
BOLT, FLANGE (6X16) (NSHF)
$3.91¢1 955
1
#12
90004-GHB-690
BOLT, FLANGE (6X32) (NSHF)
$4.30¢2 151
1
#13
90004-GHB-710
BOLT, FLANGE (6X40) (NSHF)
$4.54¢2 271
1
#14
90004-GHB-780
BOLT, FLANGE (6X75) (NSHF)
$3.47¢1 737
1
#15
90084-MN8-010
CAP (14MM)
$13.68¢6 842
1
#16
90403-KRN-A40
WASHER, PLAIN
$3.15¢1 576
1
#17
90601-KRN-A40
CIRCLIP (INNER)
$4.78¢2 392
1
#18
90751-GK1-003
O-RING (8.5X1.7)
$3.21¢1 604
1
#19
91204-MEN-A31
OIL SEAL (10X21X5)
$4.30¢2 151
1
#20
91302-PA9-003
O-RING (39.8X2.2) (ARAI)
$5.98¢2 990
1
#21
91303-377-000
O-RING (13.8X2.5)
$3.82¢1 909
1
#22
91307-KRN-A41
D-RING (14X3)
$3.36¢1 679
1
#23
94301-08140
PIN, DOWEL (8X14)
$2.66¢1 328
1
#24
94301-10160
PIN, DOWEL (10X16)
$2.69¢1 346
1
#25
94520-14000
CIRCLIP, INNER (14MM)
$1.09¢546
1
#26
90001-KRN-A90
BOLT, FLANGE (6X30)
$3.15¢1 576
1
