FUEL TANK FUEL PUMP

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

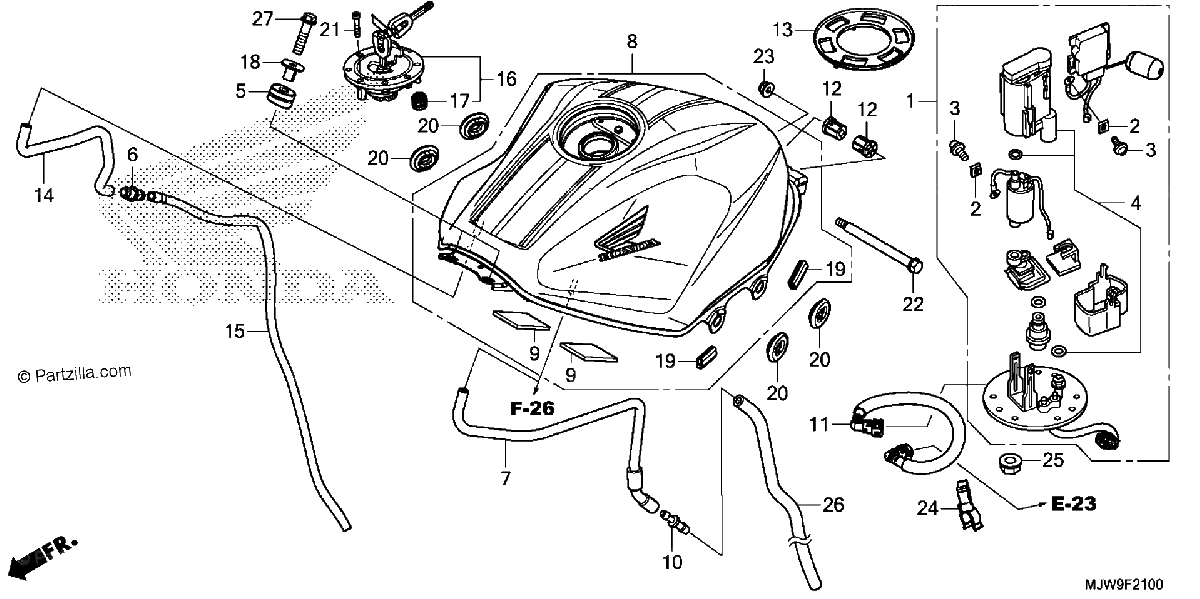

Diagrama de FUEL TANK FUEL PUMP

Repuestos

#1
16700-MJW-J01
PUMP UNIT, FUEL (MSDS)
$653.67¢326 836
1
#2
16711-MGS-D31
STOPPER
$5.73¢2 864
1
#3
16712-MGS-D31
SCREW (4X6.6)
$2.22¢1 110
1
#4
16730-MJW-J81
FILTER Assembly., FUEL
No Disponible
1
#5
17245-107-010
RUBBER, AIR CLEANER HOUSING MOUNTING
$3.36¢1 679
1
#6
17359-419-670
JOINT, BREATHER TUBE
$2.43¢1 213
1
#8
17500-MJW-J40ZA
TANK ASSY., FUEL (TYPE1) (WL)
$717.57¢358 783
1
#9
17528-KCZ-930
TAPE B, TANK GUARD
$4.42¢2 208
1
#11
17570-MJW-J01
HOSE, FUEL FEED
$55.88¢27 939
1
#12
17572-KPP-T00
CUSHION, RR. FUEL TANK PIVOT
$2.74¢1 368
1
#13
17574-MGS-D30
GASKET, BASE
$26.09¢13 047
1
#14
17590-MGZ-J00
TUBE, FUEL TANK DRAIN
$10.23¢5 118
1
#15
17591-MJW-J00
TUBE, FUEL TANK DRAIN
$6.93¢3 467
1
#16
17620-MJE-D01
CAP, FUEL FILLER
$262.82¢131 410
1
#17
17621-MGP-D61
SEAL, BREATHER
$5.73¢2 864
1
#18
61102-KTY-D30
COLLAR, RADIATOR MOUNTING
$4.47¢2 237
1
#19
64122-MCZ-000
RUBBER, PROTECTOR
$2.13¢1 064
1
#20
83551-300-000
GROMMET, AIR CLEANER HOUSING
$4.09¢2 047
1
#21
90120-MJE-D00
BOLT, SOCKET (4X25) (SUS)
$1.13¢564
1
#22
90135-MS2-000
BOLT, TANK HINGE
$6.95¢3 473
1
#23
90301-KGH-901
NUT, U (6MM) (FUJI SEIMITSU)
$1.64¢822
1
#24
91593-MGZ-J01
CLAMP, FUEL HOSE (BLACK)
$2.68¢1 340
1
#25
94050-06000
NUT, FLANGE (6MM)
$0.74¢368
1
#27
96001-06025-07
BOLT, FLANGE (6X25)
$1.59¢793
1
